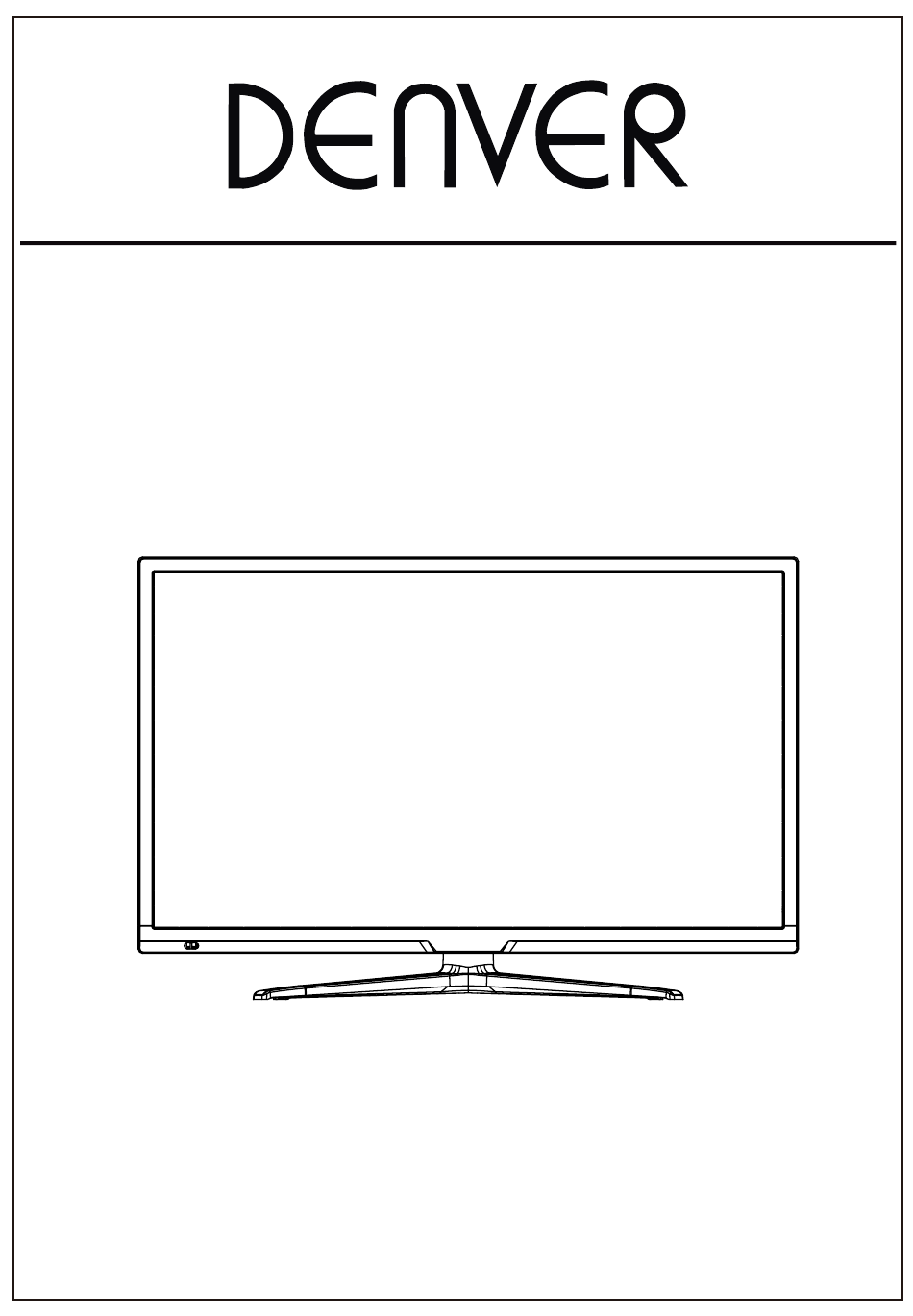

- Page 1 32”LED TV Model NO.: LED-3264DVBTS Instruction Manual...
-
Page 3: Table Of Contents
Contents Contents Safety Information Product Introduction Connections Remote Control AUTO INSTALLATION Basic Operation OSD Menu 11-19 1. Picture menu 2. Sound menu 13-16 3. Channel menu 17-18 4. Feature menu 5. Setup menu Multimedia Operation 20-22 EPG menu... -
Page 4: Safety Information
Safty Information Safety Information... - Page 5 Safety Information Safety Information I MPORTANT SAFETY INFORMATION (Continued) This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers connected with such use. Although this appliance has been carefully manufactured and rigorously checked prior leaving the factory, as with all electrical appliances it is possible for problems to develop.
- Page 6 Safety Information Safety Information I MPORTANT SAFETY INFORMATION (continued) Liquids spilt into the unit can cause serious damage. Switch the set OFF and disconnect the mains power supply, then consult a qualified service person before attempting to use the unit again. Do NOT remove the safety covers.
-
Page 7: Product Introduction
Product Introduction Product Introduction Front View LED indicator Remote Control window(keep clear) INPUT MENU VOL- VOL+ POWER The functions of the TV buttons are described below. INPUT: Press to select the source. MENU: Press to display the OSD menu, Press again to exit the menu. CH+/CH-: Press to scan through channels. -
Page 8: Connections
Connections Connections AC POWER IN HDMI1 HDMI2 HDMI3 COAX Headphone AC POWER IN: Connect to power. Headphone: Connect it to your headphone or other audio equipment. HDMI1/2/3: Connect it to the HDMI of DVD or other equipment. SCART: Connect them to the SCART video output terminal of DVD. Coax: Digital output to AV receiver. -
Page 9: Remote Control
Remote Control Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER(red button): Turn the TV on/standby. POWER MUTE MUTE: Press to mute the sound, press again or press... - Page 10 Remote Control Remote Control POWER MUTE PICTURE SOUND ASPECT SLEEP SUBTITLE CH.LIST TV/RADIO INPUT VOL +/- : Volume +/-. MENU EXIT / : Channel/Program +/-. : Play/pause program. : Stop program. : Fast reverse. : Fast forward. DISPLAY : Previous chapter. : Next chapter.
-
Page 11: Auto Installation
AUTO INSTALLATION AUTO INSTALLATION Setup 1:Set up the Home Mode Setup 2:Set up the Country Setup 3:Set up the Language... - Page 12 AUTO INSTALLATION AUTO INSTALLATION Setup 4:Set up the Auto Power Off Setup 5:Set up the TV Connection If select “Air” or “Cable”, it will show “Auto Search” in Setup 6 If select “Satellite”, it will show “Satellite setup” in Setup 6 Setup 6: Set up the Auto Search Setup 6: Set up the Satellite setup...
-
Page 13: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Input Source select Press INPUT button on the TV set or remote control to display the input source menu, and use CH+/- button on the TV set or... -
Page 14: Osd Menu
OSD Menu OSD Menu 1. Picture menu Description Picture Mode: Select your desired picture mode from Dynamic, Standard, Mild and User. Brightness: Adjust image black level. Contrast: Adjust image contrast. Sharpness: Adjust the sharpness(Gray and invalid in VGA/PC mode). Colour: Adjust image colour from black and white. Tint: Control the tint ( NTSC mode only). -
Page 15: Sound Menu
OSD Menu OSD Menu 2. Sound menu Description Sound Mode: Select your desired sound mode from Standard, Movie, Music, Speech and User. Bass: Adjust the level of the lower-pitched sounds. Treble: Adjust the level of the higherpitched sounds. Balance: Adjust the audio output between left and right speakers. Surround: Turn on/off the surround sound function. -
Page 16: Channel Menu
OSD Menu OSD Menu 3. Channel menu(In ATV/DTV mode) Channel Management: Enter the Channel management menu to edit the channels. Move Delete: Press RED button to sign the channels you want to delete, it will hint you when you exit. Lock: User must set the “Lock enable”(Feature-Lock- Lock enable) at ON to active this function. - Page 17 OSD Menu OSD Menu Country: Select the country. TV Connection: Select DTV type, you can choose Air(DVB-T), Cable(DVB-C), Satellite(DVB-S2), as you like. Auto Search: Press OK button to enter the Auto Search menu, select search mode, and press OK button to start auto search. Note: 1.
- Page 18 OSD Menu OSD Menu Satellite System Press button to select the “TV Conection” , and set it on “Satellite”. Select “Auto Search” as follow: Operations in satellite Auto Search menu are shown in the following table Value Option Mode Default,Network Search,Full Search Satellite 65 satellite for searching(3 user edit satellite) Service Type...
- Page 19 OSD Menu OSD Menu Satellite System Press button to select the “TV Conection” , and set it on “Satellite”. Press button to select the “Satellite System” , show as follow: Operations in Satellite List Menu are shown in the following table: KEY_UP use cursor to up use cursor to down...
-
Page 20: Feature Menu
OSD Menu OSD Menu 4. Feature menu Lock: This menu allows you to lock certain features of the television so that they can not be used or viewed. For example if you don’t want certain channels viewed by children or if the television is to be used in a hotel and you want certain channels be locked. - Page 21 OSD Menu OSD Menu Hotel Mode - Enter the Hotel Setting menu. Hotel Lock: Turn on/off the Hotel Lock function. Channel Lock: Disable the Channel menu in OSD. Picture Lock: Disable the Picture menu in OSD. Sound Lock: Disable the Sound menu in OSD. Feature Lock: Disable the Feature menu in OSD.
-
Page 22: Setup Menu
OSD Menu OSD Menu 5. SETUP menu OSD Timer: Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing. Auto SCART: The TV will be changed to SCART source automatically when you connect the TV to the SCART device. -
Page 23: Multimedia Operation
Multimedia Operation Multimedia Operation Basic Operation 1). Press the INPUT button on the remote control to display the input source menu, select Media source by the buttons, and press OK button to enter the Multimedia menu as shown below. 2). Insert USB device, and select the Media mode form Photo, Music, Movie and eBook, then you will find the name of the device display on the screen as shown below. - Page 24 Multimedia Operation Multimedia Operation 1. Photo Play the photo Press button to select the option on the table, and press OK button to change. Note: You could press OK button to display the option table when it disappears. Play/Pause the photo playing. Stop and exit the full screen program.
- Page 25 Multimedia Operation Multimedia Operation 3. Movie Play the movie Press button to select the option on the table, and press OK button to change. Note: You could press OK button to display the option table when it disappears. Play/Pause the movie playing. Stop and exit the full screen program.
-
Page 26: Epg Menu
EPG menu EPG menu Press EPG button on the remote control to display the EPG menu. EPG mode: Press RED button to change the EPG display mode. Daily mode: shows the information of the programs to be broadcasted in daily mode. Weekly mode: shows the information of the programs to be broadcasted in weekly mode. - Page 27 Technical Specifications Display technology LCD/TFT with LED-backlight Screen size, visible 32Inch Screen format 16:9 Resolution 1366*768 Minimum contrast ratio 800:1 Minimum brightness 200cd/m² Display colors 16.7M colors Minimum viewing angle 170(horizontal) /160 (vertical) Maximum response time 7 ms Picture repetition rate 50/60Hz Video color systems PAL / SECAM...
- Page 29 Additional information is available at the technical department of your city. ALL RIGHTS RESERVED COPYRIGHT DENVER ELECTRONICS A/S WWW.DENVER-ELECTRONICS.COM Importer: DENVER ELECTRONICS A/S...
