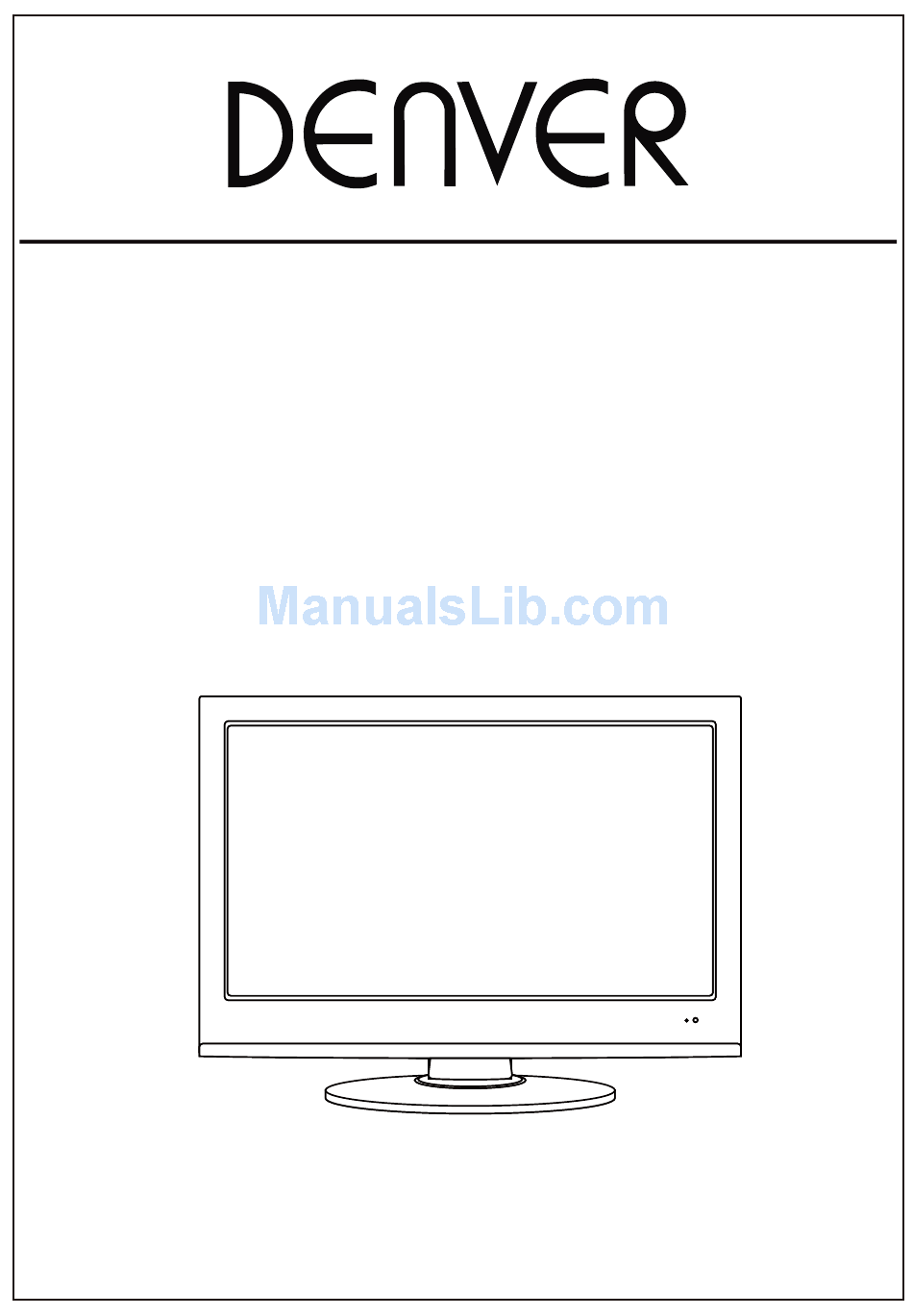

- Page 1 24”LED TV Model NO.: LED-2449 Instruction Manual...
-
Page 3: Table Of Contents
Contents Contents Caution Safety Information Accessories Technical Specification Product Introduction Front View Rear View Connections Remote Control Basic Operation OSD Menu 9-15 1. Channel menu 9-10 2. Picture menu 3. Sound menu 4. Time menu 5. OPTION menu 6. HOTEL mode Multimedia Operation 16-18 Simple Troubleshooting... -
Page 4: Caution
Caution Caution The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below . Electrical safety • The TV set should only be connected to a mains supply which matches that stated on the label on the mains adaptor. -
Page 6: Accessories
Accessories & Technical Specification Accessories INPUT CH.list PICTURE SOUND SLEEP DISPLAY VOL+ MUTE VOL- EXIT MENU ROOT TV/TXT HOLD NICAM/A2 SLOW ZOOM LANGUAGE SUBPAGE INDEX SIZE REVEAL SUBTITLE REPEAT GOTO User’s Manual Remote control Mains adapter Mains cable * Note: The configuration of the components may look different from the following illustration Technical Specification - TV-System PAL BG/DK/I SECAM BG/DK... -
Page 7: Product Introduction
Product Introduction Product Introduction Front View LED Indicator Remote Control Window (keep clear) 1). (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press POWER to turn on and off. Indicator on(Red) Standby mode Indicator on Power on mode The effective receiving range for the signal is 5-8 metres from the front of the remote control window, and 30... -
Page 8: Connections
Connections Connections SCART POWER: Connect to the mains adaptor. USB:Connect to USB device for multimedia HDMI: Connect it to the HDMI of DVD or other equipment. VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC. PC-IN: Connect it to the audio output terminal of PC. -
Page 9: Remote Control
Remote Control Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. INPUT POWER : Turn on/standby the TV. INPUT : Source select. - Page 10 Remote Control Remote Control INPUT CH.list PICTURE SOUND SLEEP DISPLAY VOL+ MUTE VOL- ROOT: Come back to the home page. EXIT MENU : Play/Pause program : Stop program : fast reverse : fast forward : previous chapter : next chapter FAV: Display the favourite channel list.
-
Page 11: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply with a power cord and an adaptor. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off theTV Press POWER button on the TV or remote control. Input Source Input Source select Press INPUT button on the TV set or remote control to display input... -
Page 12: Osd Menu
OSD Menu OSD Menu 1. CHANNEL menu Description Auto Tuning Press OK button to start auto tuning. You could press MENU/EXIT button to exit the process of tuning, there will be a hint on the screen, and you should press button to confirm, or press button to cancel the operation. - Page 13 OSD Menu OSD Menu Programme Edit Press OK button to enter the Programme Edit menu as the following picture. Delete: Select a channel and press RED button to delete. Swap: Select a channel, and press YELLOW button to highlight the channel, then you can use buttons to select the channel you want to be swapped, press OK button to confirm.
-
Page 14: Picture Menu
OSD Menu OSD Menu 2. PICTURE menu Description Picture Mode: Choose from Standard, Dynamic, User and Mild. Note: Contrast, Brightness, Color and sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings. Contrast: Controls the difference between the brightest and darkest regions of the picture. -
Page 15: Sound Menu
OSD Menu OSD Menu 3. SOUND menu Description Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User. Treble(Can be adjusted when the sound mode is User): Controls the relative intensity of higher pitched sounds. Bass (Can be adjusted when the sound mode is set to User): Controls the relative intensity of lower pitched sounds. -
Page 16: Time Menu
OSD Menu OSD Menu 4. TIME menu Description Clock: Use the buttons to select the position, and use the buttons to set the time. Off Time: Press OK button to enter the submenu, you could set the time when the TV set will be turned off automatically, you could also set the frequency. -
Page 17: Option Menu
OSD Menu OSD Menu 5. OPTION menu Description OSD Language: Allows you to select menu language. TTX Language: Allows you to select teletext language. OSD Duration: Allows you to select the time for the OSD display on the screen. Blue Screen: Turn on/off the blue screen function when there’s no signal. Restore Dafault: Press OK button to restore factory default. -
Page 18: Hotel Mode
OSD Menu OSD Menu 6.HOTEL mode Press MENU and enter 2580 for hotel menu Hotel Lock Lock Channel Set Source Channel Number Picture Lock Key Lock Max Volume Source Lock Clear Lock DataBase Export Database Import Hotel Lock: Press Left/right and set Hotel Lock On/Off. When Hotel Lock is ON, Lock Channel-Source Lock can be used as below. -
Page 19: Multimedia Operation
Multimedia Operation Multimedia Operation Basic Operation 1). Press the INPUT button on the remote control to display the input source menu, select Media source by the buttons, and press OK button to enter the Multimedia menu seen below. Input Source SCART YPBPR HDMI... - Page 20 Multimedia Operation Multimedia Operation 1. Photo Play the photo Press button to select the option on the table, and press OK button to change. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Playlist: Display the playlist on the screen, and you can select the photo by button, and press OK button to program.
-
Page 21: Multimedia Operation
Multimedia Operation Multimedia Operation 3. Movie Play the movie Press button to select the option on the table, and press OK button to change. Repeat ALL: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Set A-B: Select and play the preferable paragraph of the program by seting A and B at the beginning and end, and there will be a sign on the left screen, press OK button again to cancel. -
Page 22: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV. - Page 24 Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly. Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below.
