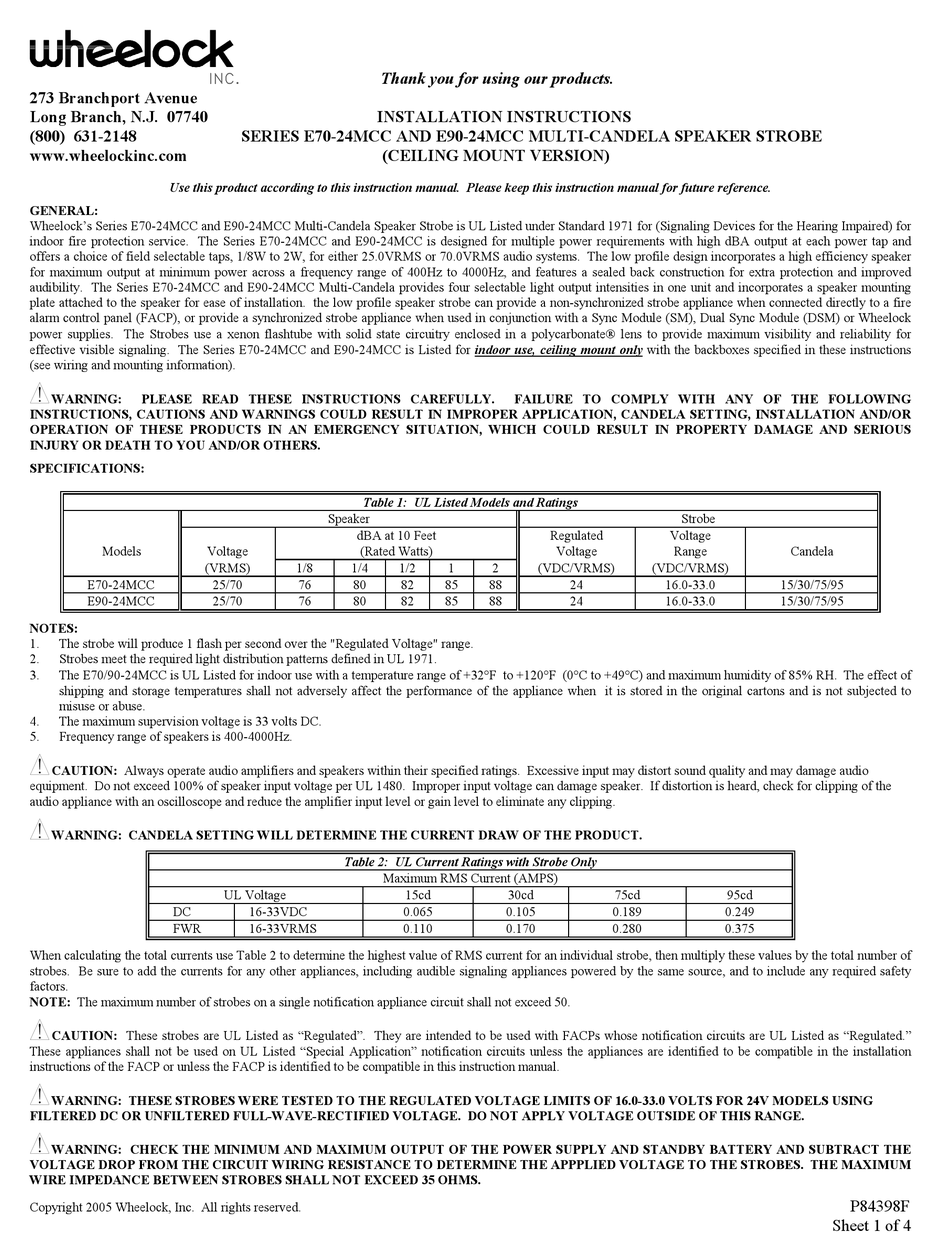

Wheelock E70-24MCC Installation Instructions

Series e70-24mcc and e90-24mcc multi-candela speaker strobe (ceiling mount version)

Advertisement

273 Branchport Avenue
Long Branch, N.J. 07740
(800) 631-2148
www.wheelockinc.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.

GENERAL:

Wheelock's Series E70-24MCC and E90-24MCC Multi-Candela Speaker Strobe is UL Listed under Standard 1971 for (Signaling Devices for the Hearing Impaired) for
indoor fire protection service. The Series E70-24MCC and E90-24MCC is designed for multiple power requirements with high dBA output at each power tap and
offers a choice of field selectable taps, 1/8W to 2W, for either 25.0VRMS or 70.0VRMS audio systems. The low profile design incorporates a high efficiency speaker
for maximum output at minimum power across a frequency range of 400Hz to 4000Hz, and features a sealed back construction for extra protection and improved
audibility. The Series E70-24MCC and E90-24MCC Multi-Candela provides four selectable light output intensities in one unit and incorporates a speaker mounting
plate attached to the speaker for ease of installation. the low profile speaker strobe can provide a non-synchronized strobe appliance when connected directly to a fire
alarm control panel (FACP), or provide a synchronized strobe appliance when used in conjunction with a Sync Module (SM), Dual Sync Module (DSM) or Wheelock
power supplies. The Strobes use a xenon flashtube with solid state circuitry enclosed in a polycarbonate lens to provide maximum visibility and reliability for
effective visible signaling. The Series E70-24MCC and E90-24MCC is Listed for indoor use, ceiling mount only with the backboxes specified in these instructions
(see wiring and mounting information).
WARNING:
PLEASE READ THESE INSTRUCTIONS CAREFULLY.
INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION, CANDELA SETTING, INSTALLATION AND/OR
OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS
INJURY OR DEATH TO YOU AND/OR OTHERS.

SPECIFICATIONS:

Models
Voltage
(VRMS)
E70-24MCC
E90-24MCC
NOTES:
1.
The strobe will produce 1 flash per second over the "Regulated Voltage" range.
2.
Strobes meet the required light distribution patterns defined in UL 1971.
3.
The E70/90-24MCC is UL Listed for indoor use with a temperature range of +32°F to +120°F (0°C to +49°C) and maximum humidity of 85% RH. The effect of
shipping and storage temperatures shall not adversely affect the performance of the appliance when it is stored in the original cartons and is not subjected to
misuse or abuse.
4.
The maximum supervision voltage is 33 volts DC.
5.
Frequency range of speakers is 400-4000Hz.
CAUTION: Always operate audio amplifiers and speakers within their specified ratings. Excessive input may distort sound quality and may damage audio
equipment. Do not exceed 100% of speaker input voltage per UL 1480. Improper input voltage can damage speaker. If distortion is heard, check for clipping of the
audio appliance with an oscilloscope and reduce the amplifier input level or gain level to eliminate any clipping.
WARNING: CANDELA SETTING WILL DETERMINE THE CURRENT DRAW OF THE PRODUCT.
DC
FWR
When calculating the total currents use Table 2 to determine the highest value of RMS current for an individual strobe, then multiply these values by the total number of
strobes. Be sure to add the currents for any other appliances, including audible signaling appliances powered by the same source, and to include any required safety
factors.
NOTE: The maximum number of strobes on a single notification appliance circuit shall not exceed 50.
CAUTION: These strobes are UL Listed as "Regulated". They are intended to be used with FACPs whose notification circuits are UL Listed as "Regulated."
These appliances shall not be used on UL Listed "Special Application" notification circuits unless the appliances are identified to be compatible in the installation
instructions of the FACP or unless the FACP is identified to be compatible in this instruction manual.
WARNING: THESE STROBES WERE TESTED TO THE REGULATED VOLTAGE LIMITS OF 16.0-33.0 VOLTS FOR 24V MODELS USING
FILTERED DC OR UNFILTERED FULL-WAVE-RECTIFIED VOLTAGE. DO NOT APPLY VOLTAGE OUTSIDE OF THIS RANGE.
WARNING: CHECK THE MINIMUM AND MAXIMUM OUTPUT OF THE POWER SUPPLY AND STANDBY BATTERY AND SUBTRACT THE
VOLTAGE DROP FROM THE CIRCUIT WIRING RESISTANCE TO DETERMINE THE APPPLIED VOLTAGE TO THE STROBES. THE MAXIMUM
WIRE IMPEDANCE BETWEEN STROBES SHALL NOT EXCEED 35 OHMS.
Copyright 2005 Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
SERIES E70-24MCC AND E90-24MCC MULTI-CANDELA SPEAKER STROBE
(CEILING MOUNT VERSION)
Table 1: UL Listed Models and Ratings
Speaker
dBA at 10 Feet
(Rated Watts)
1/8
1/4
25/70
76
80
25/70
76
80
Table 2: UL Current Ratings with Strobe Only
Maximum RMS Current (AMPS)
UL Voltage
16-33VDC
16-33VRMS
FAILURE TO COMPLY WITH ANY OF THE FOLLOWING
Regulated
Voltage
1/2
1
2
(VDC/VRMS)
82
85
88
24
82
85
88
24
15cd
30cd
0.065
0.105
0.110
0.170
Strobe
Voltage
Range
(VDC/VRMS)
16.0-33.0
15/30/75/95
16.0-33.0
15/30/75/95
75cd
95cd
0.189
0.249
0.280
0.375
Candela
P84398F
Sheet 1 of 4
