Wheelock SSB-8 Installation Instructions

273 Branchport Avenue
Long Branch, N.J. 07740
(800) 631-2148
www.wheelockinc.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
The SSB-8 is a speaker support bridge for 24" acoustical tile ceilings. It fits all Wheelock 8" speaker assemblies with or without
round backboxes.
: All and
NOTE CAUTIONS
SPEAKER SUPPORT BRIDGE:

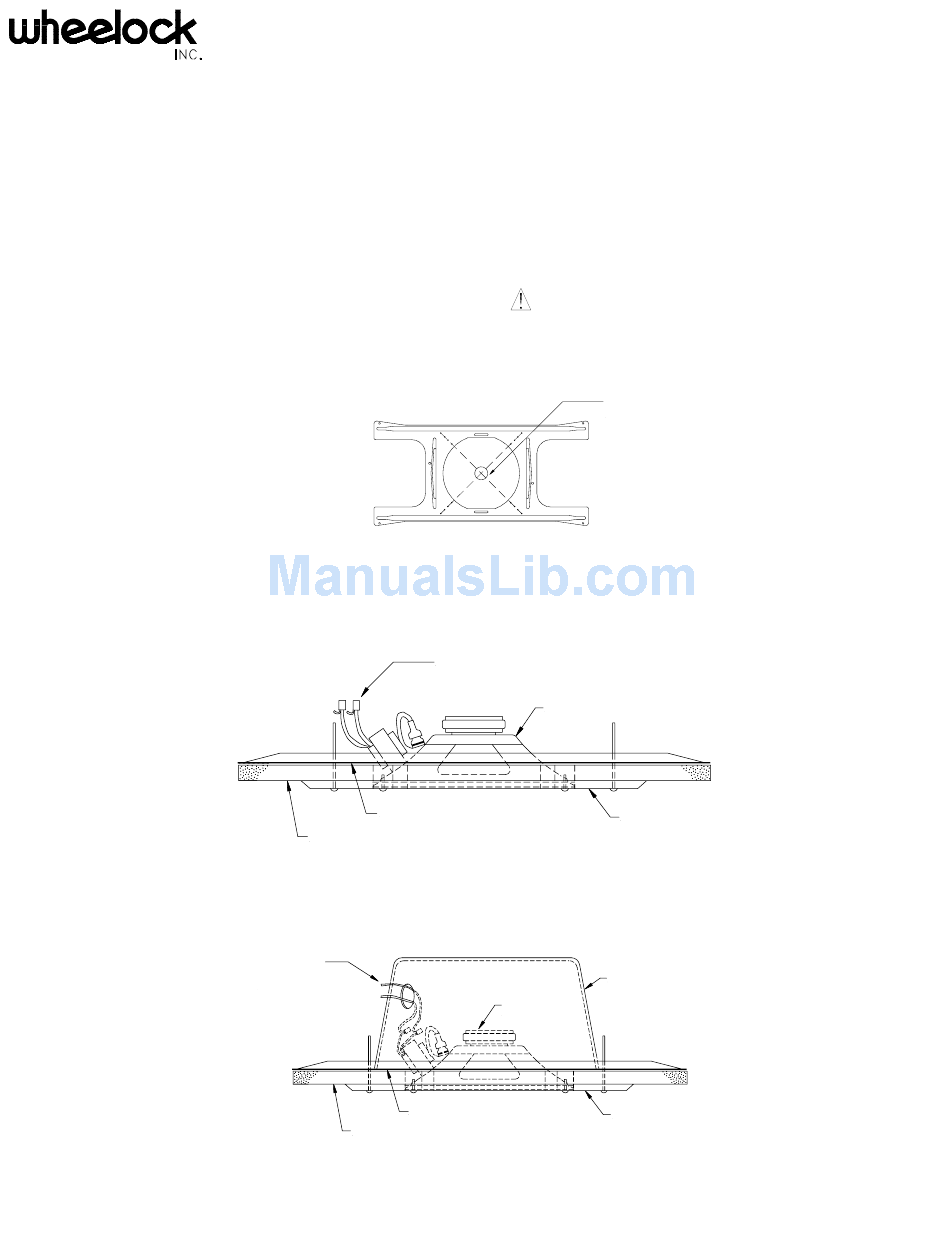

1. Use SSB-8 as template for cutting ceiling tile as per Figure 1.
SPEAKER WITH ROUND BAFFLE (FIGURE 2):
1. Secure Speaker Assembly with hardware provided as shown in Figure 2.
SPEAKER WITH ROUND BAFFLE AND ROUND BACKBOX (FIGURE 3):
1. Secure Speaker Assembly with hardware provided as shown in Figure 3.
Copyright 1998, 2003 Wheelock, Inc. All rights reserved.
Thank you for using our products.
SPEAKER SUPPORT BRIDGE
INSTALLATION INSTRUCTIONS
are identified by the symbol
WARNINGS
SSB-8 IN STANDARD POSITION
CEILING TILE
CONNECTION
TO SPEAKER LINE
(CIRCUIT, ZONE)
CEILING TILE
(SSB-8)
. All warnings are printed in bold capital letters.
Figure 1.
CONNECTION TO SPEAKER LINE (CIRCUIT, ZONE)
SPEAKER ASSEMBLY
Figure 2.
SPEAKER
ASSEMBLY
SSB-8 IN STANDARD POSITION
Figure 3.
CEILING TILE
CENTER
CEILING BAFFLE
BACKBOX
CEILING BAFFLE
P81490 E
Sheet 1 of 2
