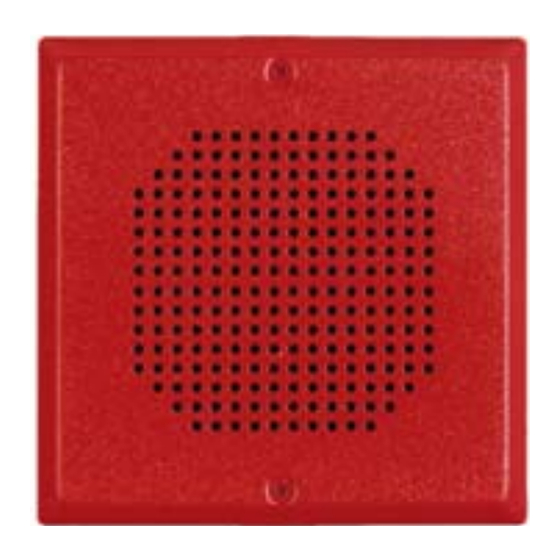

Description

Wheelock's Series E Speakers and Speaker Strobes are
designed to meet the critical needs of the life safety
industry for effective emergency voice communications
and tone signaling. Series E speakers provide high audio
output with clear audibility at minimum wattage. They
offer system designers the high quality, high performance
and low installed cost required for fire protection systems.
All models flush mount to electrical backboxes and are
equipped with a blocking capacitor for DC supervision of
audio lines and IN/OUT wiring terminals for fast installation
using #12 to #18 AWG wiring.
Series E Speaker Strobes are ULC Listed for indoor use,
ceiling and wall mount, and use a Xenon flashtube with
solid state circuitry enclosed in a rugged Lexan® lens to
provide maximum reliability for effective visible signaling.

Features

Approvals include: CAN/ULC-S541-99 for speaker appliances and
CAN/ULC-S526-02 for visual appliances.
High efficiency speakers designed for maximum output at minimum
wattage across a frequency range of 400 to 4000 Hz
25 or 70 VRMS models with field selectable taps for operation from 1/8
watt up to 2 watts in 3 dB steps
Series E Low Profile Speaker Strobe models are available with 15 candela
strobe featuring a wide Listed Voltage range of 20-31 VDC with low current
draw and low temperature compensation to reduce power consumption
and wiring costs
All audio and strobe inputs ay be supervised with standard reverse polarity
supervision from a Fire Alarm Control Panel (FACP)
Attractive, compact grille styles for flush mounting to low cost electrical
backboxes or surface mounting to Wheelock's SBB backbox
Sealed back speaker construction for extra protection and improved
audibility
Fast installation with IN/OUT screw terminals using #12 to #18 AWG
wiring
Copyright 2005 Wheelock, Inc. All rights reserved.
Helping People Take Action

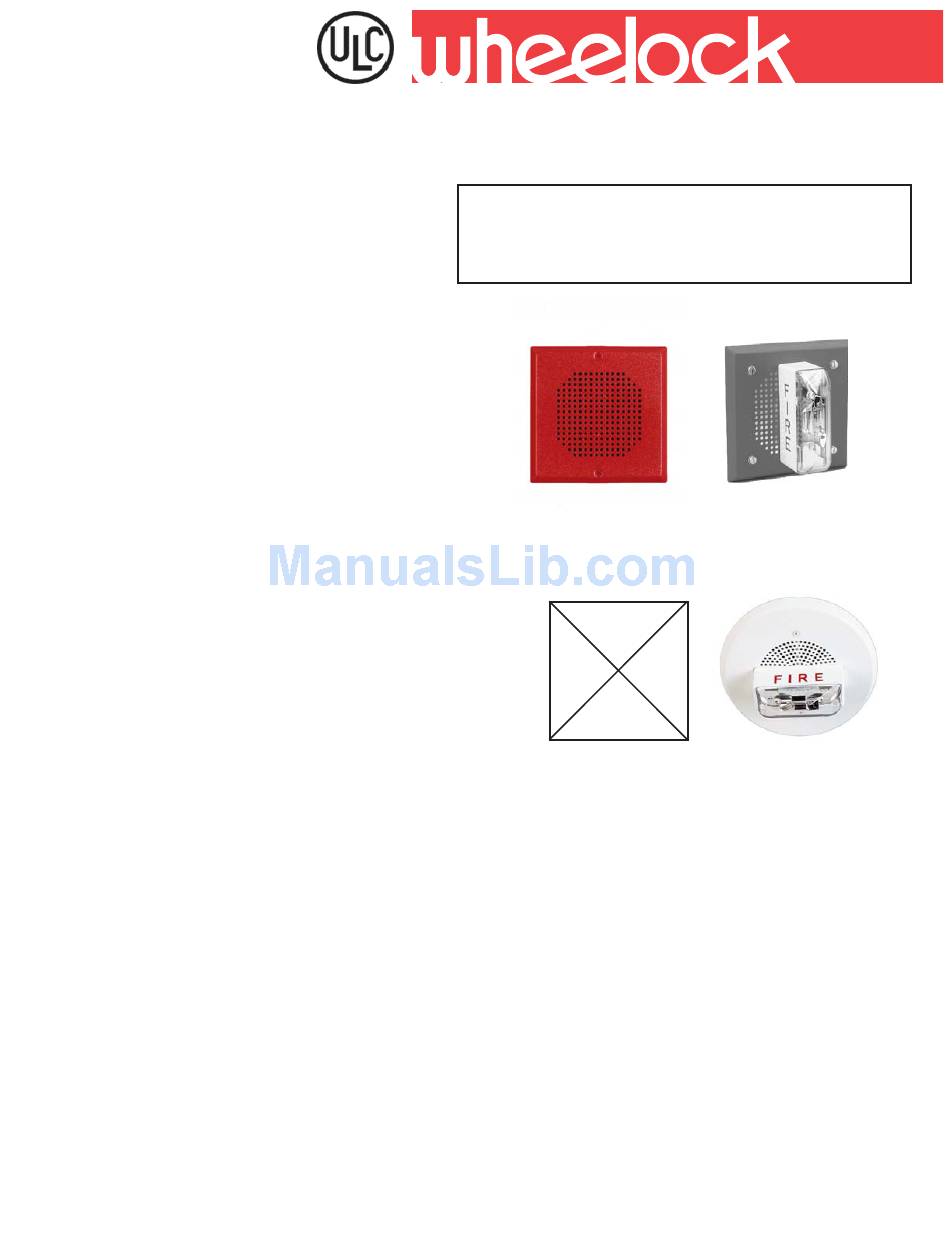

SERIES E LOW PROFILE
