Wheelock SAFEPATH SCSP-4RP Installation, Testing, Operation And Maintenance Manual

Advertisement

Quick Links

SAFEPATH
Installation, Testing, Operation,
and Maintenance Manual

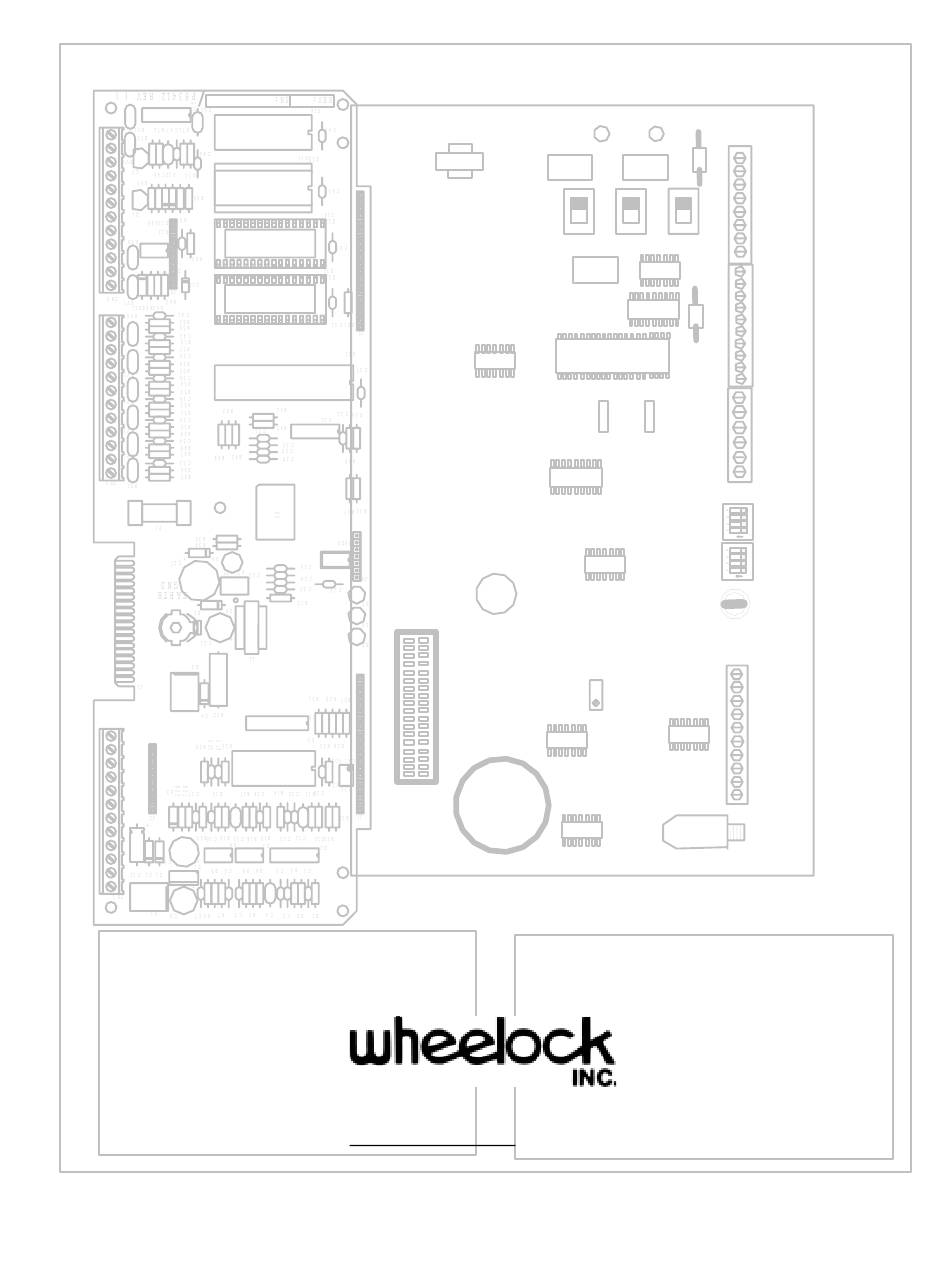

Single Circuit SAFEPATH
273 Branchport Avenue, Long Branch, NJ 07740-6899 Ph: (732) 222-6880 Fax: (732) 222-2588
Toll Free 800-631-2148 Web Site: www.wheelockinc.com E-Mail: info@wheelockinc.com
SAFEPATH P83167 REV B
T1
U3
FOR
C16
SCSP-4RP
SCSP-8RP
J1
SCSP-15SP (108969)
P1
D1
D2
F1
AMBER
GREEN
K2
K1
®
SW1
SW2
SW3
TB1
K3
U1
F2
U2
U4
TB2
X2
X1
TB3
U5
SW4
®
Systems
U6
SW5
(108951)
(108952)
R53
GROUND
FAULT
ADJUST
U9
U8
TB5
U10
+
TRB AUD
-
TRB COM
TRB NO
TRB NC
ALARM COM
ALARM NO
ALARM NC
+
DV POWER
-
+
DV STATUS
-
+
CH PLAY
-
+
LINE OUT
-
+
-
LINE IN
+
RM AUDIO
-
RM TXD
RM RXD
+
RM POWER
-
TONE SEL
3
2
1
CND FLT ENB
ON
RM ENABLE
SYNC
DV ENABLE
LAMP TEST
ON
E1
+
-
ALL CALL
+
-
24V
+
SPK AMP
-
+
STROBE
-
+
AUDIO
-
J2
MICROPHONE
A83637 Revision B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAFEPATH SCSP-4RP and is the answer not in the manual?

Questions and answers

Summary of Contents for Wheelock SAFEPATH SCSP-4RP

  • Page 1 SAFEPATH P83167 REV B AMBER GREEN TRB AUD ® SAFEPATH TRB COM TRB NO TRB NC ALARM COM ALARM NO ALARM NC DV POWER Installation, Testing, Operation, DV STATUS CH PLAY LINE OUT and Maintenance Manual LINE IN RM AUDIO RM TXD RM RXD RM POWER...
  • Page 2 Intentionally Blank...
  • Page 3: Typographical Notation Conventions

    PRODUCT'S APPLICATION, OPERATION, INSTALLATION AND TESTING IS USED AT THE SOLE RISK OF THE USER AND WHEELOCK WILL NOT HAVE ANY LIABILITY FOR SUCH USE. Certain information contained in this manual has been extracted from the NFPA 72 Manual (1999 Edition) and the Life Safety Code 101™...
  • Page 4 Intentionally Blank...
  • Page 5: Table Of Contents

    TABLE OF CONTENTS Typographical Notation Conventions…………………………………………………………… iii Table of Contents…………………………………………………………………………………. v Table of Figures…………………………………………………………………………………… vii Table of Tables……………………………………………………………………………………. ix Chapter 1 – Safety Precautions…………………………………………………………………. 1-1 Section 1-1 – Read This Manual…………………………………………………………. 1-1 Section 1-2 – Operational Safety………………………………………………………… 1-1 Section 1-3 – Compliance with Applicable Codes, Regulations, Laws, Standards, And Guidelines…………………………………………………………….
  • Page 6 Section 5-2 – To Make Live Announcements………………………………………….. 5-1 Section 5-3 – To Sound Evacuation Tone……………………………………………… 5-1 Section 5-4 – To Reset Visual Appliances……………………………………………… 5-2 Section 5-5 – To Acknowledge a Trouble Condition………………………………….. 5-2 Chapter 6 – Periodic Testing and Maintenance………………………………………………. 6-1 Section 6-1 –...
  • Page 7 List of Figures ® Figure 2-1 Basic Capabilities of the Single Circuit SAFEPATH Panel………………………... 2-2 ® Figure 2-2 Module Layout of a Typical Single Circuit SAFEPATH Panel………………… 2-5 Figure 3-1 Location of Plug-in Modules and Wire Connections……………………………… 3-2 Figure 3-2 Strobe and Audio Output Connections……………………………………………. 3-3 Figure 3-3 Wiring Diagram for Visual Notification Appliance Output…………………………...
  • Page 8 Figure 9-6 Supervised Audio System Amplifier/Signal Circuit Module, 80 Watts (SAA-80S/SE)………………………………………………………………………… 9-12 Figure 9-7 Supervised Audio Line Level Module (SALL-15S)………………………………. 9-14 Figure 9-8 Notification Appliance Circuit Interface Module (NACIM)………………………… 9-15 Figure 9-9 4-Zone Splitter Module (SC-SPL)…………………………………………………. 9-16 Figure 9-10 Auxiliary Input Module (AIM-3)……………………………………………………. 9-18 Figure 9-11 Remote Microphone Station (RMS-2)…………………………………………….
  • Page 9 Table 3-5 Standby Current for Single Circuit SAFEPATH Amplifier Modules……………. 3-21 Table 3-6 Calculations for Amplifier Alarm Current………………………………..…………. 3-22 Table 3-7 Average Current Output Measured by Wheelock, Inc……………….…………… 3-22 Table 4-1 Alarm Conditions and Results……………………………………………………….. 4-3 Table 6-1 Miscellaneous Hardware Tests………………………………………..……………. 6-1 Table 7-1 Module Trouble Procedure Cross Reference………………………………………...
  • Page 10 Intentionally Blank...
  • Page 11: Chapter 1 - Safety Precautions

    Chapter 1 - Safety Precautions Section 1-1 - Read This Manual Personnel properly qualified in the application and use of life safety equipment ("qualified personnel") shall read this manual carefully before performing any actions to specify, apply, install, maintain and ®...
  • Page 12: Section 1-3 - Compliance With Applicable Codes, Regulations, Laws, Standards

    ® Notification equipment cannot last forever. Even though SAFEPATH Panel is expected to last up to ten years, any of its parts or components could fail before then. Therefore testing of the entire protective ® signaling system, including the SAFEPATH Panel, all notification equipment, as well as all messages and their output channel, and priority assignment, shall be conducted at least twice each year, or more often as required by local, state and federal codes, regulations and laws, by qualified personnel.
  • Page 13: Section 1-5 - Audio Output Considerations

    Before specifying, installing, operating, testing, maintaining or servicing a system, carefully read the installation, operation and testing manual for each piece of equipment and applicable codes. Additional copies of this manual may be obtained from: Wheelock, Inc. 273 Branchport Ave. Long Branch, N.J. 07740 Tel:...
  • Page 14 Intentionally Blank...
  • Page 15: Chapter 2 - Overview And Features

    PANEL MUST BE PROPERLY INSTALLED, PROGRAMMED, AND CONNECTED TO A COMPATIBLE FIRE ALARM CONTROL PANEL TO FUNCTION IN A VOICE EVACUATION SYSTEM. WHEELOCK EXPRESSLY DISCLAIMS ALL LIABILITY FOR THE CONTENT, CLARITY AND LANGUAGES OF, AND OUTPUT CHANNEL AND PRIORITY LEVEL ASSIGNED TO, ANY AND ALL MESSAGES.
  • Page 16: Section 2-2 - Enclosure And Configuration

    • Optional remote microphone station • Digital Voice Module (MDX-2) • Alarm input activation wiring • Input voltage/low battery • Built-in audible alert indicates any supervision loss • Auxiliary trouble output for trouble signal connection • Remote reporting via output contacts for system trouble or alarm activation. •...
  • Page 17: Section 2-4 - Module Configurations

    Section 2-4 - Module Configurations ® The Single Circuit SAFEPATH Panel is equipped with a combination of the following modules:  There are ten modules in the Single Circuit SAFEPATH Panel product line. The ten modules are: SCMB (Single Circuit Motherboard) DCPS (Power Supply/Battery Charger) SAA-40S (40 Watt, Supervised Audio Amplifier Module with 2 Amps of strobe current) SAA-80S/SE* (80 Watt, Supervised Audio Amplifier Module with 2 Amps of strobe current)
  • Page 18: Section 2-7 - Operation Modes

    Section 2-7 - Operation Modes ® The SAFEPATH Panel has two operation modes: 1. Standby 2. Alarm Standby Mode ® Standby is the normal mode. The SAFEPATH Panel supervises the connections and internal components to maintain proper operation. All strobes and speaker appliances are off. Alarm Mode Alarm mode occurs when an emergency signal is initiated manually, or by the FACP or control equipment.
  • Page 19 Digital Voice Amplifier Module MDX-2 SAA-40S, 80S, 80SE SALL-15S MOTHER BOARD (SCMB) SAFEPATH P83167 REV B AMBER GREEN MICROPHONE Power Supply/ ZONE SELECT LED'S Battery Charger ZONE 1 ZONE 4 ZONE 2 ZONE 3 CALL ZONE 1 OPERATION: (DCPS) Use zone switches to select zones for live announcements.
  • Page 20 Intentionally Blank...
