iOptron AstroBoy 9401 Quick Start Manual

Quick Start Guide
®

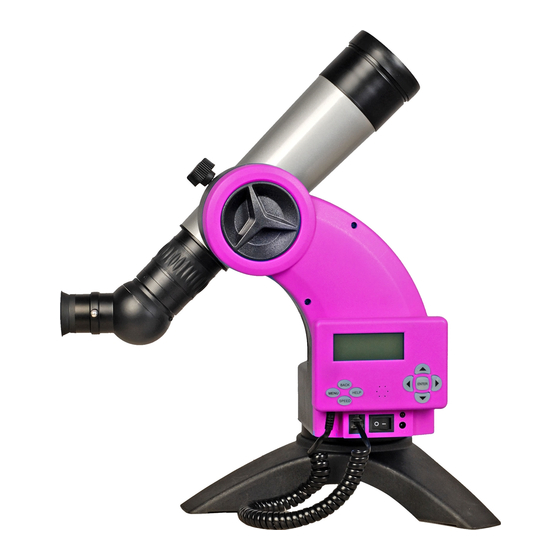

AstroBoy Computerized Telescope
#9401 (Pulsar Pink), #9402 (Astro Blue),
#9403 (Terra Green), #9404 (Cosmic Orange)

FEATURES

•
Alt-Azimuth Mount with GOTONOVA
•
Real-time GOTO and tracking features
•
4,000+ object database with 256 user-definable objects.
•
4 line, 20-character LCD hand controller with backlit LED buttons for easy operation
•
Dual-axis servomotor with optical encoders
•
Drive motor with 5-speed setting for precise tracking
•
Tabletop base
•
60mm achromatic refractor telescope for land and celestial objects observation
•
Optional tripod (part #9421)
•
Also attaches to photo tripods with ¼" camera screw

PACKAGE CONTENTS

®
•
AstroBoy Telescope mount
•
60mm Refractor telescope
•
Tabletop base
•
#8404 Hand Controller
ONLINE CONTENTS (click under "Support" menu button) www.iOptron.com
•
Full manual
(you can refer to the full manual for more details on set-up and operation).
•
Tips for operating
•
Reviews and feedback from other customers
•
Accessories information

Assembly Terms

1. Telescope Tube
2. Dovetail Lock
3. #8404 Hand Controller
4. Altitude Lock
5. Mount
6. Focuser
7. Diagonal
8. Eyepiece
9. Tabletop Base
NEVER USE A TELESCOPE TO LOOK AT THE SUN DIRECTLY!
Looking at or near the Sun will cause instant and irreversible damage to your eye.
Children should always have adult supervision while observing.
iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | Toll Free (866) 399-4587 | www.iOptron.com
TM
computer control technology
(including AC adapter, tripod, and more)
2
6
8
7
•
45º diagonal
•
1.25" H20mm eyepiece
•
Plastic carrying case
1
4
5
3
9
