iOptron SmartStar-R80 Quick Start Manual

Quick Start Guide
®
SmartStar -R80 GPS Telescope
#9801-W (Pulsar Pink) & #9802-W (Astro Blue)
®

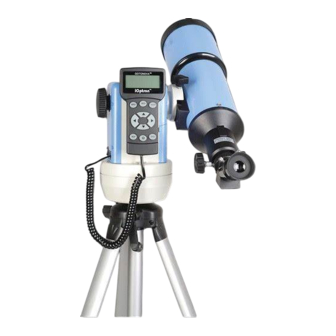

SmartStar -R80 Telescope
#9501-W (Pulsar Pink) & #9502-W (Astro Blue)

FEATURES

•
Alt-Azimuth Mount– The Cube™-- The only mount of its kind for ultimate rotation
•
Includes the GoToNova
•
Over 5,000 object database.
•
Built-in 32-channel GPS (#9801-W & #9802-W only)
•
Large LCD screen with 4 lines and 21-character wide screen
•
Drive motor with 5-speed setting for precise tracking.
•
Dual-axis servomotor with optical encoder
•
Aluminum tripod
•
80mm achromatic refractor telescope

PACKAGE CONTENTS

®
•
SmartStar telescope mount
•
Built-in GPS receiver (#9801-W & #9802-
W only)
•
80mm Refractor telescope
•
Tripod
ONLINE CONTENTS (click under "Support" menu button) www.iOptron.com
•
Full manual
(you can refer to the full manual for more details on set-up and operation).
•
Tips for operating
•
Reviews and feedback from other customers
•
Accessories information

Assembly Terms

1. Telescope tube
2. Dovetail lock
3. Hand controller
4. Altitude lock
5. Mount
6. Diagonal
7. Eyepiece
8. Accessory tray
9. Tripod support bracket
10. Leg Locks
11. Tripod
12. Azimuth lock
iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | Toll Free (866) 399-4587 | www.iOptron.com
®
Controller. The most intuitive controller on the market.
(including AC adapter, carry bag, and more)
®
•
GoToNova 8405 Hand Controller
•
Controller Cable
•
45º diagonal
•
10mm and 25mm eyepieces
•
Back pack bag
5 5
12 12
11 11
10 10
6 6
7 7
8 8
9 9
