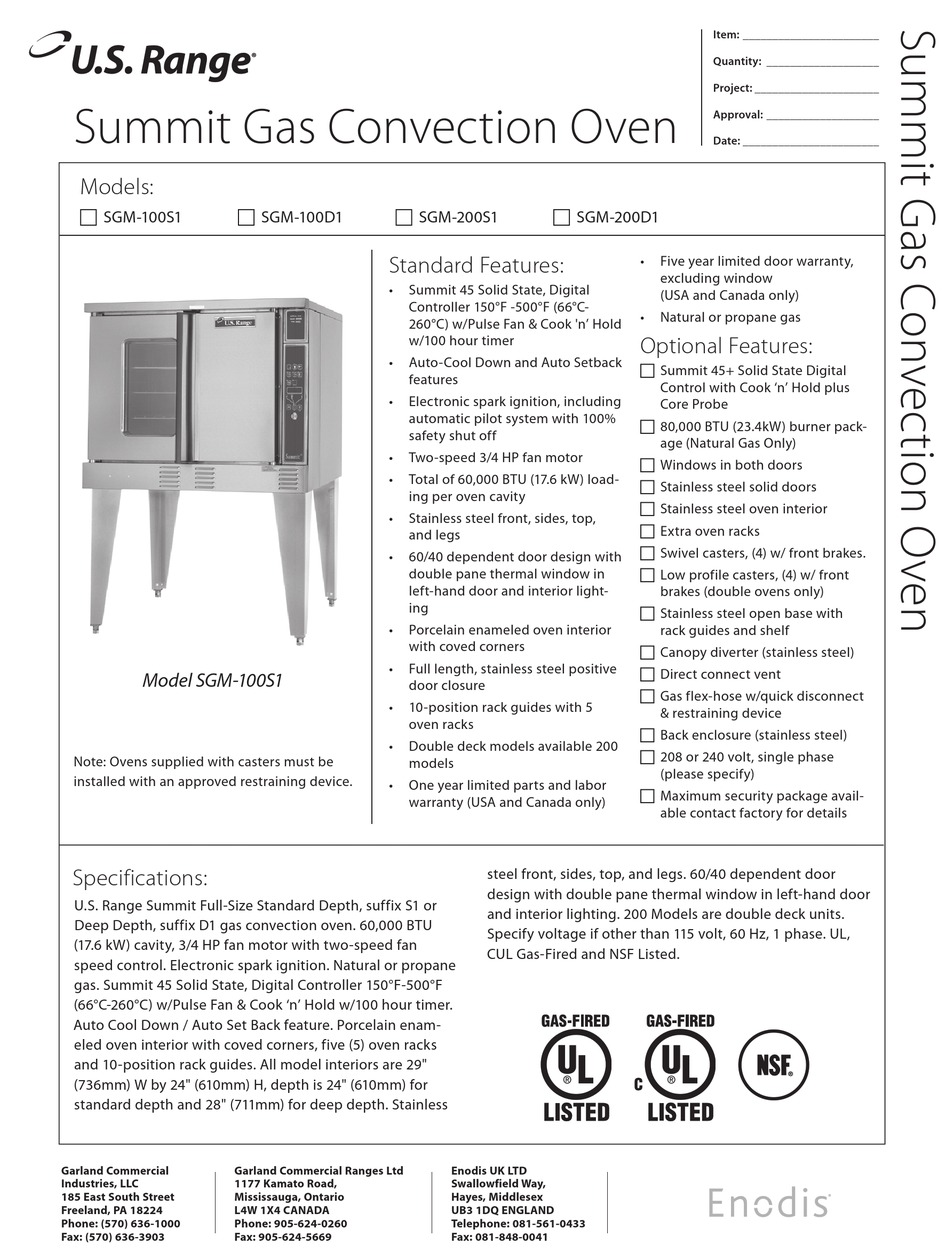

U.S. Range SGM-100D1 Specifications

Summit Gas Convection Oven
Models:
 SGM‑100S1  SGM‑100D1
Model SGM-100S1
Note: Ovens supplied with casters must be
installed with an approved restraining device.

Specifications:

U.S. Range Summit Full‑Size Standard Depth, suffix S1 or
Deep Depth, suffix D1 gas convection oven. 60,000 BTU
(17.6 kW) cavity, 3/4 HP fan motor with two‑speed fan
speed control. Electronic spark ignition. Natural or propane
gas. Summit 45 Solid State, Digital Controller 150°F‑500°F
(66°C‑260°C) w/Pulse Fan & Cook 'n' Hold w/100 hour timer.
Auto Cool Down / Auto Set Back feature. Porcelain enam‑
eled oven interior with coved corners, five (5) oven racks
and 10‑position rack guides. All model interiors are 29"
(736mm) W by 24" (610mm) H, depth is 24" (610mm) for
standard depth and 28" (711mm) for deep depth. Stainless
Garland Commercial Garland Commercial Ranges Ltd
Industries, LLC 1177 Kamato Road,
185 East South Street Mississauga, Ontario
Freeland, PA 18224 L4W 1X4 CANADA
Phone: (570) 636-1000 Phone: 905-624-0260
Fax: (570) 636-3903 Fax: 905-624-5669
 SGM‑200S1  SGM‑200D1
Standard Features:
• Summit 45 Solid State, Digital
Controller 150°F ‑500°F (66°C‑
260°C) w/Pulse Fan & Cook 'n' Hold
w/100 hour timer
• Auto‑Cool Down and Auto Setback
features
• Electronic spark ignition, including
automatic pilot system with 100%
safety shut off
• Two‑speed 3/4 HP fan motor
• Total of 60,000 BTU (17.6 kW) load‑
ing per oven cavity
• Stainless steel front, sides, top,
and legs
• 60/40 dependent door design with
double pane thermal window in
left‑hand door and interior light‑
ing
• Porcelain enameled oven interior
with coved corners
• Full length, stainless steel positive
door closure
• 10‑position rack guides with 5
oven racks
• Double deck models available 200
models
• One year limited parts and labor
warranty (USA and Canada only)
steel front, sides, top, and legs. 60/40 dependent door
design with double pane thermal window in left‑hand door
and interior lighting. 200 Models are double deck units.
Specify voltage if other than 115 volt, 60 Hz, 1 phase. UL,
CUL Gas‑Fired and NSF Listed.
Enodis UK LTD
Swallowfield Way,
Hayes, Middlesex
UB3 1DQ ENGLAND
Telephone: 081-561-0433
Fax: 081-848-0041
Item: _______________________
Quantity: ___________________
Project: _____________________
Approval: ___________________
Date: _______________________
• Five year limited door warranty,
excluding window
(USA and Canada only)
• Natural or propane gas
Optional Features:
 Summit 45+ Solid State Digital
Control with Cook 'n' Hold plus
Core Probe
 80,000 BTU (23.4kW) burner pack‑
age (Natural Gas Only)
 Windows in both doors
 Stainless steel solid doors
 Stainless steel oven interior
 Extra oven racks
 Swivel casters, (4) w/ front brakes.
 Low profile casters, (4) w/ front
brakes (double ovens only)
 Stainless steel open base with
rack guides and shelf
 Canopy diverter (stainless steel)
 Direct connect vent
 Gas flex‑hose w/quick disconnect
& restraining device
 Back enclosure (stainless steel)
 208 or 240 volt, single phase
(please specify)
 Maximum security package avail‑
able contact factory for details
