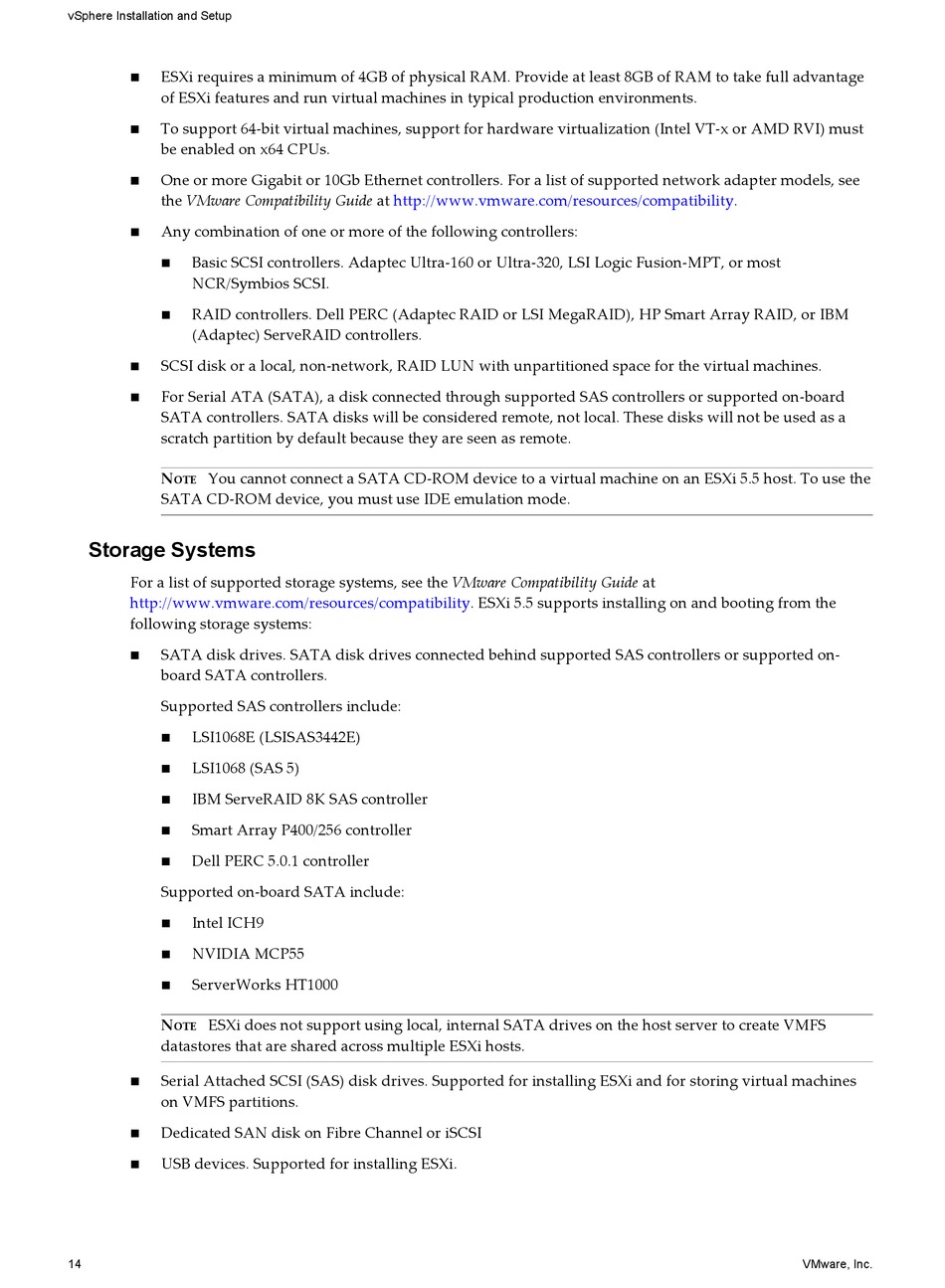

vSphere Installation and Setup
ESXi requires a minimum of 4GB of physical RAM. Provide at least 8GB of RAM to take full advantage
n
of ESXi features and run virtual machines in typical production environments.
To support 64-bit virtual machines, support for hardware virtualization (Intel VT-x or AMD RVI) must
n
be enabled on x64 CPUs.
One or more Gigabit or 10Gb Ethernet controllers. For a list of supported network adapter models, see
n
the VMware Compatibility Guide at http://www.vmware.com/resources/compatibility.
Any combination of one or more of the following controllers:
n
Basic SCSI controllers. Adaptec Ultra-160 or Ultra-320, LSI Logic Fusion-MPT, or most
n
NCR/Symbios SCSI.
RAID controllers. Dell PERC (Adaptec RAID or LSI MegaRAID), HP Smart Array RAID, or IBM
n
(Adaptec) ServeRAID controllers.
SCSI disk or a local, non-network, RAID LUN with unpartitioned space for the virtual machines.
n
For Serial ATA (SATA), a disk connected through supported SAS controllers or supported on-board
n
SATA controllers. SATA disks will be considered remote, not local. These disks will not be used as a
scratch partition by default because they are seen as remote.
N You cannot connect a SATA CD-ROM device to a virtual machine on an ESXi 5.5 host. To use the
OTE
SATA CD-ROM device, you must use IDE emulation mode.

Storage Systems

For a list of supported storage systems, see the VMware Compatibility Guide at
http://www.vmware.com/resources/compatibility. ESXi 5.5 supports installing on and booting from the
following storage systems:
SATA disk drives. SATA disk drives connected behind supported SAS controllers or supported on-
n
board SATA controllers.
Supported SAS controllers include:
LSI1068E (LSISAS3442E)
n
LSI1068 (SAS 5)
n
IBM ServeRAID 8K SAS controller
n
Smart Array P400/256 controller
n
Dell PERC 5.0.1 controller
n
Supported on-board SATA include:
Intel ICH9
n
NVIDIA MCP55
n
ServerWorks HT1000
n
N ESXi does not support using local, internal SATA drives on the host server to create VMFS
OTE
datastores that are shared across multiple ESXi hosts.
Serial Attached SCSI (SAS) disk drives. Supported for installing ESXi and for storing virtual machines
n
on VMFS partitions.
Dedicated SAN disk on Fibre Channel or iSCSI
n
USB devices. Supported for installing ESXi.
n
14 VMware, Inc.
