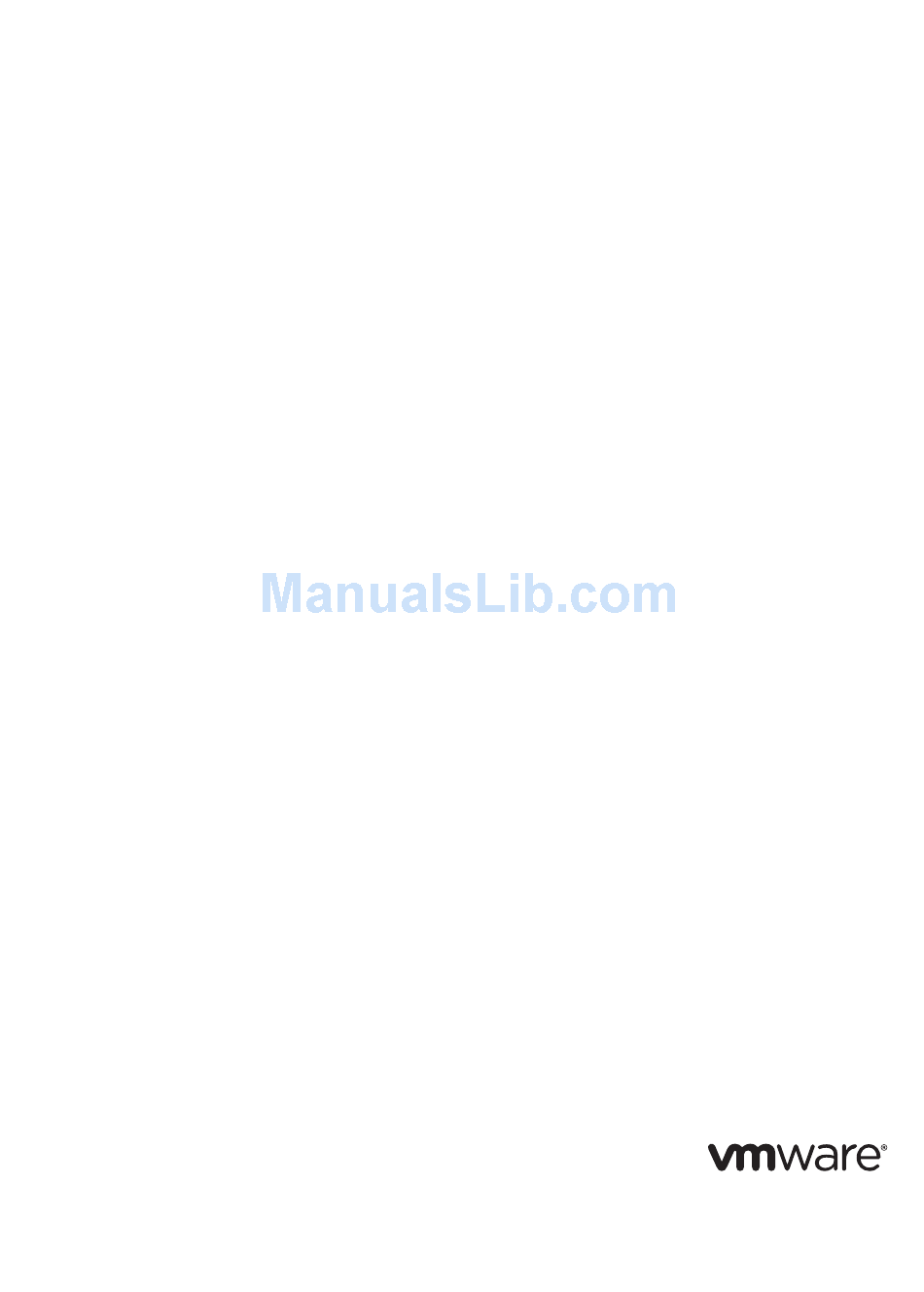

vShield API Programming Guide
vShield Manager 4.1
vShield App 1.0
vShield Edge 1.0
vShield Endpoint 1.0
This document supports the version of each product listed and
supports all subsequent versions until the document is replaced
by a new edition. To check for more recent editions of this
document, see http://www.vmware.com/support/pubs.
EN-000434-00
