11 Disassembly and Reassembly

Description

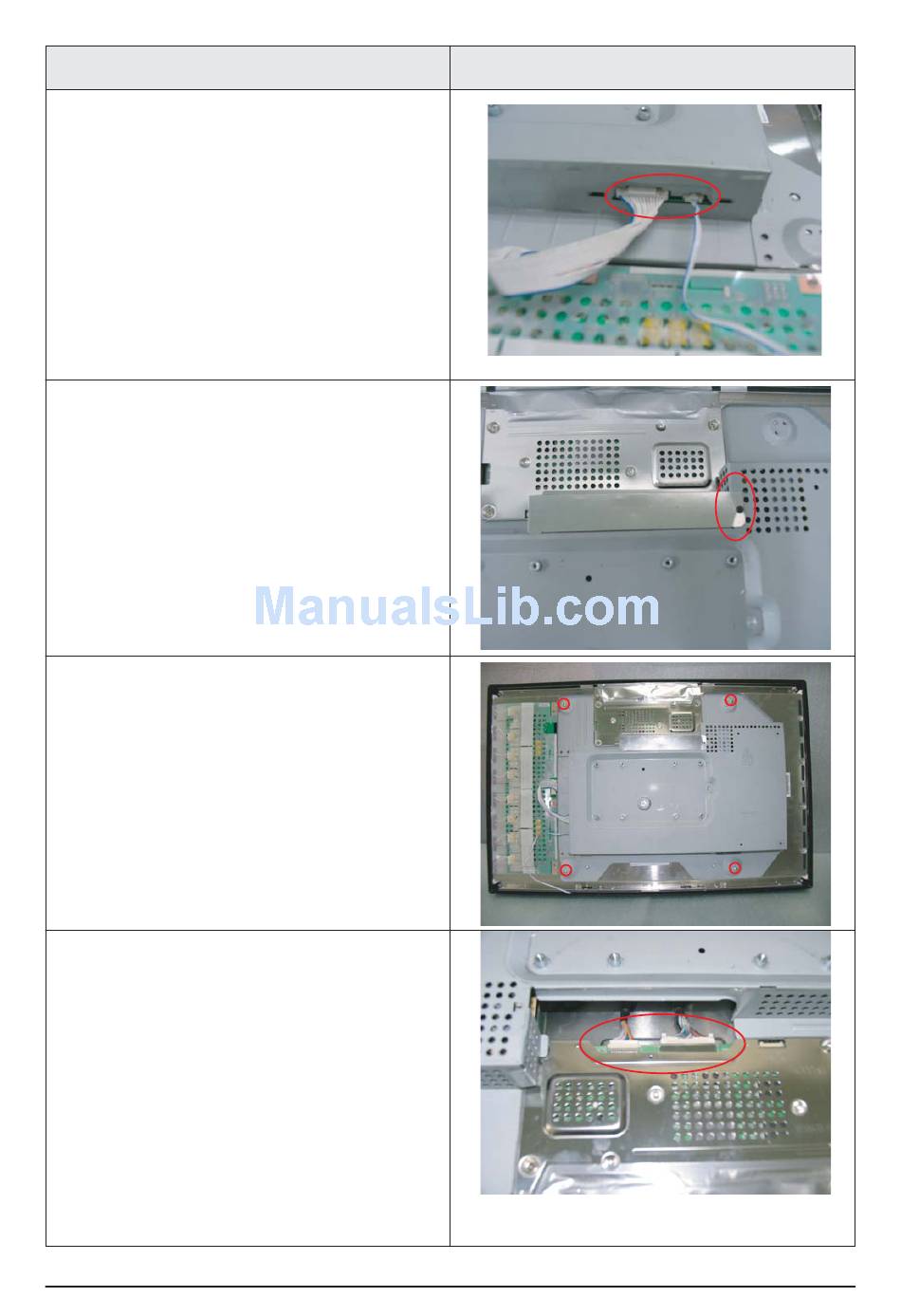

3. Disconnect cables and remove the inverter

power and function cable

4. Remove 1screws from the Shield.

5. Remove 4screws from the Shield between

LCD_psanel and Shield

6. Disconnect cables LVDS and Signal from Panel

control board

11-2

Picture Description
