Assembly - Generac Power Systems 7500EXL Rated watt Extended Life Generator Operator's Manual

ASSEMBLY

Your generator requires some assembly and is ready for
use after it has been properly serviced with the
recommended oil and fuel.
If you have any problems with the assembly of your
generator, please call the generator helpline at
1-800-270-1408.
Unpack the Generator
1. Set the carton on a rigid flat surface.
2. Open carton completely by cutting each corner from
top to bottom.
3. Remove everything from carton except generator.
4. Leave generator on carton to install wheel kit.
Carton Contents
Check all contents against those listed below:
• Generator
• Wheel kit
• Storage Cover
• Adapter Cord Set
• Battery
• Battery Float Charger

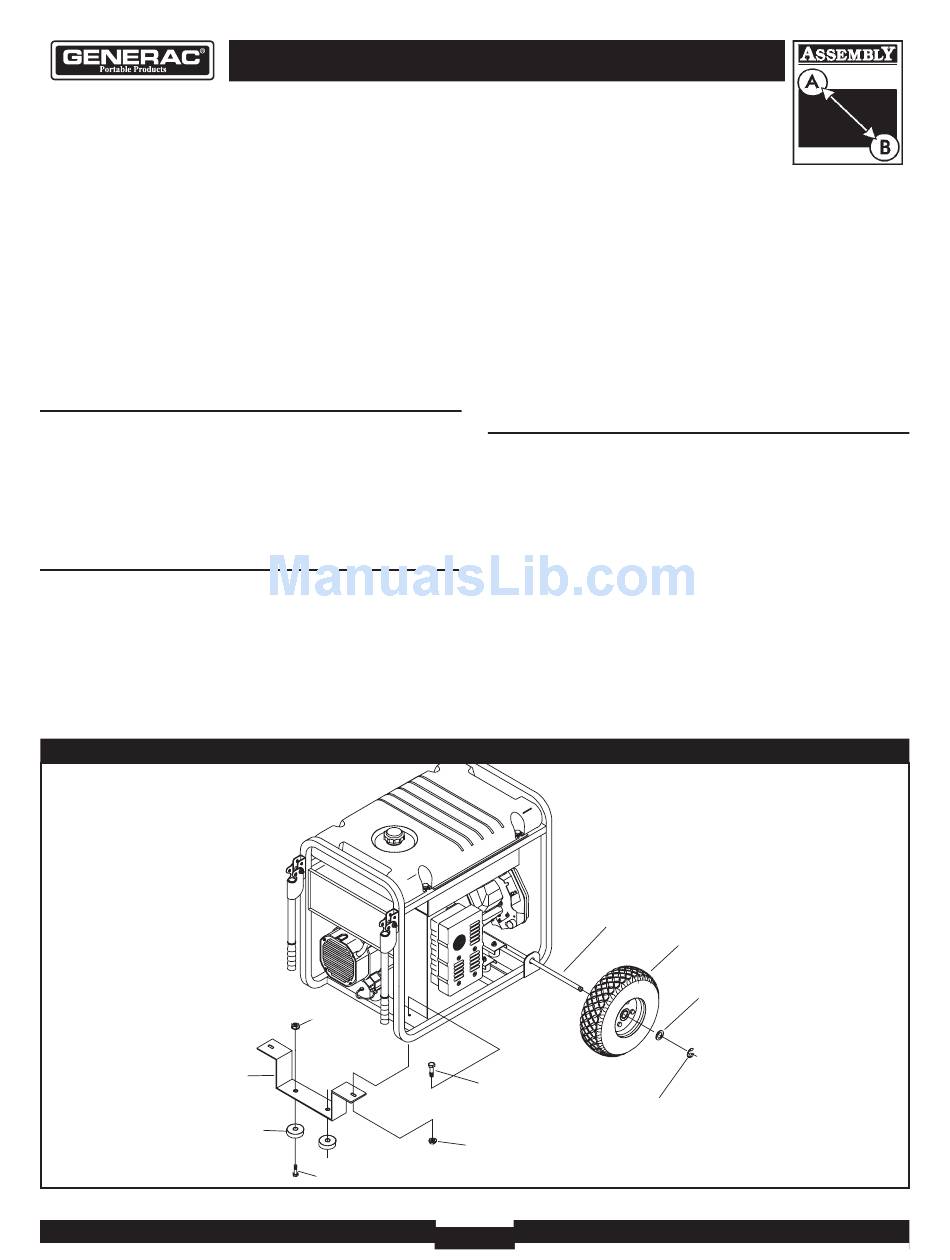

Figure 1 — Install Wheel Kit
Support Leg
Vibration Mount
7500EXL Extended Life Generator
1/4x20 Lock Nut
1/4-20x1" Capscrew
• Battery Charge Cables
• Spare Spark Plug, Air Filter, and Oil Filter
• Spark Plug Wrench
• (2) Locking 30 Amp Plugs
• Engine Oil
• Operator's Manual
• Engine Manual
If any parts are missing or damaged, call the generator
helpline at 1-800-270-1408.
Install Wheel Kit
The wheel kit is designed to greatly improve the portability
of your generator.
NOTE: Wheel kit is not intended for over-the-road use.
You will need the following tools to install this wheel kit:
• 1/2" or 13mm socket wrench
• 1/2" or 13mm open end wrench
• 7/16" socket wrench
• 7/16" open end wrench
• Pliers
• Safety glasses
Refer to Figure 1 and install the wheel kit as follows:
1. Tip generator so that engine end is up.
Axle
M8x20mm Capscrew
E-Ring
M8 Lock Nut
6
Wheel
Flat Washer
