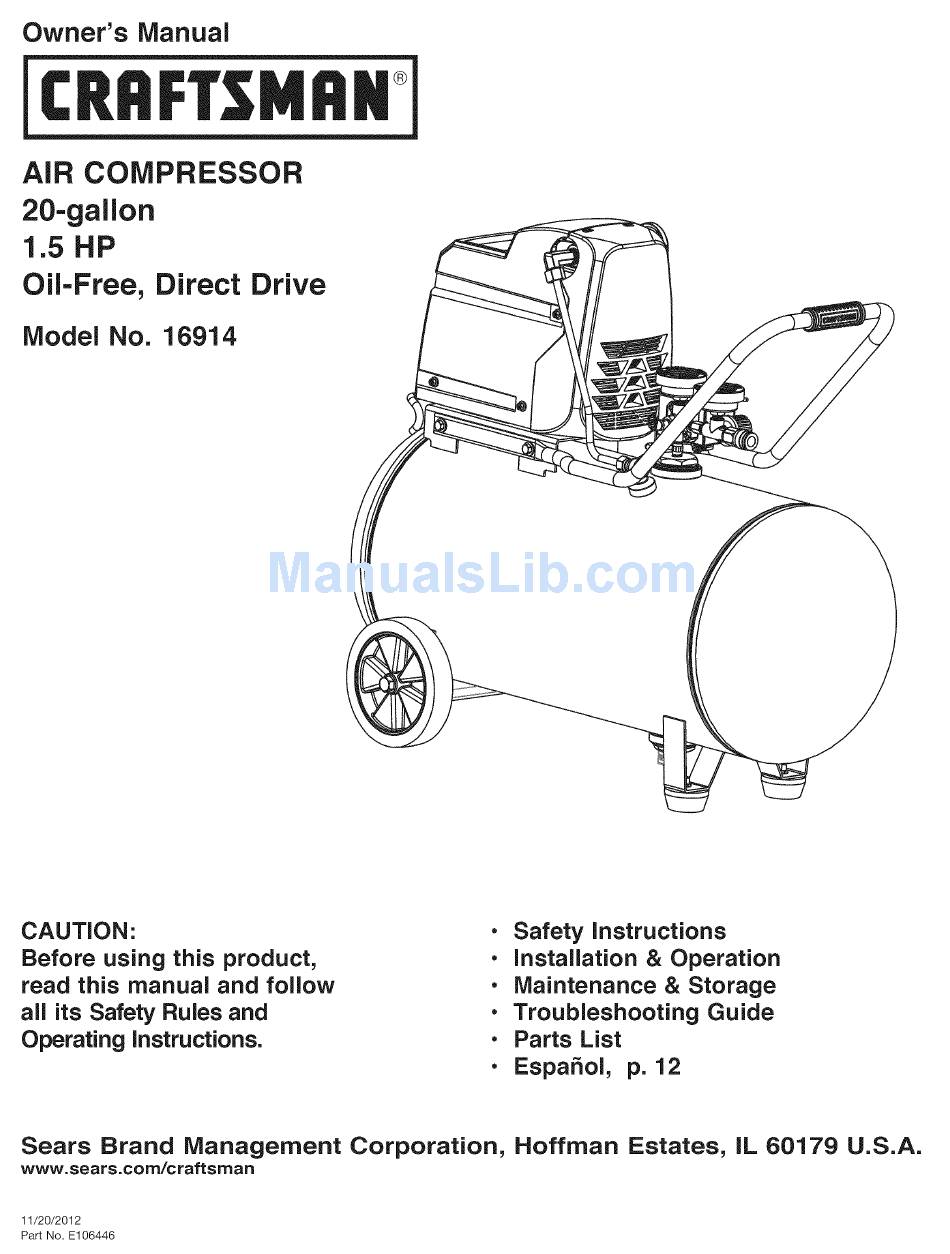

Owner's Manual
CRRFTSl4Rli
AiR COMPRESSOR
20-gallon
1.5 HP
Oil-Free, Direct Drive
Model No. 16914
CAUTION:
Before using this product,
read this manual
and follow
all its Safety Rules and
Operating instructions.
• Safety instructions
• Installation
& Operation
• Maintenance
& Storage
• Troubleshooting
Guide
• Parts List
• Espa_ol,
p. 12
Sears
Brand
Management
Corporation,
Hoffman
Estates,
IL 60179
U.S.A.
www.sears.com/craftsman
11/20/2012
Part No. E106446

Advertisement

   Related Manuals for CRAFTSMAN 16914

   Summary of Contents for CRAFTSMAN 16914

  • Page 1

    Owner's Manual CRRFTSl4Rli AiR COMPRESSOR 20-gallon 1.5 HP Oil-Free, Direct Drive Model No. 16914 CAUTION: • Safety instructions Before using this product, • Installation & Operation read this manual and follow • Maintenance & Storage all its Safety Rules and •...

  • Page 2: Table Of Contents

    ONE YEAR FULL WARRANTY ON CRAFTSMAN AIR COMPRESSOR If this Craftsman Air Compressor fails due to manufacturer's defects in material or workmanship within one year of the date of purchase, RETURN IT TO THE NEAREST SEARS STORE OR SERVICE CENTER IN THE UNITED STATES and it will be replaced or repaired (at our option), free of charge.

  • Page 3: Safety Symbols

    Safety Symbols The information listed below should be read and understood by the operator. This information is given to protect the user while operating and storing the air compressor. We utilize the symbols below to allow the reader to recognize important information about their safety.

  • Page 4: Important Safety Instructions & Guidelines

    Important Safety Instructions & Guidelines Avoid using the air compressor in confined areas. Always have adequate space (12 inches) on all sides of the air compressor. Also keep children, pets, and others out of the area of operation. This air compressor does not provide breathable air for anyone or any auxiliary breathing device.

  • Page 5: Parts & Features

    IRemove Parts & Features See figures below for reference Air intake Filter rovides clean air to the pump and must Iways be kept free of debris. Check on a Tank Pressure Gauge ally basis or before each use. Indicates the reserve air | pressure in the tank.

  • Page 6

    Parts & Features See figures below for reference Check Valve When the pump is not in operation the valve closes to retain air pressure inside the tank. An internal component. Outlet Tube Pressure Relief Valve The pressure relief valve located on the side of the pressure switch, is designed to automatically release compressed...

  • Page 7: Installation & Assembly

    Installation & Assembly The air compressor should be turned off, unplugged from the power source, the air bled from the tank and the unit allowed time to cool before any maintenance is performed. Personal injuries could occur from moving parts, electrical Grounded sources, compressed...

  • Page 8: Operating Procedures

    Operating Procedures Daily Start=Up Procedures 1. Set the Auto-On/Off switch to the Off position. 6. Turn the Auto-On/Off switch to the On-Auto position and 2. Inspect the air compressor, air hose, and any the compressor will start and build air pressure in the accessories/tools being used for damage or obstruction.

  • Page 9: Maintenance

    Maintenance NOTE: service procedure covered in the maintenance schedule should be performed by qualified Before each use service personnel. items to Check/Change or daily Check Tank Safety Valve Overall Unit Visual Check The air compressor should be turned off, unplugged from the power source, air bled from the tank...

  • Page 10: Troubleshooting Guide

    Troubleshooting Guide The air compressor should be turned off and unplugged from the power source before any maintenance is performed as well as the air bled from the tank and the unit allowed time to cool. Personal injuries could occur from moving parts, electrical sources, compressed air, or hot surfaces. PROBLEM POSSIBLE CORRECTION...

  • Page 11

    Air Compressor Model 16914 Parts List Ref. Part Description Quantity Number Screw, SHCS M6 X 1 X 35mm Washer, Lock M6 E100284 Head, Cylinder 1 & Gasket,O-ring, Head (D Shape) Assy, Valve Plate 1 & Gasket, O-ring Cylinder Cylinder Assy, Motor/Pump Housing F2B2...

  • Page 12

    Air Compressor IVlodel 16914 E×ploded View...

  • Page 13: Parts List

    Model 16914 Air Compressor Parts List Hand t Left i_F2D2 Motor/Pump Ref. Part Part Description Quantity Number Number Desc_ Quantity No.Ref' E105606 Shroud Rear Wheel, 7" x 1.5" Diamond Tread Bolt, Shoulder M10 x 1.5 x 55mm Assembly, F2D2 Moto_/PumpR=,_ht ',',c, nd...

  • Page 14

    Manual de CRRFTSl4Rli COMPRESOR DE AIRE 75.7 lilros 1.5 HP De impulsi6n direcla, Sin aceite # de Modelo 16914 PRECAUCION: Antes de usar • Instrucciones y pautas de seguridad el producto, lea este manual y siga importantes sus reglas e instrucciones •...

  • Page 15

    Lista de las piezas............GARANTiA COMPLETA DURANTE UN Al_iO DEL COMPRESOR DE AIRE CRAFTSMAN Si este compresor de aire Craftsman fallase debido a defectos en materiales y mano de obra dentro de un aSo a partir de la fecha de compra, DEVOLVERLO AL ESTABLECIMIENTO CENTRO DE SERVlCIO SEARS M,&S CERCANO...

  • Page 16

    SJmbolos comunes de seguridad El operador debe leer y entender la informaci6n descrita a continuaci6n. Esta informaci6n se ofrece para proteger al usuario al operar y almacenar el compresor de aire. Los simbolos siguientes son los que se utilizan para indicar al lector informaci6n que es importante para su seguridad.

  • Page 17

    Instrucciones y pautas de seguridad importantes Evite utilizar el compresor de aire en Areas encerradas. Siempre tenga un espacio Riesgo para la libre adecuado (30 cm.) en todos los lados del compresor. Tambien mantenga fuera respiraci6n del Area de operaci6n alas mascotas, ni_os y otras personas. Este compresor de aire no provee aire que pueda ser respirado ni empleado con un dispositivo respiratorio auxiliar.

  • Page 18

    Partes y caracterfsticas Como referencia, yea las figuras abajo. Suministra aire limpio a la bomba. Siempre debe conservarlo limpio. Revfselo diariamente Filtro del aire antes de cada uso. Indica la presi6n de la reserva de aire Man6metro de presi6n del tanque del tanque.

  • Page 19

    Partes y caracteristicas Como referencia, yea las figuras abajo. Vblvula de retenci6n Cuando Ja bomba no estA en operaci6n, esta v&lvula se cierra para retener Japresi6n de aire dentro del tanque. Es un componente interno. Outlet Tube Tubo de alivio de presi6n V_lvula de alivJo de presi6n...

  • Page 20

    Instalaci6n y ensamblaje Antes de darle cualquier tipo mantenimiento C/avija compresor de aire, se debe apagar y desconectar de la fuente de alimentaci6n el6ctrica, ademas de purgar el aire del tanque y darle suficiente tiempo para enfriarse. Existe el riesgo de que las partes m6viles, las fuentes electricas, Terminal de tierra el aire comprimido...

  • Page 21

    Procedures d' utilisation Procedimiento diario de arranque 5. Enchufe el cable de corrienteen un tornacorriente apropiado. 1. Pongael interruptor Auto-On/Often la posici6nde 6. Mueva el interruptor Auto-On/Off a la posici6n de encendido apagado(Off). (Auto-On); el compresordeber_, a rrancar,acumuiandola presi6n 2. Verifiqueque el compresor d el aire,la manguera de aire y todoslos del aire en el tanquehastaIlegara la presi6nde apagado,momento accesorios/herramientas utilizados, n o tengandaSosni obstrucci6n.

  • Page 22

    Mantenimiento Cualquier procedimiento de servicio que no est6 cubierto en el programa de mantenimiento que sigue Antes de cada uso deberb, set efectuado el personal de servicio cali- Asuntos para verificar/cambJar o diariamente ficado. Revisar l avAIvula deseguridad d eltanque Revisarvisualmenteel aspectogeneral Antes de dar mantenimiento al equipo,...

  • Page 23

    Diagn6stico y correcci6n de fallas Antes de dar mantenimiento al equipo, se debe apagar y desconectar del tomacorriente, como purgar el aire del tanque y permitir que la unidad se enfrfe. Las partes en movimiento, las fuentes electricas, el aire comprimido y las superficies calientes pueden provocar lesiones.

  • Page 24

    TORNILLO, SHC M6 X 1 X 35 MM CONJUNTO, EXCENTRICO Y COJINETE 6203ZC3 CONJUNTO, BIELA / PISTON Compresor de aire TORNILLO, SHC M5 X.8 X 25 MM Modelo 16914 TUERCA, M5 X .8 VENTILADOR, ENFRIAMIENTO DE Vista esquem_tica BOMBA ARANDELA PLANA M6 ARANDELA, DE FRENO M6 TORNILLO, SHC M6 X 1.0 X 16 MM...

  • Page 25

    Compresor de aire- IVlodelo 16914 Vista esquem_tica /_32 /_ 71 i/--51...

  • Page 26

    16914 Compresor de aire- IVlodelo Lista de partes Ref. Part Description Quantity Ref. Part Description Quantity Number Number E105606 Protectortrasero Arandela plana M8 Conjunto, motor/bomba F2B2 - Salida a Perno, HH M8 x 1.25 x 25 mm la derecha Ensamble soldado, tanque de 20...

  • Page 27

    Papapedip sepviciode repapacion AuCanada pourserviceen fran_ais: a domicifio, y papa ordenap piezas: 1-800-LE-FOYER "R 1-888-SU-HOGAR {1-800=553-8837) 11-888-784-6427) www.seaps,ca ® Registered Tredemarb/ Tradomarb/ Service Mark of Soars,RoebuckandCo. ® Merca ReHistrede/ Nerce de Fabrica/ Nerca de RerviciodeSears, Roebecb endCo. McNarque de commerce/ IViarquo deposee de Soars,RoebuckendCo. ®SeePs Breeds,LLC...
