Specifications Of Felcom 15; Inmarsat-C Services Supported; Frequency; Output Power - Furuno FELCOM 15 Specifications

Rule and Regulations
Complies with IMO Res. A.807 (19) Inmarsat-C, A.664 (16) EGC
Performance Standards, A.694 (17) General requirements,
MSC.68 (68), MSC/Circ 862, MSC 55/25 Inmarsat, IEC 61097-4
Inmarsat-C/EGC
Class identification
Felcom 15 is Class 2 Inmarsat-C SES
(For info Class 0: EGC, Class 1: Basic SES, Class 2: Basic SES + EGC,
Class 3: Basic SES + independent EGC)

Inmarsat-C services supported

EGC receiving (SafetyNET™, FleetNET™)
Distress message handling
Two-way, digital store-and-forward message handling:
Telex, FAX , Internet E-mail, X.25
(PSTN)
X.400 , Closed Network
(MHS)
Polling, Data Reporting

Frequency

TX: 1626.5 - 1646.5 MHz
RX: 1530.0 - 1545.0 MHz
Channel Spacing
Modulation

Output Power

Editing
Message editing, File protection by password, Easy editing by
cut, paste, copy, search and replace commands
File Management
Adding, modifying and deleting, List and print files, Available
memory count, Transferring data between memory and floppy
disk

Utility Programs

System status indication, System diagnostic, Performance
verification test (PVT), Commissioning sequence, Station list,
Log book
Interface
RS-232C
Ethernet 10Base-T
IEC 61162:
Display Unit IC-215
Display:
Message:
Antenna Unit IC-115
1.4 kg 3.1 lb
Terminal Unit
4.5 kg 9.9 lb
25
142
4- 7
156 6.1"
FURUNO U.S.A., INC.
Camas, Washington, U.S.A.
Phone: +1 360-834-9300 Telefax: +1 360-834-9400
FURUNO (UK) LIMITED
Denmead, Hampshire, U.K.
Phone: +44 2392-230303 Telefax: +44 2392-230101
FURUNO FRANCE S.A.
Bordeaux-Mérignac, France
Phone: +33 5 56 13 48 00 Telefax: +33 5 56 13 48 01
FURUNO ESPANA S.A.
Madrid, Spain
Phone: +34 91-725-90-88 Telefax: +34 91-725-98-97

SPECIFICATIONS OF FELCOM 15

,
(PSDN)
, Special Access Code
(DNID)
5 kHz
BPSK 600/1200 symbols/s
17 W at final amplifier
1 port for EGC printer, PC
1 port for PC or LAN
1 port
BWC, BWR, DBT, GGA, GSV, GLL,
MTW, RMA, RMB, RMC, WPL,
VDR, VTG, ZDA
10.4" color LCD (207 x 160 mm)
72 characters/line, 25 lines/screen
IC-215
122 4.8"
320 12.6"
20
38
300 11.8"
1.5"
240 9.5"
58
282 11.1"
2.3"
FURUNO DANMARK AS
Hvidovre, Denmark
Phone: +45 36 77 45 00 Telefax: +45 36 77 45 01
FURUNO NORGE A/S
Ålesund, Norway
Phone: +47 70 102950 Telefax: +47 70 127021
FURUNO SVERIGE AB
Västra Frölunda, Sweden
Phone: +46 31-7098940 Telefax: +46 31-497093
FURUNO SUOMI OY
Helsinki, Finland
Phone: +358 9 341 7570 Telefax: +358 9 341 5716
Printer PP-510
Mandatory for EGC operation as required by IMO Res. A.664 (16).
Printing paper:
Power Supply
Environment (IEC 60945 test method)
Temperature:
Equipment List
Standard
1. Antenna Unit with 30 m Cable
2. Terminal Unit with Keyboard
3. Junction Box
4. Distress Alert/Received Call Unit
5. Alarm Unit
6. Installation Materials and Spare Part
Option
1. GPS Board Kit OP16-24
2. Printer PP-510
3. Software for PC
4. Antenna Cable 8D-FB-CV (50 m), 12D-FB-CV (100 m)
5. AC/DC Power Supply Unit PR-240*
* Required for EGC, IMO Res. A.664 (16)/4 to operate on ship's mains

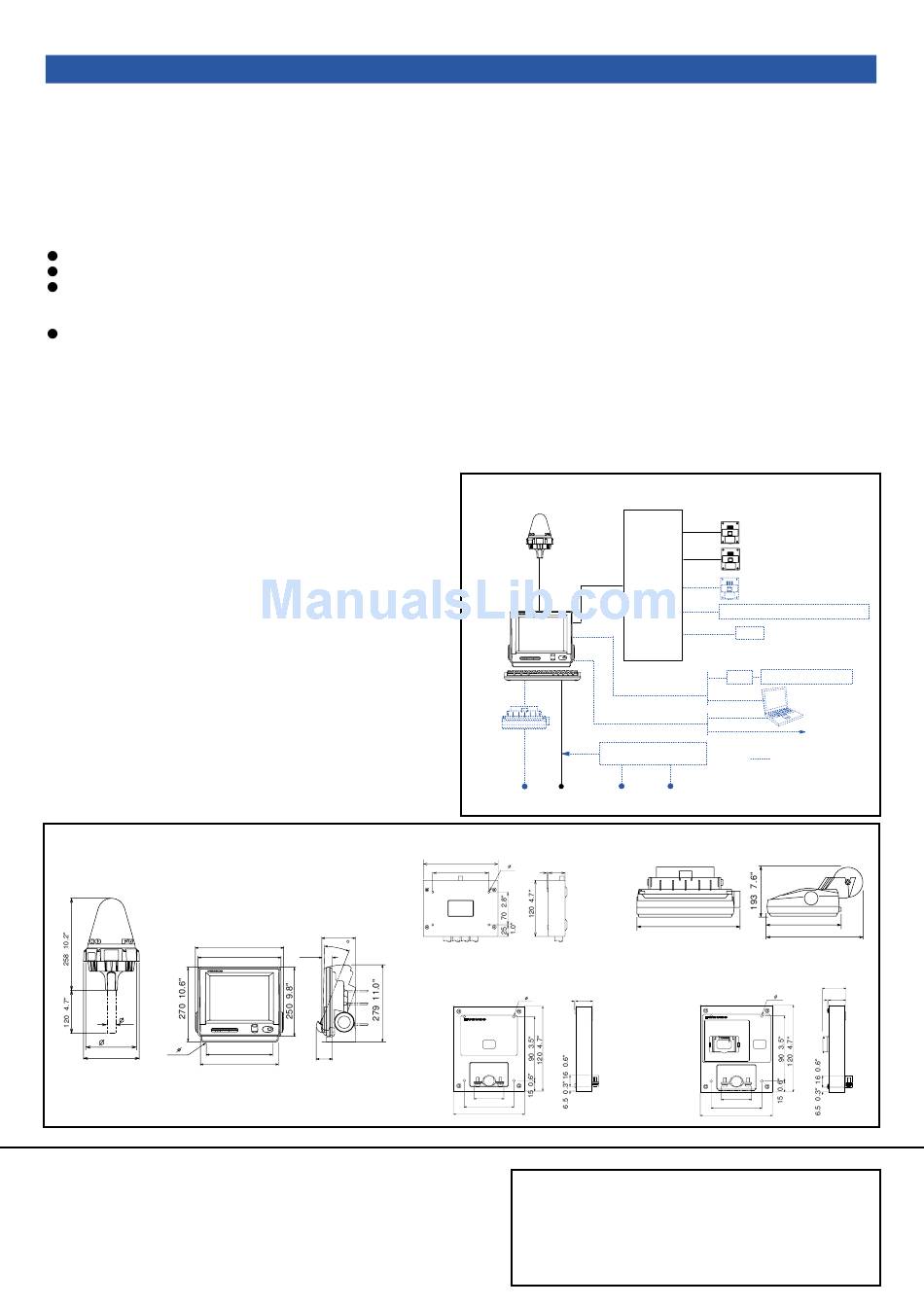

INTERCONNECTION DIAGRAM
Antenna Unit
IC-115
Terminal Unit
IC-215
Printer
PP-510
24 VDC 12-24 VDC
Junction Box IC-315
0.7 kg 1.5 lb
160 6.3"
4- 5
40 1.6"
120 4.7" 3 0.1"
Alarm Unit IC-306
0.33 kg 0.7 lb
2 24 0.9"
4- 4
0.1"
INMARSAT MES INMARSAT MES
ALARM
RESET
42 1.7"
70 2.8"
100 3.9"
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
03025N Printed in Japan
Rolled, impact dot, 216 mm wide, 80
characters/line
12-24 VDC, 160 W (TX), 75 W (RX)
-15°C to +55°C (Protected units)
-25°C to +70°C (Exposed units)
1 unit
1 unit
1 unit
1 unit
1 unit
Distress Alert/Received
Call Unit IC-305
Alarm Unit
IC-306
Junction Box
Alarm Unit
IC-315
IC-306
Distress Message Controller DMC-5
IEC 61162
GPS
I/F
RS-232C
Ethernet
(10Base-T)
AC/DC Power Supply Unit
PR-240
*For GMDSS,
*
A.664(16)/4 to operate
115/230 VAC 24 VDC
on ship's main source
Printer PP-510
3.3 kg 7.3 lb
380 15.0"
Distress Alert/Received Call Unit
IC-305
0.34 kg 0.8 lb
INMARSAT MES INMARSAT MES
Keep pressed for 4 s in
case of DISTRESS.
The alert is transmitted
with steady lighting.
RECEIVED
ALARM
DISTRESS
ACK
42 1.7"
70 2.8"
100 3.9"
EGC Printer PP-505
PC
LAN
Option
290 11.4"
375 14.5"
32 0.9"
2
24 0.9"
4- 4
0.1"
