Hi-Speed USB 2.0 Premium Hub Guarantees superior connection for all USB 1.1 and USB 2.0 devices User Manual F5U231vuk1 5250uk_F5U231vuk1.indd 1 23/6/06 12:06:29 pm... -
Page 2: Table Of Contents
Table of Contents Introduction ....................1 Overview ..................... 2 Features ....................2 Package Contents ................3 Technical Specifications ..............3 Overview ..................... 3 Installation ....................4 Connecting USB devices to the Hub ............5 Determining the speed of connected devices ........6 Information .................... -
Page 3: Introduction

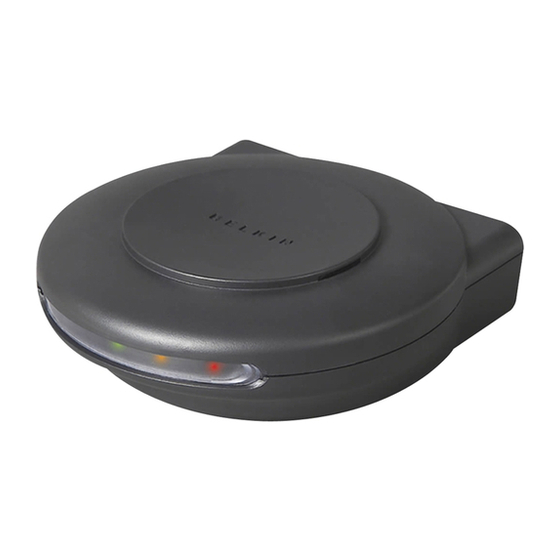

Introduction Welcome to Belkin USB 2.0! Congratulations and thank you for purchasing the Belkin Hi-Speed USB 2.0 Premium hub. The Hub provides four downstream USB ports that offer backward-compatible, Plug-and-Play connectivity with all USB devices, including USB 1.1 (or low- and full-speed) devices, as well as with USB 2.0 (or high-speed) devices. -
Page 4: Overview
Overview In contrast, a traditional four-port USB 2.0 hub provides only 12Mbps of bandwidth for use by low- and full-speed devices, and this bandwidth is shared by each of the four ports. The Premium hub delivers up to 48Mbps of bandwidth, 12Mbps for each port!* In addition to the “Quad TT”... -
Page 5: Package Contents
Overview Package Contents • High-Speed USB 2.0 Premium hub • C Power Adapter • User Manual Technical Specifications Upstream Ports Downstream Ports Per-Port Voltage DC +5V Per-Port Current 500mA (max) (self-powered mode) Power Mode Self-powered/bus-powered Operating Temperature 5º C ~ 40º C Storage Temperature -20º... -
Page 6: Installation
PCI card vendor for an updated USB 2.0 driver. The Belkin USB 2.0 driver supports all competitive cards based on the NEC host controller with the exception of Adaptec. The most recent Belkin driver is available at www.belkin.com. -
Page 7: Connecting Usb Devices To The Hub
Connecting USB devices to the Hub 1. Plug the USB-A connector of the USB device(s) you wish to connect into any of the Hub’s available downstream ports. 2. Follow the installation instructions provided by the manufacturer of the device. Important Note: When moving a device from one port on the Hub to another, it may be necessary to reinstall the USB drivers for that device. -
Page 8: Determining The Speed Of Connected Devices
1. The USB 2.0 specification includes three separate modes of data transmission. These are defined as low-speed (1.5Mbps), full-speed (12Mbps), and high-speed (480Mbps). The Belkin Premium hub is the only USB hub on the market today that provides a visual indication of a connected device’s speed. -
Page 9: Information
Belkin Corporation warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. - Page 10 Disposal of Waste Equipment by Users in Private Households in the European Union: For more information, go to www.belkin.com/environmental © 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Mac OS and Mac are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
