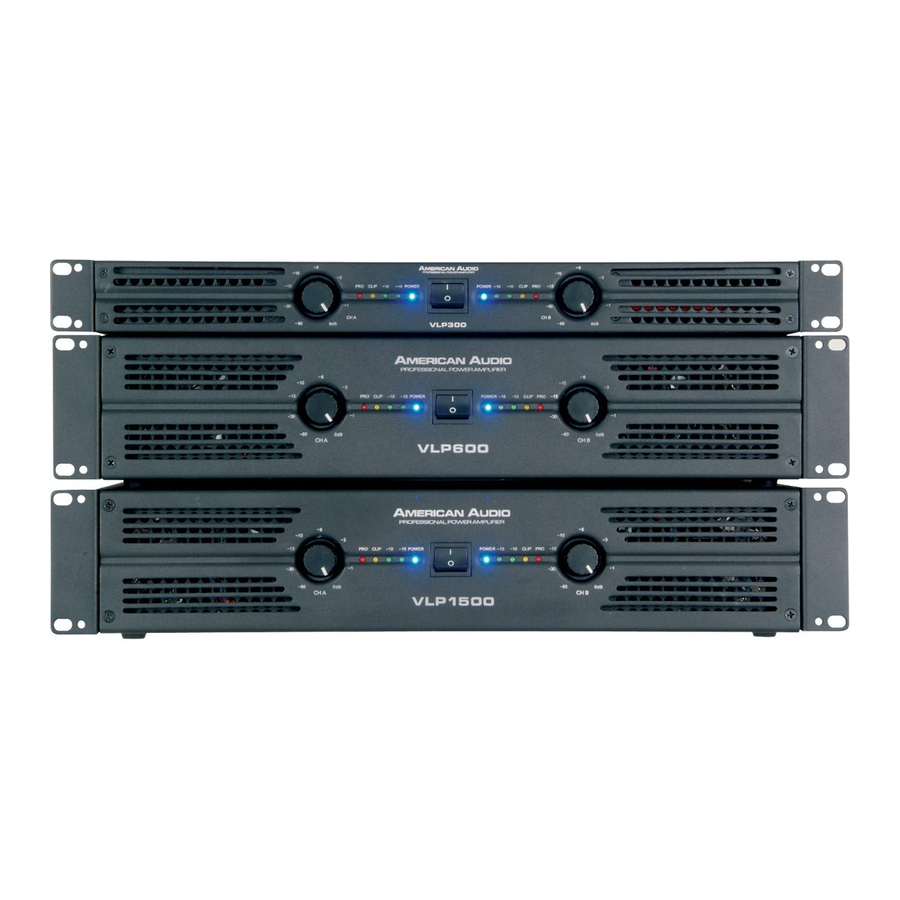

Page 1: User Instructions

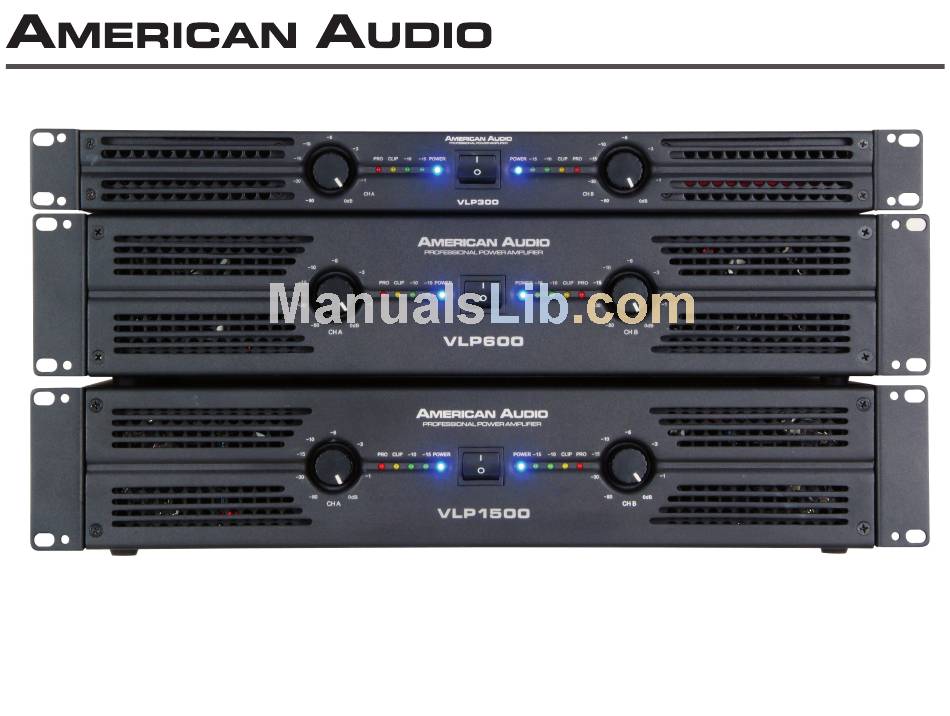

AmericAn Audio ® 4295 charter Street Los Angeles ca. 90058 rev. 8/08 Professional Power Amplifier VLP Series User Instructions... - Page 2 Reparaturen nur von qualifizierte Fachpersonal durchführen lassen. aChtUng: Um einen elektrischen Schlag oder Feuergefahr zu vermeiden, sollte diesen Gerät nicht dem Regen oder Feuchtigkeit ausgesetz werden. Vor Inbetriebnahme unbedingt die Bedienungsanleitung lesen. ©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 2...
-
Page 3: Table Of Contents
Amplifier Features...14 Speaker Setup...15 Warranty...16 Specifications...17 ©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 3 FOR OPTIMUM PERFORMANCE AND RELIABILITY DO NOT PRESENT THE AMPLIFIER WITH A SPEAKER LOAD OF LESS THAN 2 OHMS OR ANY... -
Page 4: Important Precautions
C. The appliance has been exposed to rain or water. D. The fixture does not appear to operate normally or exhibits a marked change in performance. ©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 4 Introduction: congratulations and thank you for purchasing this American Audio vLp series™... -
Page 5: Front Panel
(clip). At this point channel one will be- gin to distort. under heavy clipping activity lower the channel one gain ©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 5 PROFESSIONAL POWER AMPLIFIER... - Page 6 This ©American Audio® - www.americanaudio.com - VLP Series™ Power Amplifier User Manual Page 6 PROFESSIONAL POWER AMPLIFIER...
-
Page 7: Rear Panel Control
American Au- dio® service technician. ©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 7 34 33 30. Channel 1 output Jack/5 way Binding Post - connect to your speaker’s input jack. - Page 8 47. Channel 1 output Jack/5 way Binding Post - connect to your speaker’s input jack. Red is positive signal and Black is negative signal. ©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 8 48. Channel 1 Speakon output - optional speaker output connections. use pins 1+ and 1- of this 4-pole Speakon connector to connect to your speaker’s...
-
Page 9: Inputs
©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 9... -
Page 10: Mono Bridge Connections
You can purchase the Speakon NL4FC connectors from your local audio dealer. ® ©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 10 connector provides the most convenient solution to this problem, eliminating the need for ® Figure 9 Typical speaker output using bare wire. -
Page 11: Speakon Output Connector Assembly
7. Slide the coupler (e) along the cable and screw it onto the end of the housing (A). Before tightening, you may want to test the connector to make sure it has been assembled properly. ©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 11 NL4FC Figure 11 ®... -
Page 12: Operating Modes
To run in parallel mono mode connect your system as you would if you were going to run in stereo mode. Then flip the mode switch to “MONO.” Be sure the amp is off or the power is disconnected before making any changes. ©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 12... -
Page 13: Limiter
"clip" Led and “protect" Led will light simultaneously indicating amplifier fault. All channel output during the “Short circuit protection" will be interrupted (i.e. no sound out ©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 13... -
Page 14: Thermal Protection
Led IndICatorS - Each channel has five LEDS. Two LEDs indicate signal level activity; two green LEDs. One yellow LED indicates signal clipping. one red Led indicates protections mode for shorts/ overload. one blue Led indicates power for each individual chan- nel. ©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 14... -
Page 15: Typical Stereo Output Connections
1 inputs only (XLr or 1/4” Jacks) Figure 16 use the two positive binding post termainals (red) for speaker output. ©American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 15 tYpICaL stereo oUtpUt ConneCtIons Use Speakon or Banana Jacks tYpICaL Mono brIDge set-Up... -
Page 16: 1-Year Limited Warranty
C. This warranty is void if the serial number has been altered or removed; if the product is modified in any manner which American Audio® con- cludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the American Audio®... -
Page 17: Specifications
13.25” x 19” x 1.75” (LxWxH): 336 x 482 x 44mm Weight: 24lbs/11Kgs American Audio® - www.americanaudio.com - vLp Series™ power Amplifier user manual page 17 VLP 600 1kHz, 0.1% THD 1kHz, 0.1% THD (Bridge Mode, Mono) 600W RMS @ 8 Ohms, 1kHz, 1% THD Less Then 0.1% (20Hz - 20kHZ @... - Page 18 ©American Audio® American Audio® is part of the American dJ® Group of companies American DJ® World Headquarters: 4295 charter Street Los Angeles, cA 90058 uSA Tel: 323-582-2650 / Fax: 323-582-2610 web: www.americanaudio.com / e-mail: info@americanaudio.com...
