Summary of Contents for Heat Controller VMH 09

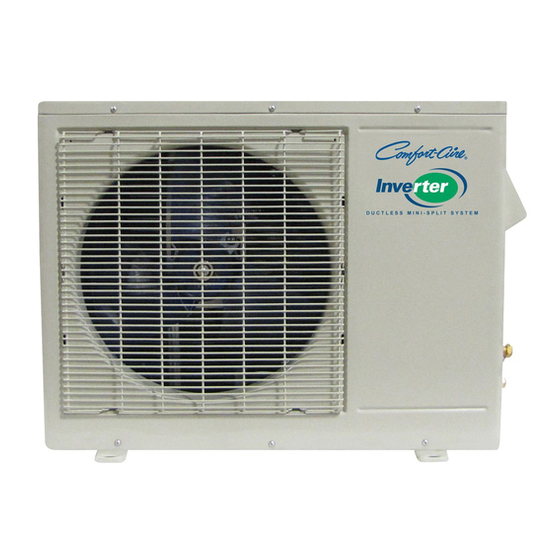

- Page 1 OWNER’S MANUAL VMH 09/12/18/24 Version C Inverter Single Zone Ductless Mini-Split Heat Pump Heat Controller, Inc. • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com...
-
Page 2: Table Of Contents
VMH Inverter Mini-Split OWNER’S MANUAL Heat Controller, Inc. Table of Contents Safety Precautions Warning and Cautions ................2 Operating Instructions Identification of Parts ................3 Display and Remote Controller Features ..........3 Operating Conditions and Manual Operation...........5 Airflow Direction Control ................6 Operation Modes ..................7 Care and Maintenance Care and Maintenance................8... -
Page 3: Safety Precautions Warning And Cautions
Heat Controller, Inc. OWNER’S MANUAL VMH Inverter Mini-Split To prevent injury to the user, other people and/or to property, the following instructions must be followed. Incorrect operation due to ignoring these instructions may cause harm or damage. The seriousness is classified by the following indications: WARNING! This symbol indicates the possibility of death or serious injury. -
Page 4: Identification Of Parts
VMH Inverter Mini-Split OWNER’S MANUAL Heat Controller, Inc. Identification of Parts Base valve (Heat Pump mode. - Page 5 Heat Controller, Inc. OWNER’S MANUAL VMH Inverter Mini-Split Displayed when TURBO function is selected in cooling or in heating modes. This air conditioner is equipped with an ionizer, which generates ions to remove microscopic particles from the air. Rooms become healthier for those suffering from This display is separated into five zones.
-
Page 6: Operating Conditions And Manual Operation
VMH Inverter Mini-Split OWNER’S MANUAL Heat Controller, Inc. NOTE: This manual does not include Remote Controller Operations, see the <<Remote Controller Manual>> packaged with the unit for details. See chart below for operating conditions: Ambient Operating Conditions Mode Temp Fahrenheit... -
Page 7: Airflow Direction Control
Heat Controller, Inc. OWNER’S MANUAL VMH Inverter Mini-Split NOTE: The remote controller provided with your unit may differ in appearance. Please refer to the <<Remote Controller Manual>> supplied with the unit to operate the unit properly. ( C) • Adjust the air flow direction properly otherwise it might cause discomfort or uneven room temperatures. -
Page 8: Operating Modes
VMH Inverter Mini-Split OWNER’S MANUAL Heat Controller, Inc. OPERATING MODES AUTO operation • When you set the air conditioner to AUTO mode, it will automatically select cooling, heating (heat pump models only), or fan only operation depending on what temperature you have selected and the actual room temperature. -
Page 9: Cleaning The Air Filter
Heat Controller, Inc. OWNER’S MANUAL VMH Inverter Mini-Split NOTE: Supply power must be disconnected before cleaning the indoor unit. Do not use an overly wet cloth to clean the unit as it may damage the electronic components. A damp cloth can be used if needed. -
Page 10: Care And Maintenance
VMH Inverter Mini-Split OWNER’S MANUAL Heat Controller, Inc. CARE AND MAINTENANCE 3. Remove the AIR FILTER from the indoor unit. • Clean the AIR FILTER once every two weeks. • Clean the AIR FILTER with a vacuum cleaner or with water, then dry it in a cool place 4. -
Page 11: Typical Operational Occurrences
Heat Controller, Inc. OWNER’S MANUAL VMH Inverter Mini-Split Typical Operational Occurrences The following events may occur during normal operation. 1. Protection of the air conditioner. Compressor protection • If the unit is stopped and then immediately restarted again, the compressor will not operate for about 3 minutes in order to protect the compressor. - Page 12 VMH Inverter Mini-Split OWNER’S MANUAL Heat Controller, Inc. 8. Heating mode (heat pump models only) • The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit dur- ing heating operation. When the outdoor temperature falls, heat drawn in by the air conditioner decreases accordingly.
-
Page 13: Troubleshooting Tips
Heat Controller, Inc. OWNER’S MANUAL VMH Inverter Mini-Split Troubleshooting Tips Stop the air conditioner immediately if one of the following errors occurs. Disconnect the power and contact an authorized servicer. If any of the following error codes appear on the LED window, disconnect the power and contact an authorized servicer: E0, E1, E2, E3, E4, E5, E6, E7, E8, P0, P1, P2, P3, P4. - Page 14 09/2010 04/2009...
