Summary of Contents for Alpine CDE-100EUB

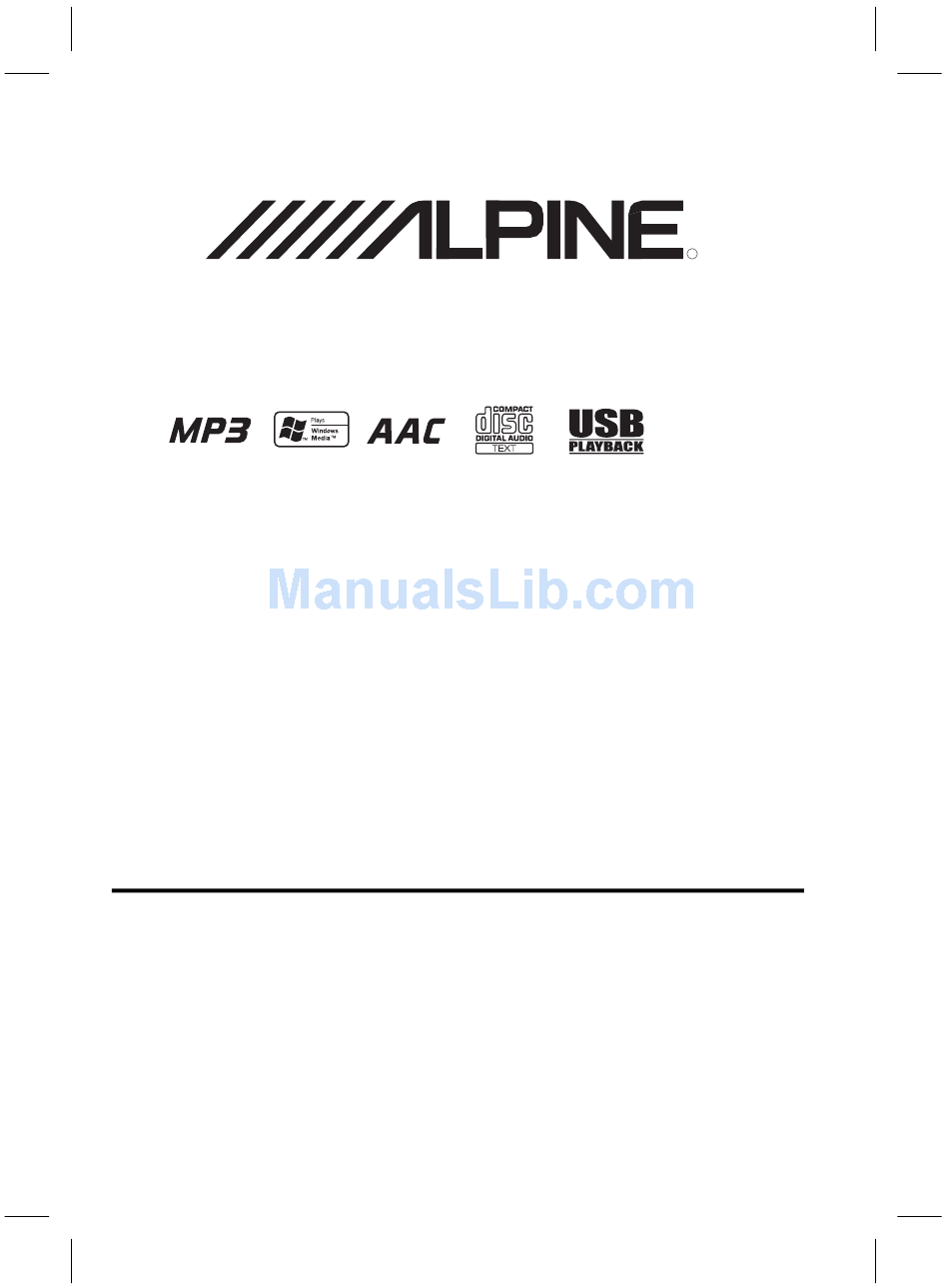

  • Page 1 MP3/WMA/AAC CD Receiver CDE-100EUB/CDE-100E • OWNER’S MANUAL Please read before using this equipment. ALPINE ELECTRONICS OF ASIA PACIFIC CO.,LTD. ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. 555 Rasa Tower 1, Unit 2601-2602, 26th Floor, 161-165 Princes Highway, Hallam Phaholyothin Road, Chatuchak, Chatuchak, Bangkok 10900, Thailand...
  • Page 3: Operating Instructions

    ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE. Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Any function that requires your prolonged attention should only be Alpine Service Centre for repairing.
  • Page 4 We Use of special shape discs may cause damage to the mechanism. recommend not using these accessories on discs played in Alpine CD players. Transparent Sheet Disc Stabilizer...
  • Page 5 • Do not touch the surface. • Do not expose the disc to direct sunlight. Alpine accepts no responsibility for lost data, etc., even if data, etc. • Do not affix stickers or labels. is lost while using this product.
  • Page 6: Getting Started

    (Release) at the upper right side until the front panel pops out. Controllable with Remote Control This unit can be controlled with an optional Alpine Grasp the right side of the front panel and pull it out. remote control. For details, consult your Alpine dealer.
  • Page 7: Presetting Stations Automatically

    • If no stations are stored, the radio will return to the original station you were listening to before the auto memory procedure began. Preset buttons (1 through 6) Tuning to Preset Stations * This illustration is CDE-100EUB. Press BAND/ repeatedly until the desired band Listening to Radio is displayed.
  • Page 8: Repeat Play

    File number Displayed only when a disc has been inserted. display display Displayed only when USB memory is connected (CDE-100EUB only). • Press VIEW to switch the display. See “Displaying the Text” for information about display switching. While playing back MP3/WMA/AAC, press to select the desired folder.
  • Page 9: Random Play

    M.I.X. (Random Play) About MP3/WMA/AAC Press 4(M.I.X.) in the play or pause mode. The “ M.I.X.” indicator lights up, and the tracks (files) on the CAUTION disc will be played back in random sequence. Except for private use, duplicating audio data (including MP3/WMA/AAC data) or distributing, transferring, or copying it, Press 4(M.I.X.) again to cancel.
  • Page 10 Supported playback sampling rates and bit rates Order of files Files are played back in the order that the writing software writes them to the disc. Therefore, the playback order may not be what Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz, is expected.
  • Page 11: Sound Setting

    ROCK JAZZ VOCAL CLUB FLAT(OFF) SOUND * This illustration is CDE-100EUB. Adjusting Bass Level/Treble Level/ Balance (Between Left and Right)/Fader (Between Front and Rear) Press Rotary encoder (AUDIO) repeatedly to choose the desired mode. Each press changes the mode as follows:...
  • Page 12: Other Functions

    Displayed only when a disc has been inserted. MP3/WMA/AAC files. Displayed only when USB memory is connected (CDE-100EUB only). Press VIEW. The display will change every time the button is pressed.
  • Page 13: Usb Memory (Optional)

    RADIO USB* RADIO About MP3/WMA/AAC File of USB Displayed only when a disc has been inserted. Displayed only when USB memory is connected (CDE-100EUB Memory only). To pause playback, press BAND/ Playing back MP3/WMA/AAC MP3/WMA/AAC files are prepared, then stored to a USB Pressing BAND/ again will resume the playback.
  • Page 14: In Case Of Difficulty

    CD insertion not possible. unit is at fault. Otherwise, make sure the rest of your system is properly • A CD is already in the CD player. connected or consult your authorized Alpine dealer. - Eject the CD and remove it. Basic •...
  • Page 15: Indication For Cd Player

    CD. - Connect the USB memory device after storing songs (files). If not ejecting, consult your Alpine dealer. • A USB device that is not supported by the unit is connected. - Connect a USB device that is supported by the unit.
  • Page 16: Specifications

    96 dB Total Harmonic Distortion 0.01% (at 1 kHz) Wow & Flutter Below measurable limits Channel Separation 85 dB USB SECTION (CDE-100EUB only) USB requirements 1.1/2.0 Full Speed Maximum Supply Compatibility 500 mA Front AUX input Input Impedance 10 kohms Allowable external input 2.0 V...
  • Page 17: Installation And Connections

    Do not tap into these leads to provide power for this Bolts or nuts used for the brake or steering systems (or any other unit. When connecting the CDE-100EUB/CDE-100E to the fuse safety-related system), or tanks should NEVER be used for box, make sure the fuse for the intended circuit of the CDE- installations or ground connections.
  • Page 18: Installation

    Caution the corresponding output lead coming from the left When you install this unit in your car, do not remove the rear of the CDE-100EUB/CDE-100E. Connect all detachable front panel. other leads of the CDE-100EUB/CDE-100E according If the detachable front panel is removed during installation, you to details described in the CONNECTlONS section.
  • Page 19 Battery Gray Speakers SPEAKER RIGHT FRONT Front Right Gray/Black Violet/Black SPEAKER RIGHT REAR Rear Right Violet Green SPEAKER LEFT REAR Rear Left Green/Black White/Black SPEAKER LEFT FRONT Front Left White Speakers Rear Left Amplifier Rear Right CDE-100EUB only CDE-100EUB only...
  • Page 20 • Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis. • If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise suppressors, contact them for further information.
