INSTRUCTION MANUAL

MANUAL DE INSTRUCCIONES

MANUEL D'INSTRUCTIONS

SF-L6111

FREEZER

CONGELADOR

CONGELATEUR

SANYO Scientific

SANYO E & E America Co.

1062 Thorndale Avenue

Bensenville, IL 60106 USA

Toll-Free USA 800-858-8442

Fax 630-238-0074

Email: info@sanyobiomedical.com

SANYO Canada, Ltd.

300 Applewood Crescent

Concord, Ontario L4K 5C7

905-760-4025

Fax 905-760-9945

Email: info@sanyobiomedical.com

Part No. 8336460149200

08/01/2006

English

Table of Contents

Summary of Contents for Sanyo SF-L6111

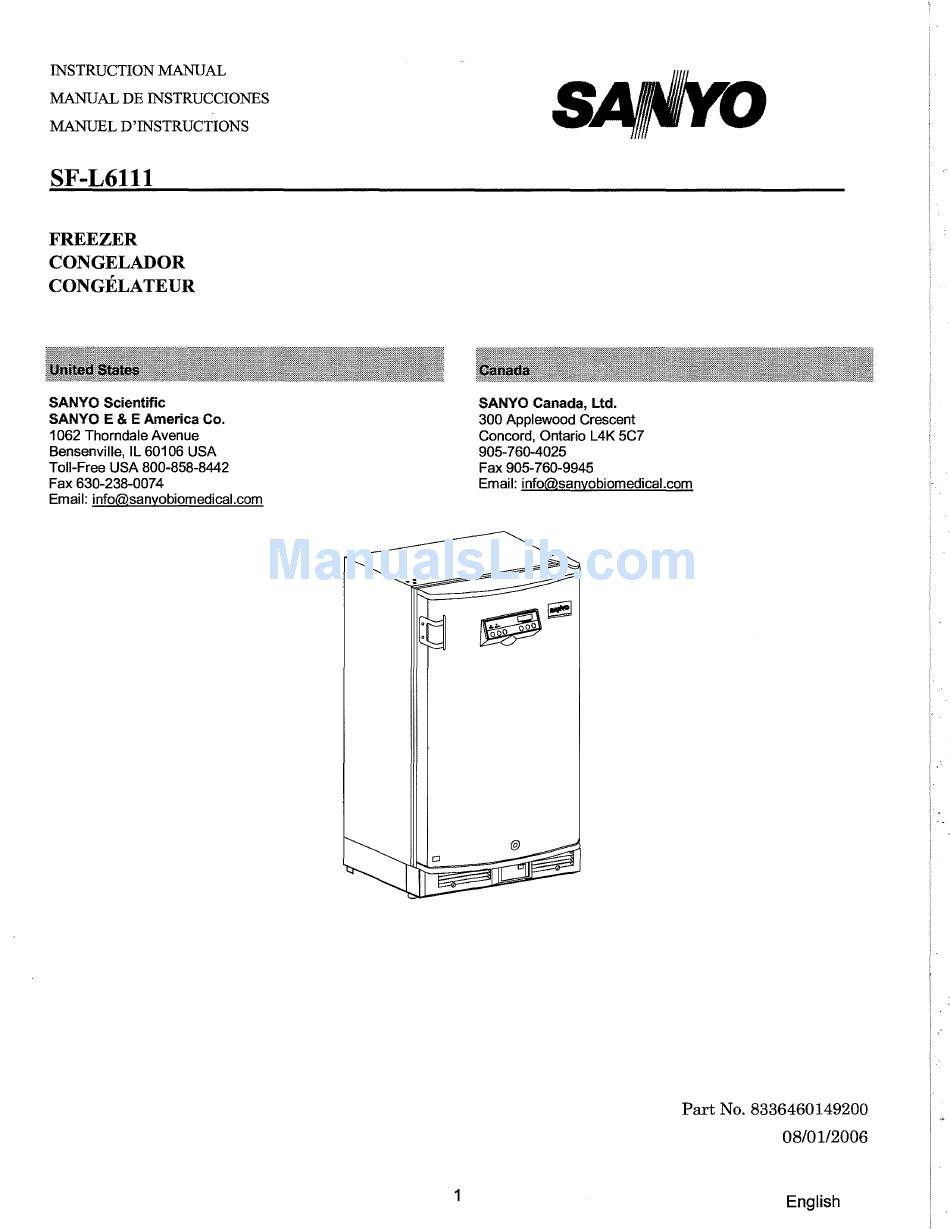

Page 1 MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS SF-L6111 FREEZER CONGELADOR CONGELATEUR SANYO Scientific SANYO Canada, Ltd. SANYO E & E America Co. 300 Applewood Crescent 1062 Thorndale Avenue Concord, Ontario L4K 5C7 Bensenville, IL 60106 USA 905-760-4025 Toll-Free USA 800-858-8442 Fax 905-760-9945 Email: info@sanyobiomedical.com...
Page 2: Table Of Contents
1. No part of this manual may be reproduced in any form without the express written permission of sANYO. 2. The contents of this manual are subject to change without notice. 3. Please contact sANYO if any point in this manual is unclear or if there are any inaccuracies. ©...
Page 3: Precautions For Safe Operation
PRECAUTIONS FOR SAFE OPERATION It is imperative that the user complies with this manual as it contains important safety advice. Items and procedures are described so that you can use this unit correctly and safely. the precautions advised are followed, this will prevent possible injury to the user and any other person.
Page 4 PRECAUTIONS FOR SAFE OPERATION [ _____ Lt_!W_A_R_N_1 N_G ________ ] ' " Do not use the unit outdoors. Current leakage or electric shock may result if the unit is exposed to rain '\.Y water. onl Y qualified engineers or service personnel should install the unit. Installation by unqualified personnel may cause electric shock or fire.
Page 5 PRECAUTIONS FOR SAFE OPERATION l ___ &_!W_A_R_N_IN_G ____ Always disconnect the power supply to the unit prior to any repair or maintenance of the unit in order to prevent electric shock or injury. Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance.
Page 6 PRECAUTIONS FOR SAFE OPERATION _CA_U_T_IO_N_J [ _____ 6_! ' " Do not climb onto the unit or do not put articles on the unit. This may cause injury by tipping or damage to the unit. Do not store bottle or cans in the refrigerator. This may cause injury by broken of containers due to the frozen.
Page 7: Cautions For Usage
CAUTIONS FOR USAGE If the unit is unplugged or the power to the unit is interrupted, do not restart the unit for at least 5 minutes. This protects the compressor. 2. This inner cabinet is refrigerated by the forced circulation of cooled air inside the chamber. Ensure that the intake and exhaust vents are not blocked.
Page 8: Environmental Conditions
ENVIRONMENTAL CONDITIONS This equipment is designed to be safe at least under the following conditions: 1. I ndoor use; 2. Altitude up to 2000 m; 3. Ambient temperature 15°C to 26°C; 4. Maximum relative humidity 75 for temperature up to 26 DC; 5.
Page 9 FREEZER COMPONENTS 8. Shelves 10. Temperature sensor (behind the fan cover) 9. Magnetic door gasket . - - 6. Remote alarm terminal (behind the kick plate) 1. Control panel: The operation status is displayed on this panel; temperature setting is also available. Refer to page 10 for details.
Page 10 FREEZER COMPONENTS Control panel -, I ALARM DOOR TEMPERATURE(-C) 1. Alarm test key (ALARM TEST): Buzzer will sound and remote alarm will be activated by pressing this key. Pressing this key second time will deactivate the alarm. 2. Alarm buzzer stop key (BUZZER): Press this key to silence the buzzer in the event that the alarm operates and buzzer sounds.
Page 11: Installation
INSTALLATION Installation site To operate this unit properly and to obtain maximum performance, install the unit in a location with the following conditions: 1. A location not subjected to direct sunlight Installation in a location subjected to direct sunlight might lead to inadequate cooling. 2.
Page 12: Start-Up Of Unit
INSTALLATION Installation 1. Remove the packaging materials and tapes Remove all transportation packaging materials and tapes. Open the doors and ventilate the unit. If the outside panels are dirty, clean them with a diluted neutral dishwashing detergent. (Undiluted detergent can damage the plastic components. For the dilution, refer to the instruction of the detergent.) After cleaning with the diluted detergent, always wipe...
Page 13: Operating Instructions
OPERATING INSTRUCTIONS Temperature setting Table 1 shows the basic operation method. Perform key operation in the sequence indicated in the table. The example in the table is based on the assumption that the freezer temperature is -25°C. The unit is set at the factory at -20 °C. Note: Table 1 Basic operation procedure (Example of setting: Freezer @ -25°C) Operation...
Page 14 OPERATING INSTRUCTIONS Offset The difference between chamber and indicated temperature can be arranged by key operation. As an example, Table shows the procedure in case actual freezer temperature is and displayed temperature is change the displayed temperature to able Offset setup procedure Operation Key operated Display after the key operated...
Page 15 OPERATING INSTRUCTIONS Key lock operation This unit incorporates a key lock feature that can inhibit tampering using the keys on the control panel. The key lock is set to OFF at the factory. Display Mode Function Key lock OFF Temperature change enabled Key lock ON Temperature change disabled Table 3 Key lock setup procedure (Example:...
Page 16: Alarms And Safety Functions
ALARMS AND SAFETY FUNCTIONS This unit has the alarm and safety functions shown in Table 4, and also a self-diagnostic function. T bl 4 arms an sa ery unc Ions Kind of alarm Situation Indication Buzzer Safety operation or safety lights up.
Page 17 While you are defrosting ..Freezer is desigried to send a buzzer message (but not remote alarm) for every 30 minutes to remind that the defrosting is in process, if the door is kept open. We recommended that you would check the freezer at each buzzer to assure the water absorbing material is dry enough to continue defrosting.
Page 18: Maintenance
MAINTENANCE &WARNING Always disconnect the power supply to the unit prior to any repair or maintenance of the unit in order to prevent electric shock or injury. Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance.
Page 19: Troubleshooting
TROUBLESHOOTING If the unit malfunctions, check the following potential causes before calling for service. In the case of inadequate refrigeration or freezing, transfer the stored items to another freezer before checking. If nothing operates even when the unit is plugged in 1.
Page 20: Specifications
SPECIFICATIONS Name Laboratory Freezer SF-L6111 Model 345/8" H x 235/8" W x 25 31/32" D (880 H x 600 W x 652 D (mm)) External dimensions Internal dimensions 2713/16" H x 207/8" W x 175/16" D (706 H x 530 W x 441 D (mm)) 5.5 Cubic Feet (156 liters)
Page 21: Safety Check Sheet
Procedure to be adhered to in order to reduce safety risk indicated in b) above: Date: Signature: Address, Division: Telephone: Product name: Model: Serial number: Date of installation: Laboratory Freezer SF-L6111 Please decontaminate the unit yourself before calling the service engineer. English...
