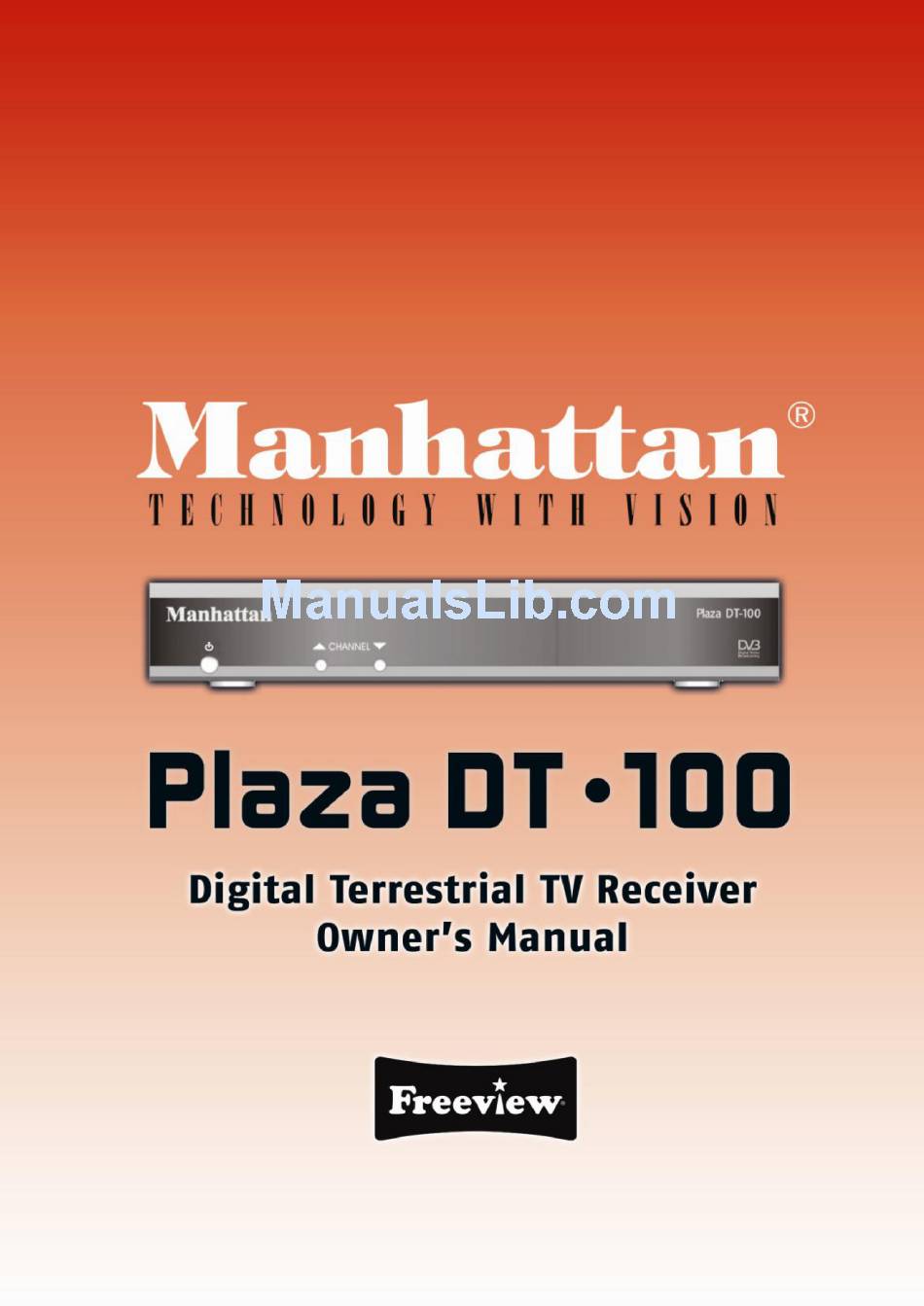

Manhattan Plaza DT-100 Owner's Manual

Digital terrestrial tv receiver
Hide thumbs Also See for Plaza DT-100:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Plaza DT-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Manhattan Plaza DT-100

Summary of Contents for Manhattan Plaza DT-100

  • Page 2: Table Of Contents

    If you come across a word that you do not understand, please refer to the Glossary at the end of this manual. The Plaza DT-100 is a high performance Digital Terrestrial Television (DTT) Receiver, supporting various requirements of broadcast standards. This receiver includes the best possible features together with the most up-to-date electronics hardware and easy to use on-screen menu.

  • Page 3: Connectors And Definition

    C1: TO TV Connect this output to UHF input of your TV. This will allow you to tune your TV to analogue terrestrial programs as well as to use the built-in modulator for viewing the digital terrestrial programs. C2: ANT LOOP IN TV aerial input to modulator. C3: VIDEO Composite video output to connect to TV or AV monitor etc.

  • Page 4: Installation

    13: TV/R To select TV or Radio mode. FAV To access favorite list. Press several times to select the correct FAV list if you have defined more than one. To exit the FAV mode, go to Menu / Favorites and select EPG (Electronic Programs Guide) To view the program event details playing at the time and the following ones.

  • Page 5: Programming The Receiver

    Connecting to VCR Connect your VCR to the VCR SCART on your receiver. PROGRAMMING THE RECEIVER Programming the receiver is achieved through the various menus. In order to simplify this, we will describe accessing a menu as below. Press MENU key to access the main menu. Press Down key to highlight Setup.

  • Page 6: Editing The Channel List

    adjust the antenna. See following options. Option 1 If you know at least one network between channel 21 and 69 is used in your area follow below setup. 1. Go to Menu / Setup / Service Setup / enter PIN / Manual Scan.
  • Page 7 The second is to delete, move or rename existing channels. Creating Favoruite channels list 1. Go to Menu / Favourites. The first line indicates OFF, meaning that the favourites mode is inactive. 2. Press the green key to create a list and then the yellow key to edit its content.

  • Page 8: Adjusting Output Signal To Tv

    5. Press EXIT to quit. Moving channels 1. Go to Menu / Service Organiser. 2. Use the Up / Down keys to select the channel you wish to move. 3. Press the green key and move the channel to the required position with the Up / Down keys.

  • Page 9: Timer Programming For Vcr

    Select another channel using Up / Down keys and you can pre-view its program details in the top left window and then by pressing the INFO key you can also view the picture for that channel in the top right window. Press OK if you wish to change to this channel or press EXIT to go back to previous channel.

  • Page 10: Parental Control

    NOTE: If you switch on the receiver whilst a program is supposed to be recorded, you will be requested to confirm any changes by pressing EXIT. You cannot record a channel other than the one you are watching. To playback a VCR tape, the receiver should be on standby. Simply insert the tape and start playing.

  • Page 11: Assistance And Advice

    3. The menu will disappear and after this the receiver will re- initialize and the welcome page will be displayed. 4. The receiver is now back in its original Factory Default configuration. 5. Press OK to start the full scan of the channels again. ASSISTANCE AND ADVICE FREEVIEW™...
  • Page 12 Some channels are not You are located far away 1.Try indoor amplifier received all. from the transmitter. 2.Try a mast amplifier channels you are receiving 3.Try high gain have adequate antenna. signal and quality levels. The picture on analogue channels is not clear. receive digital experiencing...

  • Page 13: Glossary

    appliances such as washing machines, switches etc often cause fleeting reception problems when using indoor aerial. GLOSSARY Receiver: Equipment that allows you to receive digital TV, like Free To View channels. Analogue Channels: Nature of the signals used for terrestrial television since the middle of the 20th Century.
  • Page 14 CHANNEL LIST...

  • Page 17: General Specifications

    1.8KG ® ® Eurosat and Manhattan are registered trademarks of Eurosat Distribution Ltd. Eurosat reserves the right to alter product specifications without prior notice. The FREEVIEW service is subject to coverage. An aerial upgrade may be required. The FREEVIEW word and logo are trade marks of DTV Services Ltd and are used under...
