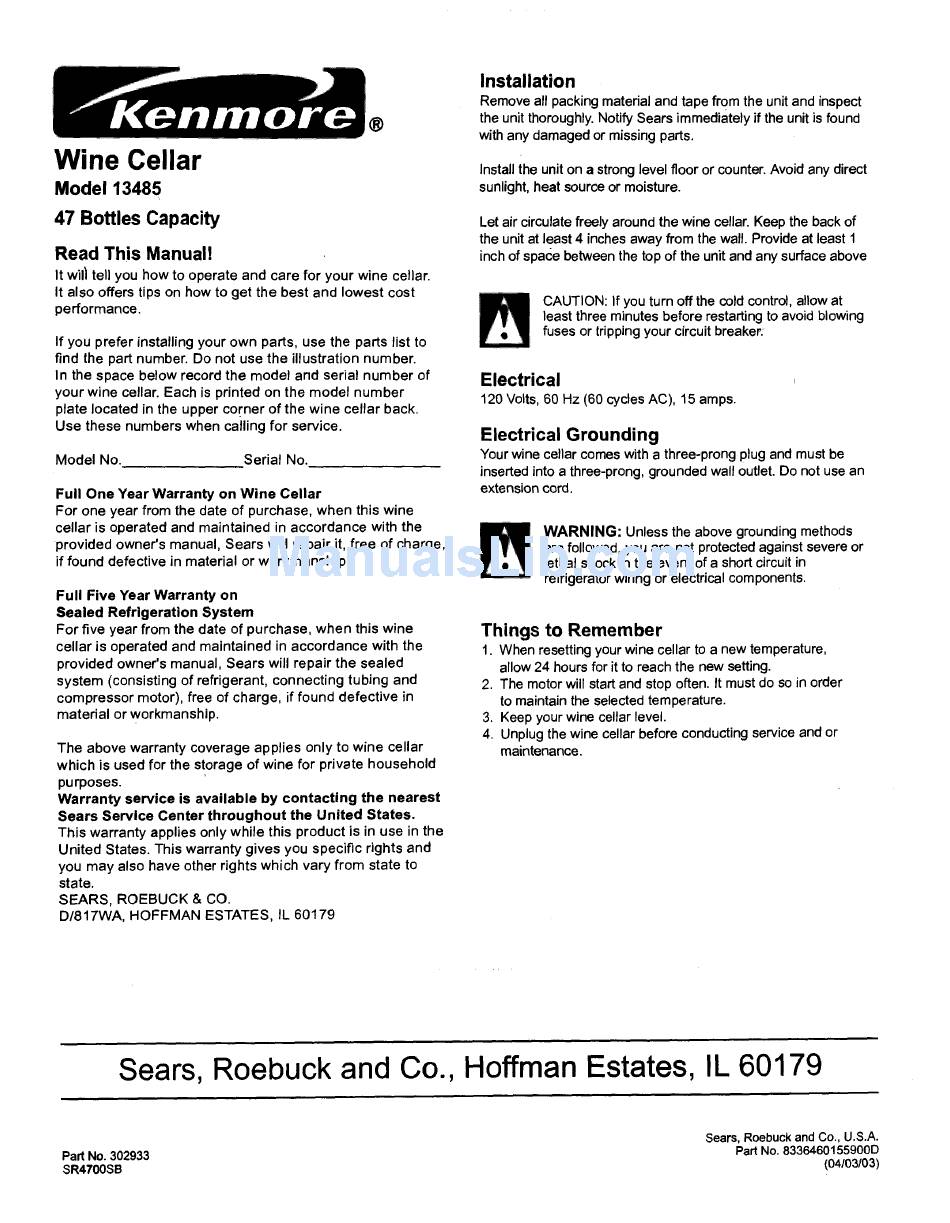

Wine Cellar
Model 13485
47 Bottles Capacity
Read This Manual!
It will tell you how to operate and care for your wine cellar.
It also offers tips on how to get the best and lowest cost
performance.
If you prefer installing
your own parts, use the parts list to
find the part number. Do not use the illustration
number.
In the space below record the model and serial number
of
your wine cellar. Each is printed on the model number
plate located in the upper corner of the wine cellar back.
Use these numbers when calling for service.
Model No.
Serial No.
Full One Year Warranty
on Wine Cellar
For one year from the date of purchase,
when this wine
cellar is operated and maintained in accordance
with the
provided owner's manual, Sears will repair it, free of charge,
if found defective in material or workmanship.
Full Five Year Warranty
on
Sealed Refrigeration
System
For five year from the date of purchase, when this wine
cellar is operated and maintained
in accordance
with the
provided owner's manual, Sears will repair the sealed
system (consisting of refrigerant, connecting tubing and
compressor motor), free of charge, if found defective in
material
or workmanship.
The above warranty coverage
applies
only to wine cellar
which
is used for the storage of wine for private household
purposes.
Warranty
service
is available
by contacting
the nearest
Sears Service
Center throughout
the United States.
This warranty applies only while this product is in use in the
United States. This warranty gives you specific rights and
you may also have other rights which vary from state to
state.
SEARS, ROEBUCK
& CO.
D/817WA,
HOFFMAN
ESTATES,
IL 60179
Installation
Remove all packing material and tape from the unit and inspect
the unit thoroughly. Notify Sears immediately if the unit is found
with any damaged or missing parts.
Install the unit on a strong level floor or counter. Avoid any direct
sunlight, heat source or moisture.
Let air circulate freely around the wine cellar. Keep the back of
the unit at least 4 inches away from the wall. Provide at least 1
inch of space between the top of the unit and any surface above
CAUTION: If you turn off the cold control, allow at
least three minutes before restarting to avoid blowing
fuses or tripping your circuit breaker:
Electrical
120 Volts, 60 Hz (60 cycles AC), 15 amps.
Electrical
Grounding
Your wine cellar comes with a three-prong plug and must be
inserted into a three-prong, grounded wall outlet. Do not use an
extension cord.
WARNING:
Unless the above grounding methods
are followed, you are not protected against severe or
lethal shock in the event of a short circuit in
refrigerator wiring or electrical components.
Things to Remember
1. When resetting your wine cellar to a new temperature,
allow 24 hours for it to reach the new setting.
2. The motor will start and stop often. It must do so in order
to maintain the selected temperature.
3. Keep your wine cellar level.
4. Unplug the wine cellar before conducting service and or
maintenance.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Part No. 302933
SR4700SB
Sears, Roebuck and Co., U.S.A.
Part No. 8336460155900D
(04103103)
