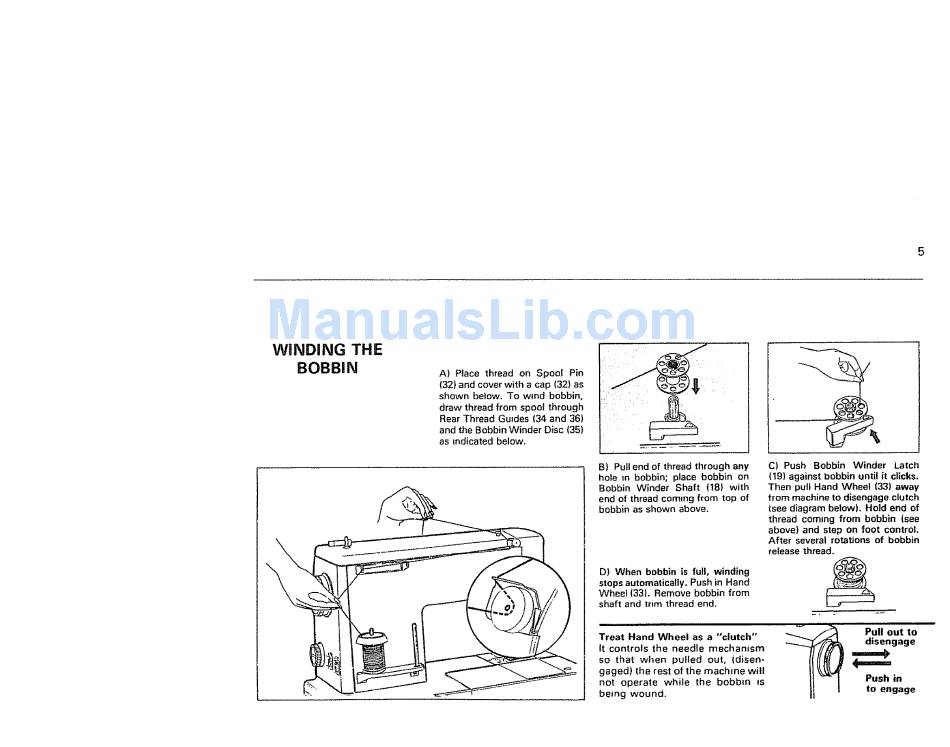

WINDING
THE
BOBBIN
A) Place
thread
on Spool
Pin
(32) and cover with a cap (32) as
shown
below.
To wind
bobbin,
draw thread from spool through
Rear Thread
Guides (34 and 36)
and the Bobbin Winder Disc (35)
as indicated
below.
\
B) Pull end of thread through any
hole m bobbin;
place bobbin
on
Bobbin
Winder
Shaft
(18) with
end of thread coming
from top of
bobbin
as shown above.
C) Push
Bobbin
Winder
Latch
(19) against
bobbin until it clicks.
Then pull Hand Wheel
(33) away
from machine to disengage clutch
(see diagram below),
Hold end of
thread coming
from
bobbin
(see
above) and step on foot control.
After
several rotations of bobbin
re_ease thread.
D) When bobbin
is full, winding
stops automatically.
Push in Hand
Wheel (33L Remove bobbin from
shaft and trim thread end.
Treat
Hand Wheel
as a "clutch"
It controls
the needle
mechanism
so that
when
pulled
out,
(disen-
gaged)
the rest of the machine
will
not
operate
while
the
bobbin
fs
being
wound,
Putt out to
disengage
Push in
to engage
