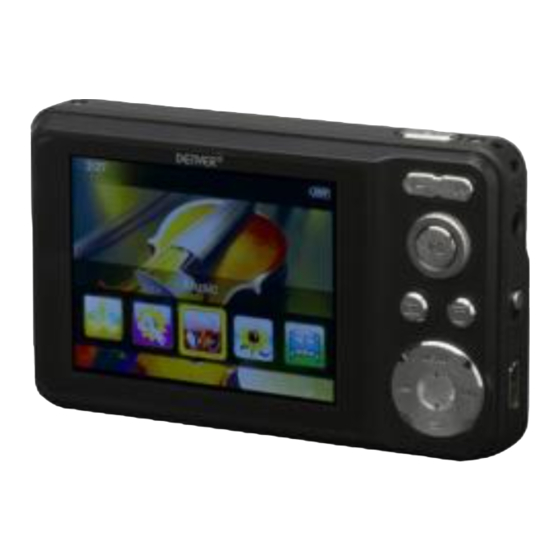

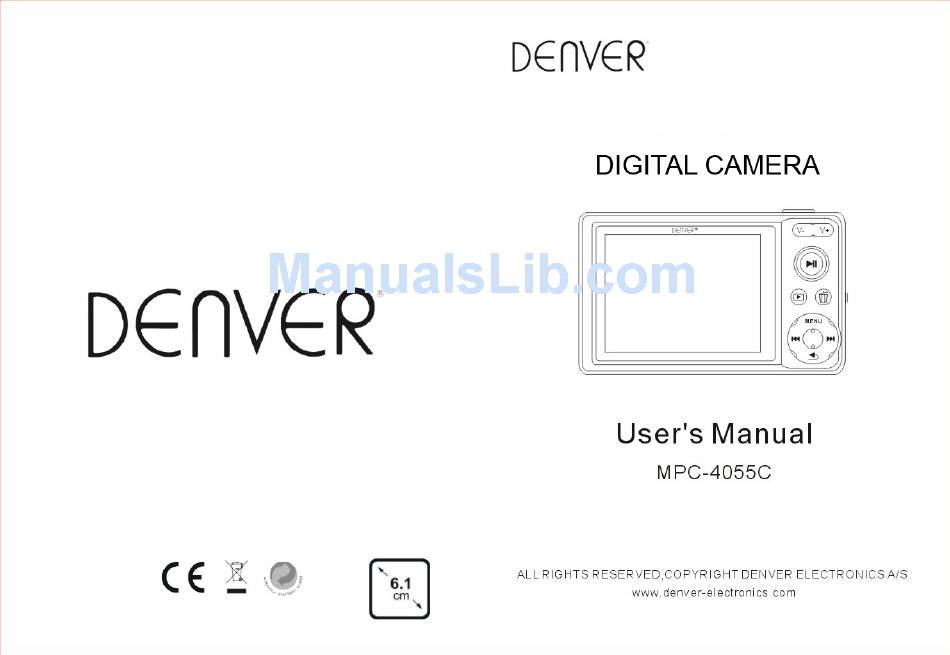

Denver MPC-4055C User Manual
  1. Manuals
  2. Brands
  3. Denver Manuals
  4. Digital Camera
  5. MPC-4055C
  6. User manual

Denver MPC-4055C User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MPC-4055C and is the answer not in the manual?

Questions and answers

Related Manuals for Denver MPC-4055C

Summary of Contents for Denver MPC-4055C

  • Page 2 Attentions To make sure use the player correctly, please read this manual carefully. ℃ ℃ No use the unit above 35 or less than-5 No hit the unit, No strike.. No touch benzene, thinner and other chemicals with the unit No close to strong magnetic&electric field.
  • Page 3 Setting function. Support Recover default setting and USB urgrade setting. Support high speed. USB2.0 transfer...
  • Page 4 1.1 With PC connection, file save & charging Under on/off state, connect unit with PC by usb cable, then unit will display: Power & Data, Power & Play, USB charge ect 3 modes. Press `Next` or `Previous` to choose, then short press `play` button to enter related mode.
  • Page 5 2 、 Power & play: Main used for connection with PC via USB cable for playing directly 3 、 USB charge: When use USB to charge, please turn on/off button to `on` state, then can charge normally, generally it can be full charged after 5-6 hours. Charging state as below: 2 Preparation...
  • Page 6 2.1 Know your player: 2.2 Key function Take photo: for taking photo VOL+ ： Volume up, in taking photo can be use to adjust focus+ VOL- ： Volume down, in taking photo can be use to adjust focus - Play: Power on/off, confirm, play, pause. ：...
  • Page 7 2.3 Key action definition Action Basic operation Short press Press less than 1.2 s Long press Press more than 1.2 s Hold on Press and keep 2.4 Power on/off In off state, push ON/OFF key to ON, then long press Play key to power on. In on state, push ON/OFF key to OFF, then long press Play key to power off.
  • Page 8 2.7 Volume adjust Volume adjust under function interface In the FM, music play and pause interface, video play and pause interface, short press VOL + / VOL- key will show a volume bar, you can adjust the volume. Press Exit key return to play interface.
  • Page 9 Press Previous/Next key to select, press play key to confirm. Press Exit key to return to last menu. List mode Thumbnail (Under Thumbnail mode, press Previous/Next key to move left and right, press V- to move down, press V+ to move up) 3.
  • Page 10 adjust slide gap, it range from 1 ~ 10 seconds. Note: If the picture decoding time is larger than the actual slide set intervals, you should set the actual decoding time as the slide gap. 4. Slide effect In manual mode interface (can not enter submenu when auto playing) press Menu key into sub- menu, press Previous/Next key to select Slide effect and into interface.
  • Page 11 Dir list: Internal Memory, External Memory. Internal Memory is to list the contents of the Video folder. You can find in turn until you have selected a video file, and press Play key to start playing. External Memory is to list the video contents of Micro SD card, it will no show without Micro SD card.

  • Page 12: Camera Mode

    5 Camera mode 5.1 Main menu Under main interface, select Camera, press Play key to enter. It does not support multi-tasking under camera mode 5.2 Basic operation and submenu Basic operation Press V-, V + to adjust the focal length, there are10 levels: 1.0 ~ 2.0, Press Play key or Take photo key to take photo, press Exit key return to last menu.

  • Page 13: Video Recorder Mode

    Can preview photo directly. 2. View parameter Direct access to view parameter, it is convenient for check white balance and brightness etc. functions. 3. Switch to DV Direct access to video. It is convenient and fast. 4. White balance Auto, Indoor, Outdoor. Default as Auto. 5 ．...
  • Page 14 6.1 Main menu Under main interface, select Video Recorder, press Play key to enter. It does not support multi- tasking under video record mode 6.2 Basic operation and submenu Basic operation Press the Play key or Take photo key to record video, press Play key or Take photo key to pause, press Play key or Take photo key again to continue, press Exit key return to record interface and save the recorded file, it will show “Saving file”.
  • Page 15 2. View parameter Direct access to view parameter, it is convenient for check white balance and brightness etc. functions. 3. Switch to DV Direct access to video, it is convenient and fast 4. White balance Auto, Indoor, Outdoor. Default as Auto. 5 ．...
  • Page 16 7 Music 7.1 Main menu Under main interface, select MUSIC, press Play key into All music interface, as below picture: Now Playing: List the last played song list and light on the last played song, if enter it will play continually from last time.
  • Page 17 If not in the AB repeat mode state, repeat mode icon is not displayed; if the song without lyrics, lyrics mark icon is not displayed; if variable speed playback is set to 0, variable speed icon is not displayed.. 7.3 Basic operation and submenu 1.
  • Page 18 Under music play interface, press Menu key will show submenu, then press Previous/Next key to select Set sound, select User EQ. User EQ: According to different customer-loving set different EQ, press Menu key to switch between 80,200,1K,4K,8K,press Previous/Next key to adjust up and down, then press Play key to confirm, press Exit key to return to last menu.
  • Page 19 Under music play interface, press Menu key will show submenu, then press Previous/Next key to select Add to mylist to enter then press Previous/Next key to browse different lists, press Play key to select and press Exit key to return to last menu. Then the current song has been added to this list.
  • Page 20 Enter into recording interface, when stop or pause, press Menu key will show: Record Format, Record quality, Record Gain, Save path. 4. Record Format Enter into recording interface, when stop or pause, press Menu key into submenu, press Previous/Next key to select Record Format, press Previous/Next key to select recorded file format, then press Play key to confirm, press Exit key return to last menu.
  • Page 21 Under main interface, select FM Radio, press Play key into FM Radio, only when system detects earphone has been inserted, can it enter into FM radio interface directly. 9.1 FM main interface FM main interface as below ： 9.2 Basic operation and submenu 1.
  • Page 22 to confirm, press Exit key return to last menu. 5 、 Record Gain After search the channel, press Menu key into submenu, press Previous/Next key to select Record Gain, press Play key to enter, and press Previous/Next key to select and press Play key to confirm, press Exit key return to last menu.
  • Page 23 If reading file, will enter Now reading directly, if not, will enter Dir list. Now reading: Press Play key will enter reading interface directly, continue to read from last time. If empty it will not display. Dir list: Internal Memory, External Memory. Internal Memory is to list the contents of the TXT folder.
  • Page 24 Bookmark, press Play key to confirm and return to reading interface. You can check in tag list and play. 5. Delete the file Under reading, press Menu Key into submenu, press Previous/Next key to select Delete the file, press Play key into delete interface. Press Previous/Next key to select OK or Cancel, if select OK, press Play key it will delete.
  • Page 25 11.3 Calendar Press Previous/Next key to select Calendar, press Play into Calendar interface, operation as below: Press Play key to select the year, month and date, and press Previous/Next key to check. Date and time please set in Setting. 11.4 PC Camera Press Previous/Next key to select PC Camera, press Play key to enter PC Camera, it will show “...
  • Page 26 V+: Move to up Exit key: exit from game. 3 、 Setting Setting: After into game interface, press Previous/Next key to select Snake, press Play key into Snake, press Previous/Next key to select Setting, press Play key to enter. Press Previous/Next key to select level, and press Play key to confirm and return to last menu.
  • Page 27 3 、 Setting Setting: After into game interface, press Previous/Next key to select Boxman, press Play key into Boxman, press Previous/Next key to select Setting, press Play key to enter. Press Previous/Next key to select level, and press Play key to confirm and return to last menu. There are 0.1.2.3.4.5.6.7.8.9 for options.

  • Page 28: File Navi

    V+: rotate Exit key: exit from game 3 、 Setting Setting: After into game interface, press Previous/Next key to select Tetrix, press Play key into Tetrix, press Previous/Next key to select Setting, press Play key to enter. Press Previous/Next key to select level, and press Play key to confirm and return to last menu. There are: 0.1.2.3.4.5.6.7.8.9 for options.
  • Page 29 13.2 Basic operation and submenu Basic operation: Pess Previous/Next key to select the folder you want to navigate, short press Play key to enter, it will list all the files under the folder. Press Previous/Next key to select the file and short press Play key to play the file. Submenu: when checking folder or file, press Menu key will show Move, Copy, Delete, press Previous/Next key to select, press Play key to confirm, and press Exit key return.
  • Page 30 Press V+/V- to change among year/month/day, press Previous /Next key to adjust the data, press Play key to save the setting and exit. 2. Adjust time Select Adjust time in Date and time menu, then press Play key to enter. Press V+/V- to change between hour/minute, press Previous /Next key to adjust the data, press Play key to save the setting and exit.
  • Page 31 1. Insert TV out cable, and switch on the player. 2. Select Setting under main interface 3. Press Play key to enter, and select TV out 4. Press Play key to enter, there are Off, PAL,NTSC for option. Press Play key to confirm after selected.

  • Page 32: Firmware Upgrade

    Micro SD card, Please copy the file out firstly avoid to lose the files. Reset: Reset default settings, the system will resume to the default settings, will not lose the files. 15 Firmware upgrade This player provide the upgrade tool to upgrade or restore the firmware in player 1.

  • Page 33: Video Convert

    16 Video convert 16.1 Support format: This convert tool support below formats of the video files that can be coverted: 1） Extend name as AVI of AVI format file 2) Extend name as ASF, WMV of Windows Media format file Extend name as MPG,MPEG of MPEG1 format file 16.2 Convert operations: 1) In All Program on PC, run Video Converter under Media Player Utilities 5.15 as below:...
  • Page 34 2 ） Click to select the input file you want to convert, click to select the output place, then click the files you want to convert, at that time, the icon will become yellow color, click icon again to set.
  • Page 35 3)The video file can’t be shown on full screen until select the screen width and height is: 320*240, if select 400*240, it also can be shown, but can’t shown fully on screen. Click OK after setting, click icon, the file begin to convert that time, as below: 4 ）...
  • Page 36 17. Others 17.1 Trouble shooting 1) The play doesn't work or nothing shown on LCD Check if have enough power Check the power off setting 2) Fail to format the card Check if insert card correctly 3) Cannot Download file or failed to copy during data transmit Check USB cable, and make sure the player is properly connected to the PC Check if the device is exist Check if have format or not...
  • Page 37 All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city. ALL RIGHTS RESERVED COPYRIGHT DENVER ELECTRONICS A/S...
  • Page 38 WWW.DENVER-ELECTRONICS.COM...
