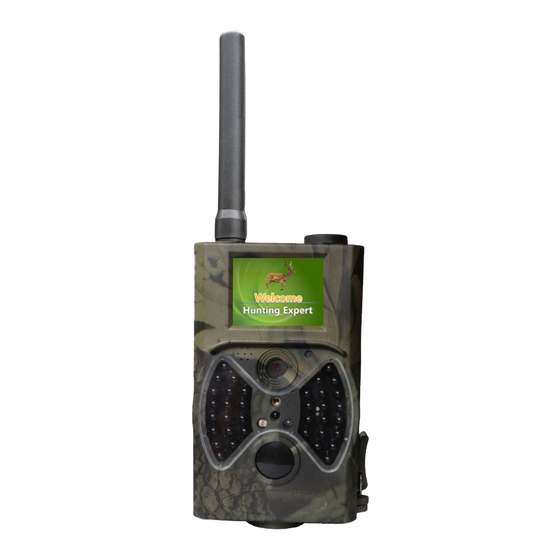

Denver WCM-5003MK3 Quick Start Manual

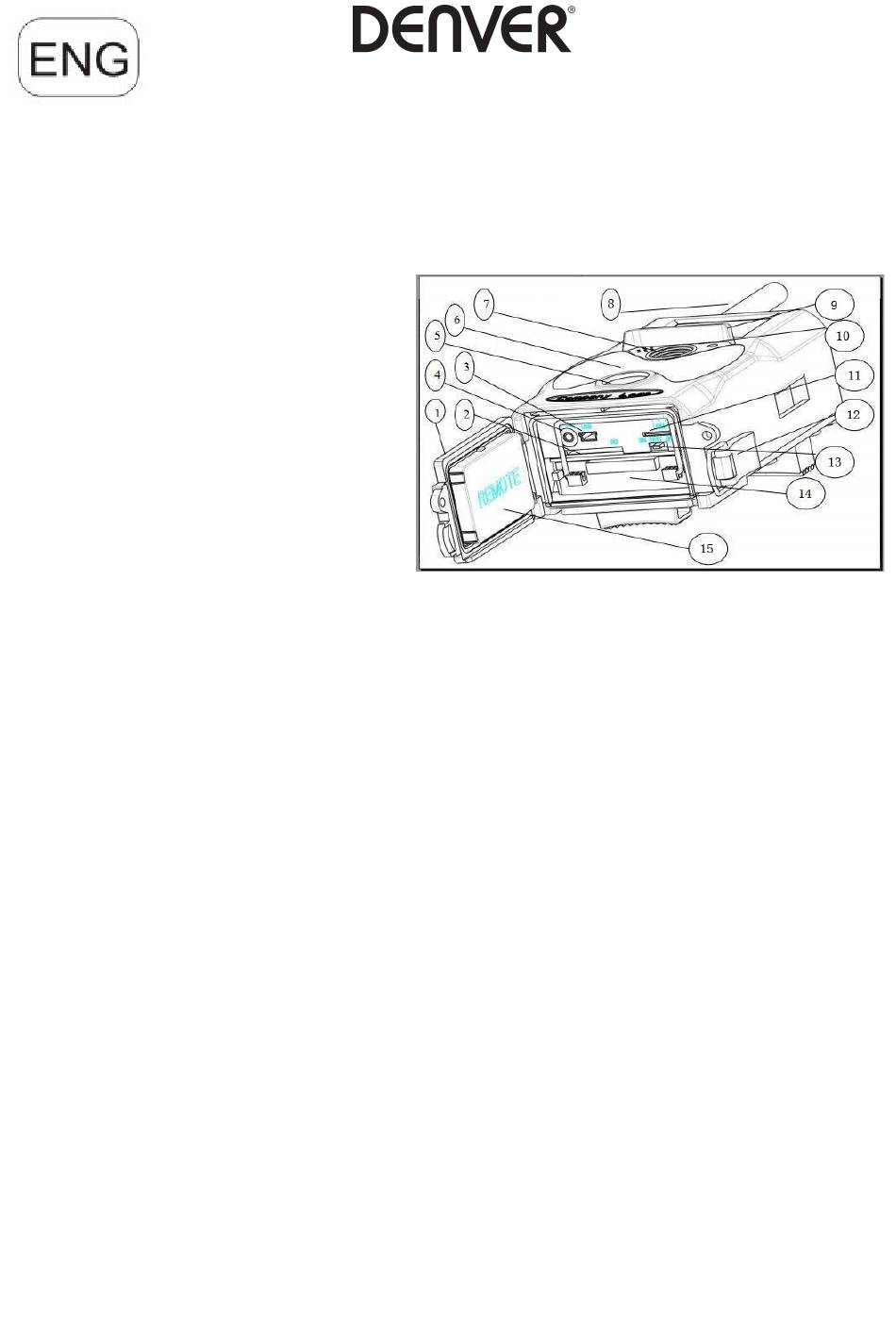

Overview

1) Bottom Cover
3) USB Connector
5) PIR
7) Lens
9) 2 inch color LCD Display
10) Sound recorder
11) SIM card slot
12) Lock
13) Power switch
14) Battery Depot
15) Portable remote controller
The camera has 3 basic operation modes:
1. OFF mode: Power switch is at OFF position.
2. ON mode: Power switch is at ON position.
3. TEST mode: Power switch is at TEST position.
In the above three modes, the OFF mode is the specified safe mode when replacing the microSD or batteries and transporting the camera.
A. There are 3 modes under system setting for your selection.
a. Camera
It only takes photos at a time.
b. it only takes videos at a time.
c. Camera &Video.
It takes photo firstly, then takes videos.
B. There are also 2 ways to take photos or videos.
a. Manually by using the remote control
After sliding power switch to 'TEST', without any menu on the screen, press Shot(Right) on the remote control to take
photos or videos.
b. Automatically
After sliding power switch to ON, the LED blinks 15s, then the camera takes photos or videos when the movement is detected.
C. To view the photos of videos on the camera, please turn off the camera, slide power switch to Test, press OK key on remote
control to enter view model.
a. Photos
Press up or down on the remote control to view the previous of next photo.
b. Videos
Press left button on the remote control to start the video, press left button again to stop.
Note: Press OK to return to screen.
D. Please note, that this is not an error with the Camera:
Heavy rain, fog and drizzle (in the dark) will give white photos without motive.
DENVER WCM-5003MK3
2) microSD Slot
4) TV Out connector
6) Infrared Flash
8) GSM Antenna
Wildkamera
Quick Start Guide
ENG-1
