Denver AC-5000W Quick Start Manual

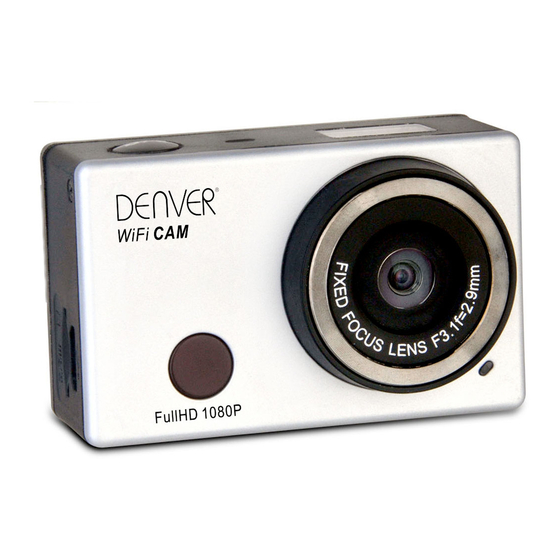

Camera Diagram:

1)Shutter button
2)Microphone
3)LCD display
4)Lens
5)Wi-Fi switch and status indicator (red)
6)Power / Mode button
7)Infrared signal reception light
LCD Display Diagram:
Turn on the Wi-Fi camera, the LCD will display the following status
and settings:
1. Camera mode
2. Video recording mode (default)
3. Wi-Fi icon (display when enabled)
4. Micro SD card icon (display when loaded)
5. Resolution icon:
In camera mode, HI stands for 8 Mega Pixels (interpolated)
(3264x2448), and in video recording mode, it stands for FHD
(1920x1080, 30fps);
In camera mode, LO stands for 5 Mega Pixels (2592x1920), and in
video recording mode, it stands for 720P (1280x720, 30fps);
HILO only displays in video recording mode, standing for 720P
(1280x720,60fps).
6. Mute mode, displays when enabled, and disabled by default.
7. Counter, displays up to 999.
8. Timer, displays hours and minutes.
9. Battery icon: current battery level of the camera.
Note: The above icons may vary according to the status of the
camera.
Using your camera:
1)When you use the camera for the first time, please:
Insert a micro SD or micro SDHC card (not included), as shown in
the following picture.
A Class 10 Micro SD Card is required for this camera.
Turn off the camera before inserting or removing the card.
2)Turn on/off
1, Turn on: press and hold the
displays "ON" and a beep can be heard from buzzer.
2,Turn off: press and hold the
displays "OFF" and a beep can be heard from buzzer.
AC-5000W Quick Start Guide
8)Micro B USB port
9)Mini C HDMI port
10)Micro SD card slot
11)External microphone port
12)Battery cover push
13)LED light
button for about 3 seconds, LCD
button for about 3 seconds, LCD
3)Start to Use
1. Default setting: After turn on the DV, the default setting is as
below:
Video
recording
mode
icon
Video
HI
resolution
Recordin
g time
Micro SD
card icon
Battery
level
Mute icon
Wi-Fi
icon
2.Shooting modes. The DV provides different shooting modes.
Press the button
will show on the DV screen , and other models display on the APP
operation.
Video
Continuou
s shot
Self-timer
3, Video
( With maximum 29 minutes video recording and then stop. Must be
started manually on the camera again.)
To record a video, please check whether the DV is under Video
mode. If the icon
the button repeatedly until it appears.
Start recording: Press and release the
icon and [:] displayed in LCD will flash. At the same time the
red indicator will flash too, meaning the recording is in process.
Stop recording: Press and release the
icon and [:] displayed in LCD will stop flashing. At the same
time the red indicator will stop flashing either, meaning the
recording is stopped.
When the Micro SD card is full, or the battery runs out, ,the
recording will stop automatically, and the recorded video will be
saved before the DV turns off. Stops automatically when 29
minutes of video recording is reached.
ENG 1
The DV is in video recording mode.
FHD: 1080p@30fps
Stands for 0 hour and 00 minute.
Display when a Micro SD card is
inserted, otherwise no display.
Battery is full
The DV is in Mute mode, no Beep will
be heard when pressing the buttons. It
displays only when Mute mode is
activated.
Display when activated.
repeatedly, the following first two modes
HI stands for FHD (1920x1080,30 fps)
video
Lo stands for 720P (1280x720,30 fps)
video
HILO stands for 720P (1280x720,60
fps) video
HI stands for 8M (3264 x 2448)
resolution
Lo stands for 5M (2592 x 1920)
resolution
The DV supports taking 3 photos
continuously (only via App)
In self-timer mode , you can set 0s, 2s
or 10s (only via App)
is not displayed on the screen, press
button, the
button, the
