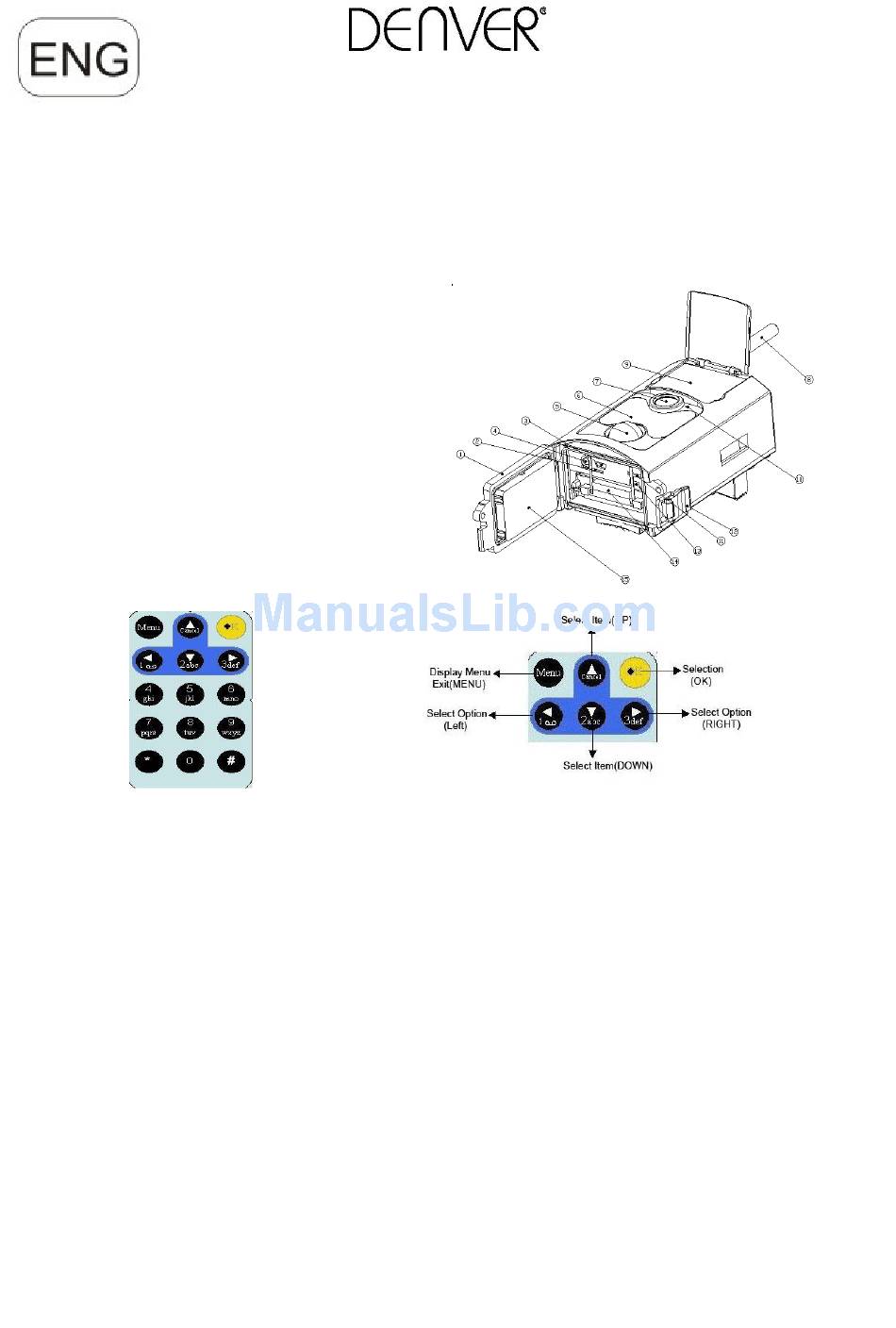

Overview
1) Bottom Cover
3) USB Connector
5) PIR
7) Lens
9) 2 inch color LCD Display 10) Sound recorder
11) SIM card slot
13) Power switch
15) Portable remote controller
The camera has 3 basic operation modes:
1. OFF mode: Power switch is at OFF position.
2. ON mode: Power switch is at ON position.
3. TEST mode: Power switch is at TEST position.
In the above three modes, the OFF mode is the specified safe mode when replacing the microSD or batteries and transporting the camera.
A. There are 3 modes under system setting for your selection.
a. Camera
It only takes photos at a time.
b. it only takes videos at a time.
c. Camera &Video.
It takes photo firstly, then takes videos.
B. There are also 2 ways to take photos or videos.
a. Manually by using the remote control
After sliding power switch to 'TEST', without any menu on the screen, press (OK) on the remote control to take
photos or videos.
b. Automatically
After sliding power switch to ON, the LED blinks 15s, then the camera takes photos or videos when the movement is detected.
C. Interval, timer, format, and password Instruction
1.Interval, There are two part, one is sensing, the other is taking picture/video, When camera is in on mode, camera starts sensing all the

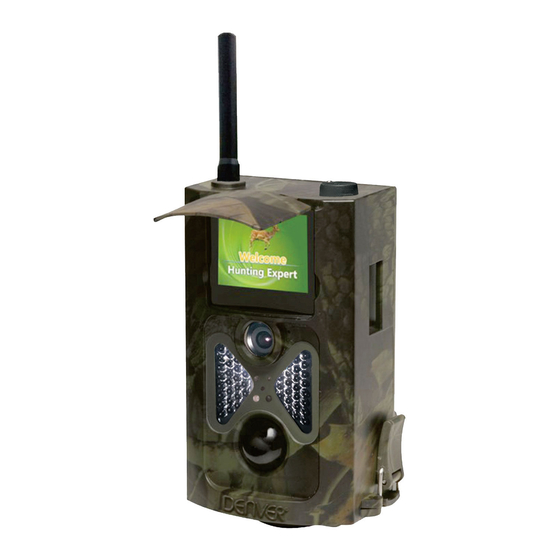

DENVER WCM-3004
Quick Start Guide
2) microSD Slot
4) TV Out connector
6) Infrared Flash
8) GSM Antenna
12) Lock
14) Battery Depot
Wild Camera
ENG-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Denver WCM-3004
Summary of Contents for Denver WCM-3004
-
Page 1: Quick Start Guide
DENVER WCM-3004 Wild Camera Quick Start Guide Overview 1) Bottom Cover 2) microSD Slot 3) USB Connector 4) TV Out connector 5) PIR 6) Infrared Flash 7) Lens 8) GSM Antenna 9) 2 inch color LCD Display 10) Sound recorder... - Page 2 time, if camera is set interval, the interval of taking picture/video is done 2. Timer, camera working time, 3. format, camera has internal memory, user can format interval memory and Micro-SD card 4. Password, 4 digital number D. To view the photos of videos on the camera, please turn off the camera, slide power switch to Test, press right arrow key on remote control to enter view model.
- Page 3 8. Go to in camera menu, check the subsetting is the same with above setting. 9. Turn camera to on mode. GPRS Setting Steps 1. Insert microSD card and SIM to camera, put batteries in cam, screw antenna to it then turn camera to test mode, check there are signal bar and ''SIM'' on the camera screen.
- Page 4 DENVER ELECTRONICS A/S, Stavneagervej 22, DK-8250 Egaa, Denmark www.facebook.com/denverelectronics Hereby, Inter Sales A/S, declares that this model DENVER WCM-5003 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity may be obtained at...
