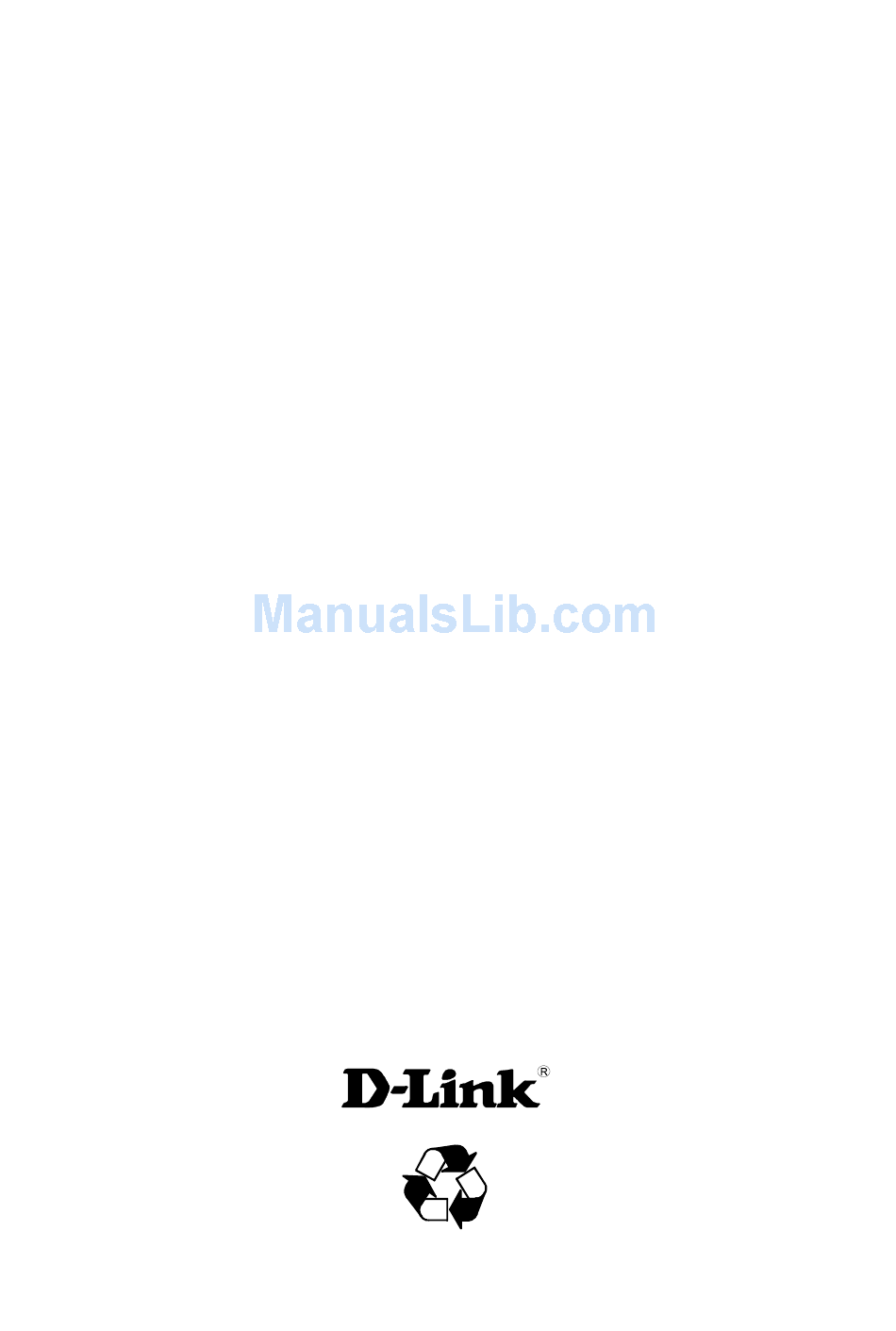

D-Link ™ DES-1024D
24-Port 10/100/1000Mbps
Ethernet Switch
Manual
Building Networks for People
RECYCLABLE
(November 2005)
P/N: 2907D1024D16008

Advertisement

   Related Manuals for D-Link 24-Port 10/100/1000Mbps Ethernet Switch DES-1024D

   Summary of Contents for D-Link 24-Port 10/100/1000Mbps Ethernet Switch DES-1024D

  • Page 1: Ethernet Switch

    D-Link ™ DES-1024D 24-Port 10/100/1000Mbps Ethernet Switch Manual Building Networks for People RECYCLABLE (November 2005) P/N: 2907D1024D16008...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS About This Guide ............1 ..................1 URPOSE .................1 ERMS SAGE ’ ..........1 VERVIEW OF THIS UIDE Introduction ..............2 .............2 THERNET ECHNOLOGY .............3 WITCHING ECHNOLOGY ..................4 EATURES IEEE 801.1P S…...….……………………………………5 Unpacking and Setup............ 4 ..................7 NPACKING ....................7 ETUP ..............8 ESKTOP...

  • Page 3: About This Guide

    BOUT UIDE Congratulations on your purchase of the DES-1024D 24-port 10/100Mbps Fast Ethernet Switch. This device integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities into one highly flexible solution. Purpose This guide discusses how to install your DES-1024D. Terms/Usage In this guide, the term “Switch”...

  • Page 4: Introduction

    NTRODUCTION This chapter describes the features of the DES-1024D and some background information about Ethernet/Fast Ethernet switching technology. Fast Ethernet Technology Ethernet, along with its speedier counterpart Fast Ethernet, is the most popular networking standard in use today. 100BaseT Fast Ethernet is an extension of the 10BaseT Ethernet standard, designed to raise the data transmission capacity of 10BaseT from 10Mbits/sec to 100Mbits/sec.

  • Page 5: Switching Technology

    Switching Technology Switching is a cost-effective way of increasing the total network capacity available to users on a LAN. If an Ethernet network begins to display symptoms of congestion, low throughput, slow response times, and high rates of collision, installing a switch to an network can preserve much or all of the existing network's cabling and workstation interface card infrastructure while still greatly enhancing the throughput for users.

  • Page 6: Features

    latencies. Routers have also been used to segment local area networks, but the cost of a router, the setup and maintenance required make routers relatively impractical. Today switches are an ideal solution to most kinds of local area network congestion problems. Features The DES-1024D is a high-performance switch designed specifically for environments where traffic on the network and the number of users increase...

  • Page 7: Priority Queues

    The implementation of QoS (Quality of Service) and benefits of using 802.1p priority queuing are described here. Advantages of QoS QoS is an implementation of the IEEE 802.1p standard that allows network administrators a method of reserving bandwidth for important functions that require a large bandwidth or have a high priority, such as VoIP (voice-over Internet Protocol), web browsing applications, file server applications or video conferencing.

  • Page 8: Understanding Qos

    Mapping QoS on the Switch The picture above shows the default priority setting for the Switch. Class-1 has higher priority than Class-0 on the Switch. In order to implement QoS, the user is required to instruct the Switch to examine the header of a packet to see if it has the proper identifying tag tagged.

  • Page 9: Unpacking And Setup

    first. NPACKING AND ETUP Unpacking Open the shipping cartons of the DES-1024D and carefully unpack its contents. The carton should contain the following items: One DES-1024D 24-port 10/100Mbps Fast Ethernet Switch One AC power cord Four rubber feet to be used for shock cushioning Screws and two mounting brackets Quick Installation Guide Manual...

  • Page 10: Desktop Installation

    Desktop Installation When installing the DES-1024D on a desktop or shelf, the rubber feet included with the device should be attached first, to minimize scratching or scarring of the surface on which the Switch is placed. Attach these cushioning feet on the bottom at each corner of the device. Allow enough ventilation space between the device and the objects around it.

  • Page 11

    Attaching the mounting brackets to the Switch Installing the Switch in an equipment rack...

  • Page 12: Identifying External Components

    DENTIFYING XTERNAL OMPONENTS Front Panel The figure below shows the front panels of the switch. 24-port 10/100Mbps Fast Ethernet Switch LED Indicator Panel Refer to the next chapter for detailed information about each of the switch’s LED indicators. Power (PWR) This green LED indicator illuminates when the switch is receiving power;...

  • Page 13: Rear Panel

    100Mbps (green) This green LED indicator illuminates when the port is connected to a 100Mbps Fast Ethernet station. The LED does not illuminate when the port is connected to 10Mbps Ethernet station. Twisted-Pair Ports These ports support automatic MDI/MDIX crossover detection function providing true ‘plug and play’...

  • Page 14: Technical Specifications

    ECHNICAL PECIFICATIONS General IEEE 802.3 10BASE-T Ethernet Standards IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1p Compliance Protocol CSMA/CD Ethernet: 10Mbps (half duplex), 20Mbps (full-duplex) Data Transfer Rate Fast Ethernet: 100Mbps (half duplex), 200Mbps (full- duplex) Topology Star 10BASET: 2-pair UTP Cat. 3,4,5, EIA/TIA- 568 100-ohm STP Network Cables 100BASE-TX: 2-pair UTP Cat.

  • Page 15: Technical Specifications

    ECHNICAL PECIFICATIONS Performance Transmits Store-and-forward Method: RAM Buffer: 1.25 MBits per device Filtering 8K entries per device Address Table: Packet Filtering/ 10Mbps Ethernet: 14,880/pps Forwarding 100Mbps Fast Ethernet: 148,800/pps Rate: MAC Address Automatic update Learning:...
