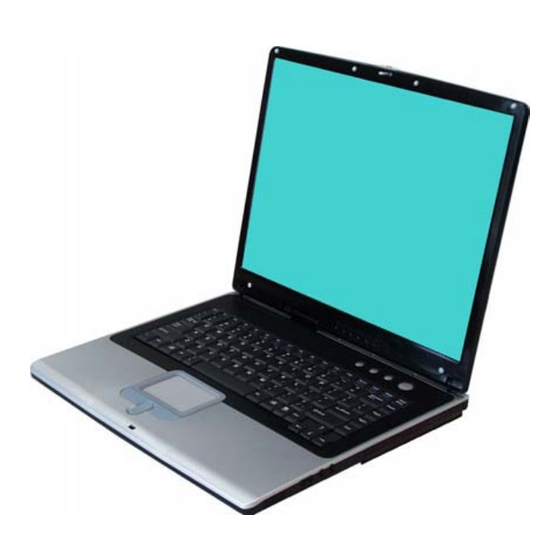

FIC MB05W Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FIC MB05W Service Manual
1.1 Introduction
This chapter provides the outline features and operation of the MB05 including the BIOS
Setup program and other system options.
The MB05 notebook offers the latest in advanced portable computing and multimedia
technology that even outperforms most desktop computers. It incorporates the latest Intel
Pentium - M processor and fully compatibles with an entire library of PC software based on
operating systems such as Windows 2000 / XP. It also runs on future versions of Windows. It
comes with a built-in keyboard, glide pad pointing device, sound system, PCMCIA slots, USB
(Universal Serial Bus) port, IEEE 1394 port, advanced power management and more new
multimedia features.
1.2 Feature Highlights
The MB05 includes a variety of innovative features:
FIC MB05 Service Manual
PDF created with FinePrint pdfFactory trial version
Category
Intel Pentium – M Processor
CPU
: Banias 1.3/1.5 GHZ
Core Logic
Intel Montara-GM (North Bridge) :
CPU(Banias) I/F
Intel ICH4-M (South Bridge) :
DMA Controller
Controller
Interface
RTC
Advance PIC
Specification
VGA Controller
LVDS I/F
DVOB&DVOC IF.
RGB analog I/F
200/266 DDR MEMORY I/F
Hub-Link I/F
Integrated Hub-Link I/F to connect with PCI
Dual IDE Master/Slave Controller ,Integrated
1.1/2.0 Universal Serial Bus Host Controller
Integrated 10/100M Fast Ethernet MAC
Integrated Audio Controller with AC97 V2.2
Advanced Power Management(ACPI)
Integrated PCI to LPC Bridge
Integrated Audio Controller with AC97 Interface
PCI Bus Interface (PCI 2.2 compliant)
GPIO
http://www.fineprint.com
MB05W
MB05W
(WB-B55)
Stepping
Bridge
1-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB05W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FIC MB05W

Summary of Contents for FIC MB05W

  • Page 1 MB05W MB05W (WB-B55) FIC MB05W Service Manual 1.1 Introduction This chapter provides the outline features and operation of the MB05 including the BIOS Setup program and other system options. The MB05 notebook offers the latest in advanced portable computing and multimedia technology that even outperforms most desktop computers.
  • Page 2 FIC MB05W Service Manual Cache Memory L1 Cache (Pentium Processor internal): 64KB 8-way cache associativity provides L2 Cache (Pentium Processor internal): 1024KB Advanced Transfer Cache,8 way associativity 8-way set associative, 32-byte line size, 1 line per sector System Memory Expansion Memory: 2 SO-DIMM Slot (1.25”)
  • Page 3 FIC MB05W Service Manual Modem MDC modem support V.90, K56flex, ITU-T V.34, V.32, RJ11 Jack TIA/EIA 602, V.42 ITU-T V.17, V.29, V.27ter, V.21 Ch2 TIA/EIA 578 Class1 FAX Wake up on Ring On board LAN Realtek 8100BL Support LAN boot( no used)
  • Page 4 FIC MB05W Service Manual 2.5 inch HDD (Standard) 9.5mm Height ; Please refer to the MB05 Key component list in detail. CD-ROM CD-ROM (9.5mm Height) (Option) ; Please refer to the MB05 Key component list in detail. FDD(None) USB FDD 3 mode Support ;...
  • Page 5 FIC MB05W Service Manual Weight Approx 4.9 lb = 2.2Kg Battery Handling Specification Category Remark Battery Charging Power On Li-ion 3.5 h Max Change Power Off Li-ion 3.5 h Current: 1.7A-1.75A±150mA Battery Life Li-ion Save to RAM Li-ion 1 Days...

  • Page 6: System Configuration

    FIC MB05W Service Manual 1.3 System Configuration M BUS ICS950812 CORE INTEL FIC ASIC Centrino F010502-B0 CPU PCI CLK GMTG767 INTEL MBUS MONTARA-G DDR SDRAM X 2 LVDS MINI PCI CONN 32BIT PCI BUS PCMCIA 1394 PORT R5C554 CNN X 2...

  • Page 7: Quick Tour Of The Notebook

    FIC MB05W Service Manual 1.4 Quick Tour of the Notebook Please take a moment to become familiar with the location and purpose of every control, the LED status panel, connectors and ports, which are illustrated in this section. It is recommended to first go through the User Guide of the notebook, which is shipped together with the notebook for information on how to operate its features.
  • Page 8 FIC MB05W Service Manual Easy Buttons There are three easy buttons used for activating wireless function and accessing user-defined functions instantly and easily. Description of the easy buttons appears in the latter part of this section. Status LED Indicator Keeps you informed of your notebook computer’s current power status and operating status.
  • Page 9 FIC MB05W Service Manual Easy Buttons Œ • Wireless LAN Button Easy Button 1 ➌ Easy Button 2 Figure 1- 3 Easy Button Wireless LAN Button Push this button to activate or inactivate the Wireless LAN. When you activate the wireless LAN function, it will search the wireless LAN signal...
  • Page 10 FIC MB05W Service Manual Status LED Indicator Located just in front of the palmrest assembly, you will find three LEDs for the power and battery charge status. These LEDs are positioned to be visible even if the LCD cover is closed.

  • Page 11: Front Side Of The Notebook

    FIC MB05W Service Manual Wireless LAN Status When LED in green light indicates that the system is accessing data from or is retrieving data by wireless LAN. 1.4.2 Front Side of the Notebook ❶ ❷ Cover Switch Battery Figure 1- 5...

  • Page 12: The Left Side Of The Notebook

    FIC MB05W Service Manual Print Port Use this port to connect a parallel printer or other parallel device. The parallel port supports Enhanced Capabilities Port (ECP) standard. The standard provides you with a greater processing speed than the conventional parallel port. The port also supports bi-directional protocols.

  • Page 13: The Right Side Of The Notebook

    FIC MB05W Service Manual ❶ ❷ ❸ USB Port LAN Port PC Card Slot ❹ ❺ IEEE 1394 Built-in Stereo Speakers Figure 1- 7 Left Side of the Notebook LAN Port An internal 10Base-T/100Base-TX LAN module connects your computer to other computers/networks through a local area network (LAN).

  • Page 14: The Under Side Of The Notebook

    FIC MB05W Service Manual Headphone Jack Lets you plug in a stereo headphone, powered speakers, or earphone set with 1/8 inch phono plug for personal listening. Microphone Jack Allows you to connect an external microphone for monophonic sound recording directly into your notebook computer.

  • Page 15: Notebook Accessories And System Options

    FIC MB05W Service Manual 1.5 Notebook Accessories and System Options It is also important to understand the accessories that come along with the notebook and the options for fully utilizing the capabilities of the computer. This section describes briefly what these accessories and options are.
  • Page 16 FIC MB05W Service Manual displayed on the screen, and you will then be prompted to run the Setup Program. As the POST (Power-On Self Test) executes during the boot up process, the screen will display the following message: Press <F2> to Enter SETUP Press the <F2>...

  • Page 17: Using The Main Menu Setup

    FIC MB05W Service Manual 1.6.1 Using the Main Menu Setup P h oe n i x BIO S S et u p Ut il ity Main Advanced Security Boot Exit Item Specific Help System Time: :00 :00] <Tab>, <Shift-Tab>, System Date: [02/19/2003] or <Enter>...

  • Page 18: Internal Hdd Sub-Menu

    FIC MB05W Service Manual Secondary Master This field is for information only as the BIOS automatically detects the optical drive. System Memory This field reports the amount of base (or conventional) memory found by the BIOS during Power-On Self-Test (POST).

  • Page 19: Using The Advanced Cmos Setup

    FIC MB05W Service Manual 1.6.3 Using the Advanced CMOS Setup Ph oe n i x B IO S Se t u p Ut il ity Main Advanced Security Boot Exit Item Specific Help NumLock [LockOn] Selects Power-on state for NumLock...

  • Page 20: I/O Device Configuration Sub-Menu

    FIC MB05W Service Manual PXE OPROM Lets you specify Enabled or Disabled for activating or inactivating PXE OPROM Device function when system is booting. Please set it to default value Wake on LAN from S5 Lets you activate or inactivate the LAN function when system is booting by specifying Enabled or Disabled option.

  • Page 21: Security Menu Setup

    FIC MB05W Service Manual Enabled, you need to set the parameter of Base I/O address and IRQ for this port. 1.6.4 Security Menu Setup Ph oe n i x B IO S Se t u p Ut il ity Main...
  • Page 22 FIC MB05W Service Manual Set User Password This field is only available when Supervisor Password has set. Enter the user password when boot the system or resume from suspend mode. But if the Write Protect is set in the Fixed disk boot sector field, you should enter a supervisor password to access the fixed disk when boot the system or resume from suspend mode.

  • Page 23: Using The Boot Setup

    FIC MB05W Service Manual 1.6.5 Using the Boot Setup This item allows you to set the search drive sequence where the system will try to boot up first. Ph oe n i x B IO S Se t u p Ut il ity...

  • Page 24: How To Exit The Setup Program

    FIC MB05W Service Manual 1.6.6 How to Exit the Setup Program There are two choices to escape from the Setup program. P h oe n i x BIO S S et u p Ut il ity Main Advanced Security Boot...
  • Page 25 FIC MB05W Service Manual 3. On the DOS prompt, type the following command. A:\>Phlash XXXXXX.ROM (BIOS filename) or A:\>XXXXXX.BAT (Batch file for BIOS file) 4. Press <Enter> to run this BIOS utility. After the system has been successfully run this program, a message similar to the following appears: Flash memory has been successfully programmed, press any key to restart the system.

  • Page 26: Notebook Drivers And Utilities

    Easy Button PRO utility – Windows XP Askey MDC Modem – Windows XP Realtek 8100BL LAN driver– Windows XP Intel Wireless LAN driver – Windows XP Visit FIC Support website ftp://ftp.pcg.fic.com.tw/NBTECH/MB05 for the latest driver updates. 2.2.1 Installing Windows XP from CD / DVD ROM This section provides Windows XP installation guide from the CD-ROM or DVD-ROM device.
  • Page 27 FIC MB05W Service Manual Hardware Found Message Box. 4. In the Found New Hardware Wizard message box which shows searching Video Controller (VGA compatible) driver. Click Next to proceed the further step. 5. Select "Search for a suitable driver for my device", and click Next.
  • Page 28 FIC MB05W Service Manual 2. Click the Start button, then click Run. In the Run dialog box, click Browse button and navigate to the directory as "\Driver\WinXP\Touch Pad\setup.exe", path according to your Operating System and run "Setup.exe". 3. Execute the setup program and then select the language for this installation. After that, a Welcome dialog box appears.

  • Page 29: System Upgrades

    FIC MB05W Service Manual the driver. 7. The Add New Hardware will found Intel Fast Ethernet . Click Yes to continue installing the driver. 8. Click Finish button to finish installing LAN driver. 2.2.7 Installing EzButton Driver Following is the procedure for installing Easy Button driver.
  • Page 30 FIC MB05W Service Manual 2.3.1 Jumper Settings This section provides a jumper setting lists of configuring the notebook. Keyboard Type Select Pos #1 POS #2 JP KEYBOARD US KEYBOARD UK KEYBOARD CD-ROM Cable select Pos #7 Master Slave Password Select...
  • Page 31 FIC MB05W Service Manual Figure 2-1 Location of SW1 2.3.2 CPU Upgrade Procedure The MB05 features Mobile Intel Pentium-M FCPGA Processors. How to Access the CPU Socket To install or replace the CPU, follow the steps below: 1. Turn off the system and remove both AC adapter and the battery pack from the notebook unit.
  • Page 32 FIC MB05W Service Manual Figure 2-2 Remove keyboard Cover 3. There are two screws on the bottom case and that should be removing as the picture indicated. 4. Lift the keyboard and tilt it towards the LCD panel. 5. Release keyboard cable by sliding the ZIF connector towards up direction.
  • Page 33 FIC MB05W Service Manual Figure 2-4 Remove keyboard 6. Release three screws as shown in the picture below, and then remove Frame Bracket. Figure 2-5 Remove Frame Bracket 7. Release four screws and one cable as shown in the picture below, and then remove heat sink plate and Fan.
  • Page 34 FIC MB05W Service Manual Figure 2-6 Remove heat sink plate and Fan 8. Use a flat screwdriver to unlock CPU. Figure 2-7 Remove CPU 1-34 FIC MB05 Service Manual PDF created with FinePrint pdfFactory trial version http://www.fineprint.com...

  • Page 35: Memory Upgrade Procedure

    FIC MB05W Service Manual 9. Remove CPU and insert the preferred CPU. 10. Use a flat screwdriver to lock CPU. Place back the heat plate and keyboard cover. Boot on the computer, and then BIOS will automatically detect the type of the CPU which just be installed.
  • Page 36 FIC MB05W Service Manual Hold the DIMM at a 60-degree angle and align the DIMM connector with the socket in the system. Push the connector into the socket. Press down on the edge of the DIMM until the locking tabs on the sides snap into place, securing the module.
  • Page 37 FIC MB05W Service Manual Figure 2-10 Screws Locations of the frame HDD bracket plate 2.3.5 System BIOS Upgrade Procedure The notebook supports EPROM Flash BIOS that allows you to easily update the system BIOS using the Phoenix BIOS Flash utility program called “PHLASH.COM”. This program runs under MS-DOS and requires the system not to load high memory like HIMEM.SYS.

  • Page 38: Summary Of The Bios Specification

    FIC MB05W Service Manual Overview The MB05 is an IBM PC/AT compatible Notebook PC which supports the Intel uFCPGA Socket. The following are the major features that MB05 supports. ² Microsoft PC2001 logo and WinXP logo approval. ² 14.1”,15” XGA and 15”SXGA+ panel support.
  • Page 39 FIC MB05W Service Manual Controller Chip Description § Microsoft PC99 logo and WinXP logo approval. BIOS Feature § Support Boot Block / Crisis Rescue. § APM 1.2 Compliance § Support ACPI 1.0B (or above) Spec. § Support PCI 2.1 (or above) Spec.

  • Page 40: Subsystem Software Functions

    FIC MB05W Service Manual Subsystem Software Functions This section provides introduction on the software functions of the notebook subsystems and BIOS related function. 3.3.1 Key Chipset Summary Following are the main chipsets used in the notebook: Controller Chip Vendor Description...
  • Page 41 FIC MB05W Service Manual 512MB 512MB 1024MB 3.3.3 Video Supported Video Mode The following is the display modes supported by the INTEL Mobility Video control in LCD only, CRT only, and simultaneous mode. The VGA BIOS will allow mode sets of resolutions greater than the panel size but only show as much mode display as will fit on the panel.
  • Page 42 FIC MB05W Service Manual 10Fh 320 x 200 32-bit Unpacked 70 111h 640 x 480 16-bit Packed 60, 72, 75, 85 112h 640 x 480 32-bit Unpacked 60, 72, 75, 85 114h 800 x 600 16-bit Packed 60, 72, 75, 85, 100...
  • Page 43 FIC MB05W Service Manual Panel Type Initialization The VGA BIOS will issue INT 15h function call during POST. This function call allows the system BIOS to specify the panel type to the VGA BIOS. The system BIOS should get the panel type from GPIO pins before the VGA chip initialized, and pass this information to VGA BIOS through INT 15 Function 4E00h.
  • Page 44 FIC MB05W Service Manual Support for 3.3v, 5v and 12v (flash programming) cards 3.3.8 LED Indicator The table below lists down the functions of the Status LED indicator: Indicator Function Description HDD/CD accessing This LED will turn on while accessing the IDE Device.
  • Page 45 FIC MB05W Service Manual E0000-E3000, 10000000- FEBFFFFF, MotherBoard Resource Static 10-1F,24-25,28- FEC10000- 29,2C-31,34-35,38- FEC1FFFF, 39,3C-3D,5053,72- FF000000- 77,80,A4-A5,A8- FF070000, A9,AC-AD,B0- FF800000- B5,B8-B9,BC- FF870000, BD,4D0-4D1,580- FF880000- 587,1180- FF8FFFFF, 11BF,1200,FE00 FF900000- FFBFFFFF, FFF00000- FFFFFFFF Keyboard Controller Static 60, 64 IRQ1 PMU08 Controller Static...
  • Page 46 FIC MB05W Service Manual Wireless LAN Dynamic IRQ10/IRQ E0200000- 3/IRQ4 E0200FFF- FirmwareHub Devices Static FF800000- FFFFFFFF IEEE 1394 Dynamic IRQ10/IRQ E0200000- 3/IRQ4 E02007FF 3.3.11 PCI Device The table below summarizes the PCI IDSEL Pin Allocation: IDSEL Pin Device Device Number...
  • Page 47 FIC MB05W Service Manual PMU 08 SMBus Connection Devices SMBus Device Host/Slave Address BIOS Need to Initialization A7 ~ A1 PMU08 Master Enbale Decode interface MAX1617(Thermal sensor) Slave Program the desired temperature range Battery (1 Battery) Slave No Need ENE PIC (Fan Control)
  • Page 48 FIC MB05W Service Manual Memory Map Address Range Length Description 00000 - 9FFFFh 640 KB System Memory A0000 – BFFFFh 128 KB Video Memory C0000 – C9FFFh 40 KB Video ROM CA000 – DBFFFh 72 KB Unused DC000 - DFFFFh 16 KB E0000 –...
  • Page 49 FIC MB05W Service Manual GPIO17 PMUFLASH0 0:Flash PMU08 Firmware -- GPIO25 CB_HWSUSP0 1 R5C551 Hardware suspend control GPIO32 SPDMUX0 SMBus select 1 GPIO33 SPDMUX1 SMBus select 0 3.3.14 PMU08 GPIO pin assignment GPIO Signal Name Default I/O Notes Remark number...

  • Page 50: G2/S5 - Soft Off

    FIC MB05W Service Manual ACPI General Requirements The BIOS must meet the following general Power Management requirements: Refers to the portion of the firmware that is compatible with the ACPI 1.0b specifications. Support for Power ON(S0 state), Suspend-to-RAM (S3 state) , Suspend-to-Disk mode (S4 state) and Soft OFF(S5 state).

  • Page 51: System Power Plane

    FIC MB05W Service Manual S3 Sleeping State: The S3 sleeping state is a low wake-up latency sleeping state where all system context is lost except system memory. CPU, cache, and chip set context are lost in this state. Hardware maintains memory context and restores some CPU and L2 configuration context.
  • Page 52 FIC MB05W Service Manual Sleeping Wake SLP_TYPx=S1 Event SLP_EN Sleeping SLP_TYPx=S2 SLP_EN ACPI Boot (SCI_EN=1) G0 (S0) - SLP_TYPx=S3 G2 (S5) - Working Soft Off Sleeping SLP_EN SLP_TYPx=S5 SLP_EN SLP_TYPx=S4 PWRBTN_OR S4BIOS_REQ SLP_EN SMI_CMD Sleeping SLP_TYPx=S4 OEM S4 BIOS Handler SLP_EN 3.4.3...
  • Page 53 FIC MB05W Service Manual Device Power Control Methodology Power state of local devices table This section illustrates the power control status of each key device/component of the system under each power management mode. PowerState Doze Stand By STD/SOff Component Stop...

  • Page 54: Power Button

    FIC MB05W Service Manual Power Button The function of Lid Switch is depends on the ACPI aware OS. Lid Switch (Cover Switch) The function of Lid Switch is depends on the ACPI aware OS. 3.4.4 Expanding Event Through the Embedded Controller...

  • Page 55: Battery Management

    FIC MB05W Service Manual Control Method Battery Subsystem EC should support all the battery information to ACPI-OS Designed Battery capacity Designed Voltage Designed Low battery capacity Designed Low – Low battery capacity Latest Full charged capacity Present Remaining capacity Present drain rate...
  • Page 56 FIC MB05W Service Manual battery low SMI. The system will do the following action. 1) The Power Indicator will become blinking. 2) The system will issue a Warning beep. 3.5.3 Battery Low - Low When the battery voltage is approaching to the Low-Low level, the PMU08 will generate a battery low-low SMI.
  • Page 57 FIC MB05W Service Manual Burst Enable 0x82 EC_SC Command No Interrupt Embedded byte Header Controller EC_DAT Burst Interrupt on (BE_EC) acknowledge OBF=1 byte 0x83 EC_SC Burst Disable Command Interrupt on Embedded byte Header IBF=0 Controller (BD_EC) Query Embedded 0x84 EC_SC...
  • Page 58 FIC MB05W Service Manual Regist Bit Number Functi Addres Logi Defaul Description Name 7 6 5 4 3 2 1 0 Design capacit 0x0000-0xfffe(mWh) R(/W) DATA[15:0] *1 0xffff y of 0xffff: Unknown Warnin Design 0x0000-0xfffe(mWh) capacit R(/W) DATA[15:0] *1 0xffff...
  • Page 59 FIC MB05W Service Manual Regist Bit Number Functi Addres Logi Defaul Description Name 7 6 5 4 3 2 1 0 Vender [7:0] This code depends on battery data format. And the following name should be described in the ASL with the same character code.
  • Page 60 FIC MB05W Service Manual Regist Bit Number Functi Addres Logi Defaul Description Name 7 6 5 4 3 2 1 0 Battery [ _BST Battery [ _BTP 0x01: DATA size is Battery 3byte.(PMU06A) data DATA [7:0] (/W) 0x00: DATA size is 2 byte.
  • Page 61 FIC MB05W Service Manual Regist Bit Number Functi Addres Logi Defaul Description Name 7 6 5 4 3 2 1 0 PMU_L DATA [7:0] These registers are available when PMU slave PMU_ mode or charger mode is HIG_ DATA [15:8] selected.
  • Page 62 FIC MB05W Service Manual Regist Bit Number Functi Addres Logi Defaul Description Name 7 6 5 4 3 2 1 0 PMU_L DATA [7:0] These registers are available when PMU slave PMU_ mode or charger mode is HIG_ DATA [15:8] selected.
  • Page 63 FIC MB05W Service Manual Regist Bit Number Functi Addres Logi Defaul Description Name 7 6 5 4 3 2 1 0 Reserv Reserv Don't care R(/W): This is the read only register, but the written data will be able to read back till PMU updates the data periodically, or PMU detects the status change.
  • Page 64 FIC MB05W Service Manual Register Bit Number Functio Defa Logic Description ress Name 7 6 5 4 3 2 1 0 SMBAlert output device address The alert response function is available when this register is cleared (0x00) only. When the several...
  • Page 65 FIC MB05W Service Manual Register Bit Number Functio Defa Logic Description ress Name 7 6 5 4 3 2 1 0 detection event is ALRT=1 detected. Write SMBAlert GPIO 0:Clear =1 : event detected. BATn=1 : 1:Ignore GPIO event is =1 : detected.
  • Page 66 FIC MB05W Service Manual Register Bit Number Functio Defa Logic Description ress Name 7 6 5 4 3 2 1 0 Battery trip BATT_R 0: Disable point 0x00 1: Enable BTP: Empty. EMP: Low battery LOW: Warning WAR: Error ERR:...
  • Page 67 FIC MB05W Service Manual Register Bit Number Functio Defa Logic Description ress Name 7 6 5 4 3 2 1 0 GPIO-C_ 0: Disable 0 0 0 0 0 0 0x00 RUN_EN 1: Enable [1:0 0: Falling Event/ GPIO-C_ edge...
  • Page 68 FIC MB05W Service Manual Register Bit Number Functio Defa Logic Description ress Name 7 6 5 4 3 2 1 0 =0: Wake# output is “Level”. =1: Wake# output is “Pulse”. =0: SCI is always output by event detection SCI_EVT...
  • Page 69 FIC MB05W Service Manual Register Bit Number Functio Defa Logic Description ress Name 7 6 5 4 3 2 1 0 EC_RUN 0: Disable 0x00 1: Enable ENB_2 Reserved [7:1] TH: Thermal event EC_WAK 0: Disable 0x00 1: Enable ENB_2 Reserved R/W Don’t care...
  • Page 70 FIC MB05W Service Manual Register Bit Number Functio Defa Logic Description ress Name 7 6 5 4 3 2 1 0 The discharge BAT_DC 0: Not battery can be discharge RES[7:2] selected one of the batteries can be CONT 1: Discharge discharged.
  • Page 71 FIC MB05W Service Manual Register Bit Number Functio Defa Logic Description ress Name 7 6 5 4 3 2 1 0 0x0000: Clear the trip point 0x0001-0xffff : (mWh) 0x00 When all of the BTP2 DATA [15:0] battery’s capacities lesser than this...
  • Page 72 FIC MB05W Service Manual Register Bit Number Functio Defa Logic Description ress Name 7 6 5 4 3 2 1 0 Power switch over ride function timer OFF_TIM 01h-FFh (0.1- DATA [7:0] 0x64 25.5esc step 0.1sec) 00h : Reserved Address: 0x00-0x7F...

  • Page 73: Cmos Setup Utility

    FIC MB05W Service Manual Register Bit Number Functio Defa Logic Description ress Name 7 6 5 4 3 2 1 0 Reserved R/W Don't care 3.6.3 Security The user may enter up to 8 standard text characters for a password. The password includes two levels.
  • Page 74 FIC MB05W Service Manual turned off. MPEG-2 - Moving Picture Experts Group, a working group of ISO. The term also refers to the family of digital video compression standards developed by the group. There are two major MPEG standards : MPEG-1 and MPEG-2. The most common implementations of the MPEG-1 standard provide a video resolution 352x240 at 30 frames per second(fps).
  • Page 75 FIC MB05W Service Manual Overview The FIC MB05 notebook consists of several important functions and subsystems including: Notebook size, 2 spindle, IBM PC/AT compatible personal computer with PCI-bus and Multimedia functions, provide full basic function with lowest price and easy of use.
  • Page 76 FIC MB05W Service Manual IEEE 1394(Option) Support two port Controller RICOH R5C554 two IEEE1394 ports BRIDGE Function Compliant with Link Layer Services as defined in 1394 Open Host Controller Interface specification release 1.0 Compliant with Physical Layer Services as defined in P1394a draft 2.0(Data Rate 100/200/400 Mbps)

  • Page 77: System Hardware Block Diagram

    FIC MB05W Service Manual Battery battery Li-ion (8 cell) SANYO 4400mA(Circle);3600mA(Square) Battery Life 4.5 hours RTC battery Switch Power SW Push button type (As asserted switch over 4s,system will be powered down by force ) Short Cut Key 3 Short Cut Key (Mail Key and Internet Key)
  • Page 78 FIC MB05W Service Manual M BUS ICS950812 CORE INTEL FIC ASIC Centrino F010502-B0 CPU PCI CLK GMTG767 INTEL MBUS MONTARA-G DDR SDRAM X 2 LVDS MINI PCI CONN 32BIT PCI BUS PCMCIA 1394 PORT R5C554 CNN X 2 G576 USB2...
  • Page 79 MDC AC’97 System Processor (CPU) The FIC MB05 runs on Intel Banias based on uFCPGA packaging. It supports CPU with up to 1.3/1.5 GHZ clock speed rating. The processor operates in conjunction with the RAM and ROM memory and the system control logic to process software instructions (BIOS, Windows, and Applications).

  • Page 80: System Core Logic

    FIC MB05W Service Manual for applications that require greater range and precision, including scientific and engineering applications and advanced 3-D geometry techniques, such as ray tracing. The Intel Pentium M processor’s 400-MHz processor system bus utilizes a split-transaction, deferred reply protocol. The 400-MHz processor system bus uses Source-Synchronous Transfer (SST) of address and data to improve performance by transferring data four times per bus clock (4X data transfer rate, as in AGP 4X).

  • Page 81: System Interrupts

    FIC MB05W Service Manual System Interrupts Ø . Supports Intel 8259 and processor system bus interrupt delivery mechanism Ø . Supports interrupts signaled as upstream memory writes from PCI and Hub interface Ø . MSI sent to the CPU through the system bus Ø...
  • Page 82 FIC MB05W Service Manual Compliant with ANSI/TIA/EIA –644-1995 spec Integrated PWM interface for LCD backlight inverter control Bi-linear panel fitting . Tri-view support through LFP interface, DVO B/C port, and CRT Internal Graphics Features Ø . Up to 64 MB of dynamic video memory allocation Ø...
  • Page 83 FIC MB05W Service Manual Color alpha blending for transparency Vertex and programmable pixel fog and atmospheric effects Color specular lighting Z Bias support Dithering Line and full-scene anti-aliasing 16 and 24-bit Z buffering 16 and 24-bit W buffering 8-bit Stencil buffering...
  • Page 84 FIC MB05W Service Manual Specification, Revision 2.3). Link for Audio and Telephony codecs (up to 7 channels) •Low Pin Count (LPC) interface •Firmware Hub (FWH) interface support •Alert On LAN* (AOL) and Alert On LAN 2* (AOL2) Hub Architecture As I/O speeds increase, the demand placed on the PCI bus by the I/O bridge has become significant.

  • Page 85: Advanced Programmable Interrupt Controller (Apic)

    FIC MB05W Service Manual transfers, and channels 5–7 are hardwired to 16-bit, count-by-word transfers. Any two of the seven DMA channels can be programmed to support fast Type-F transfers. The ICH4 supports two types of DMA (LPC and PC/PCI). DMA via LPC is similar to ISA DMA.

  • Page 86: Clock Frequency Generator

    FIC MB05W Service Manual receive FIFOs of 3 kB each help prevent data underruns and overruns while waiting for bus accesses. This enables the integrated LAN Controller to transmit data with minimum interframe spacing (IFS). The LAN Controller can operate in either full duplex or half duplex mode. In full duplex mode the LAN Controller adheres with the IEEE 802.3x Flow Control specification.

  • Page 87: Video Memory

    FIC MB05W Service Manual 4.8.1 System Memory The notebook offers two 64-bit SODIMM (Small Outline Dual Inline Memory Module) sockets for main memory configuration. The memory sockets accept any standard 144-pin SODIMM modules at 128MB, 256MB,512MB and 1GMB sizes. Memory modules are DDR 200/266 SDRAM type.
  • Page 88 FIC MB05W Service Manual monitor with pixel resolution up to 1600x1200 at 85-Hz and up to 1920x1440 at 60 Hz . Dual independent pipe support ‧ Concurrent: Different images and native display timings on each display device ‧ Simultaneous: Same images and native display timings on each display device .

  • Page 89: Video Clock

    FIC MB05W Service Manual ‧ Per Pixel Perspective Corrected Texture Mapping ‧ Single Pass Texture Compositing (Multi-Textures) at rate ‧ Enhanced Texture Blending functions ‧ Twelve Level of Detail MIP Map Sizes from 1x1 to 2Kx2K ‧ Numerous Texture formats including 32-bit RGBA ‧...
  • Page 90 FIC MB05W Service Manual communication cards, etc. The high performance and capability of the CardBus interface will enable the new development of many new functions and applications. The R5C554 CardBus controller is compliant with the latest ACPI-PCI Bus Power Management interface Specification. It supports all four power states and the PME# function for maximum power savings and ACPI compliance.

  • Page 91: Audio Subsystem

    FIC MB05W Service Manual Programmable interrupt protocol: PCI, PCI+ISA, PCI/Way, or PC/PCI interrupt signaling modes Win'98 IRQ and PC-98/99 compliant Parallel or Serial interface for socket power control devices including Micrel and TI Integrated PC 98/99 -Subsystem Vendor ID support, with auto lock bit LED Activity Pins R5C554 supports D3cold state PME# wakeup;...

  • Page 92: Power Subsystem

    FIC MB05W Service Manual The Synaptic touch pad, a pointing device for personal computers, detects the position of a finger over a touch-sensitive area. To move the cursor, the user lightly slides a finger over the smooth sensor area. To ‘click’, the user gently taps on the surface.

  • Page 93: Dc-Dc Module Of Motherboard

    FIC MB05W Service Manual The normal charging time for the battery is around 3.5 hours when computer is turn off while it should take around 8 hours when the computer is running. Running time of battery is around 4.5 hours.

  • Page 94: Preventive Maintenance

    FIC MB05W Service Manual Introduction This section contains preventive and corrective maintenance procedures for the MB05 notebook. The first part of the section describes the computer cleaning procedures and preferred handling procedures for sensitive components (e.g. disk drives, LCD, CPU, batteries).
  • Page 95 FIC MB05W Service Manual 5.2.3 Maintaining the Hard Disk Drive The hard disk drive is one of the most common parts that always gets problem. Here is some preventive maintenance that you can do when handling the hard disk. Always back up the data files from the hard disk.

  • Page 96: Required Tools And Equipment

    FIC MB05W Service Manual Required Tools and Equipment To troubleshoot and repair PC systems properly, you need a few basic tools: Tweezers Small flat-blade screwdriver Small Cross screwdriver Regular size Cross screwdriver Small Hex-bolt screwdriver All boards, options, and peripherals contain components that are sensitive to static electricity.
  • Page 97 FIC MB05W Service Manual The following System Top Unit Assembly includes the following major Field Replaceable Units/parts (FRUs): Glidepad Touch Pad Module Assembly The touch pad (glide pad) pointing device module is assembled at the underside of the top cover with the sensor pad exposed on the top. The assembly comprises of the glide pad board, the glide pad converter board, the select buttons bracket casing, the insulator sheet, the glide pad FPC cable, and the glidepad wire cable.

  • Page 98: Motherboard Assembly

    FIC MB05W Service Manual Motherboard Assembly The Motherboard assembly is the most important part of the notebook. It contains the entire major chipsets including the core logic, PCMCIA, memory, and BIOS to operate the whole computer. It also includes the sockets, connectors and ports completing the functionality.
  • Page 99 FIC MB05W Service Manual Figure 5-2 Remove keyboard Cover 14. There are two screws on the bottom case and that should be removing as the picture indicated. 15. Lift the keyboard and tilt it towards the LCD panel. 16. Release keyboard cable by sliding the ZIF connector towards up direction.
  • Page 100 FIC MB05W Service Manual Figure 5-4 Remove keyboard 5.5.3 Removing the Internal Hard Disk Drive The notebook provides a built-in hard disk for the primary IDE controller. The HDD is an industry standard 2.5” IDE disk drive with a maximum height of 9.5mm.

  • Page 101: Removing The Heat Sink Plate

    FIC MB05W Service Manual 2. Remove four screws of frame HDD bracket plate. Figure 5-6 Screws Locations of the frame HDD bracket plate 5.5.4 Removing the heat sink plate The procedure for removing the heat sink plate is as follows: 1.

  • Page 102: Removing The Heat Sink

    FIC MB05W Service Manual 5.5.5 Removing the Heat Sink The procedure for removing the heat sink is as follows: 1. Removing the heat sink, there are four screws and one FAN cables as the picture shown. Figure 5-8 Removing the Heat Sink Module 5.5.6...
  • Page 103 FIC MB05W Service Manual 2. Removing the two screws for LCD cable. Figure 5-10 T wo screws for LCD cable Slowly pullout the LCD panel from the system unit. 5.5.7 Removing the Intel CPU The MB05 features Intel Pentium M uFC-PGA Processors. It is located on the upper left side of the system motherboard.

  • Page 104: Removing The Top Cover

    FIC MB05W Service Manual 5.5.8 Removing the Top Cover The procedure for removing the top cover is as follow: Please see the location of top cover as the below picture shown. 1. To remove the top cover, you also need to remove the seven screws and one Hex-screw and one FPC on top cover.

  • Page 105: Removing The Audio Board

    FIC MB05W Service Manual Figure 5-14 Removing the G/P FPC of top case 5.5.9 Removing the Audio board The procedure for removing the audio board is as follows: 1. There are two screws and one cable for speaker and audio FPC to remove the audio board.

  • Page 106: Removing The Dc Board

    FIC MB05W Service Manual 5.5.10 Removing the DC board The procedure for removing the DC board is as follows: 1. There are two screws for this DC board as the pictures shown. Figure 5-16 Removing the DC/DC board 5.5.11 Removing the MDC Modem board...

  • Page 107: Removing The I/O Board

    FIC MB05W Service Manual Figure 5-17 Removing the DC/DC board 5.5.12 Removing the IO board The procedure for removing the IO board with serial/parallel/PS2 ports are as follows: 1. There are four screws on the rear side as the pictures shown.
  • Page 108 FIC MB05W Service Manual Figure 5-20 Motherboard Screws Location You will see two Hex-screws as the picture shown. Figure 5-21 Removing Hex-Screws 4. When all screws and bolts are removing, the mother board and FPC should lift up together gently from the casing of base unit..

  • Page 109: System Specification

    FIC MB05W Service Manual This appendix provides the technical specification of the MB05 notebook: System Specification Category Specification Stepping Intel Mobile Centrino Processor FSB Speed 400MHz Core Logic MONTARA-GM (North Bridge) CPU Interface Integrated 3D/2D Graphic Engine. AGP Bus Controller...
  • Page 110 FIC MB05W Service Manual BIOS ROM Flash ROM Vendor : SST 49LF040A PLCC Package 4Mbit LPC flash ROM Super I/O SMSC LPC47N267 FDC, IEEE 1284 Printer Port Serial Port x 1 ports IR Port ASKIR, SIR, FIR, HPSIR, Consumer IR...

  • Page 111: Display Specification

    FIC MB05W Service Manual Sound AC’97 CODEC Realtek ALC202 AC’97 Revision 2.2 Compliant Modem MDC modem support V.90, K56flex, ITU-T V.34, V.32, RJ11 Jack TIA/EIA 602, V.42 ITU-T V.17, V.29, V.27ter, V.21 Ch2 TIA/EIA 578 Class1 FAX Wake up on Ring...
  • Page 112 FIC MB05W Service Manual Storage Temperature -20 to 60 degrees Celsius 15” TFT LCD (LG) LCD Model LP150X05-C2 LCD Type 15” TFT Display Pixels H1024 x V768 pixels Pixel Arrangement RGB vertical stripe Display colors 262K Colors Module Size 298.5(W) x 227.5(H) x 5.8(D) [mm] Weight Approx.

  • Page 113: Keyboard Specification

    FIC MB05W Service Manual Storage Temperature -20 to 60 degrees Celsius DVD/ RW Combo Drive Specification Drive Manufacturer QSI SBW242 Physical Dimension 128.0 x 12.7 x 129 [mm] ( W * H * D ) Weight 250g +/- 10g Loading...

  • Page 114: Power Supply

    FIC MB05W Service Manual Type of key switch Membrane (PE) Switch Number of keys 87 keys with embedded numeric keypad Compatibility Enhanced 101/102 emulation Travel 3.0 mm 0.3 mm Keyboard Height 0.3 mm 0.3 mm (SPACE Key) Keycap Pull Off Force...

  • Page 115: Inverter Specification

    FIC MB05W Service Manual Output Voltage +19Vdc (main) Output Current 3.16A (Max) Over Voltage Protection 24V Max Over Current Protection 19V / 5A (max) Dimension L115 x W50 x H29 [mm] Weight 250g AC POWER ADAPTER (LITEON) Input Voltage 100 to 240VAC...

  • Page 116: Charger Specification

    FIC MB05W Service Manual A.12 DC/DC Specification Controller PMU 08 Input Voltage 8 ~ 20V Output Current 4A (5V) / 4A (3.3V) / 100mA (12V) Frequency 200KHz Support Mode OVP / OCP A.13 Charger Specification Controller PMU 08 Input Voltage 18.5 ~ 20V...
  • Page 117 FIC MB05W Service Manual This appendix provides you with the field replaceable unit (FRU) parts listing of the MB05 Series. Refer to this appendix whenever ordering for spare parts or requesting for RMA (Returned Merchandise Authorization) number. Return to Lead...
  • Page 118 FIC MB05W Service Manual 31 Module HDD_40GB_HIT 25-03553-00 HDD 40GB HIT 23-20862-03 12 Mth CON SOCKET FOR HDD S- TECH 20-21749-00 FRAME HDD 24-52404-00 PLASIC-M HDD 80-40854-10 36 Module HDD 60 GB_HIT 25-03571-00 HDD 60 GB HIT 23-21021N00 12 Mth...
  • Page 119 FIC MB05W Service Manual SPEAKER +CABLE 21-20779-00 HEAT SINK FOR CPU 24-20705-00 HEAT SINK MB02 NORTH 24-20687-00 BRIDGE 79 Module Bottom cover 80-40847-10 CASE BOTTOM 24-45816-10 CASE PCMCIA DOOR 24-45817-10 FRAME SLIDE PLT FOR BATTERY 24-52412-00 FRAME HDD BRACKET(BOTTEN SIDE)
  • Page 120 FIC MB05W Service Manual 120 POWER CORD (JAP) 22-30135-06 121 POWER CORD (US) 22-30135-15 122 POWER CORD (UK) 22-30135-16 123 POWER CORD(EUR) 22-30135-17 124 POWER CORD(Korea) 22-301135-18 ADAPTOR 60W FIC DELAT ADP-60NH 12-01618-02 12 Mth 126 Keyboard(JAP) 71-31705-00 12 Mth...
