Char-Broil 463269011 Product Manual

Char-Broil 463269011 Product Manual

Hide thumbs Also See for 463269011:

Advertisement

Quick Links

Download this manual

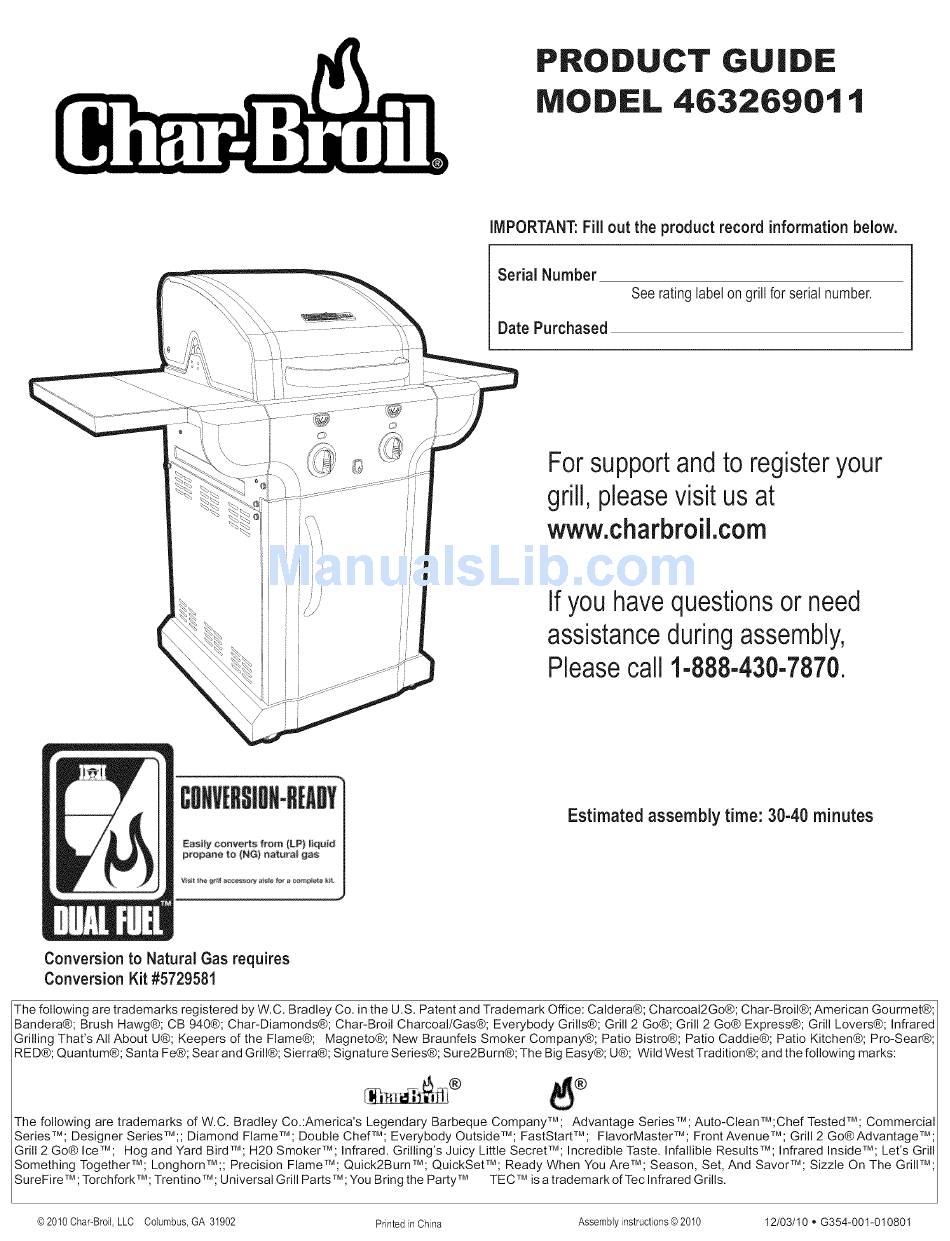

PRODUCT
GUIDE
MODEL
46326901
t
IMPORTANT: Fill out the product record information below.
e
©
Serial Number
Date Purchased
See ratinglabel on grill for serialnumber.
Forsupportandto registeryour
grill, pleasevisit us at
www.charbroil.com
If you havequestionsor need
assistanceduringassembly,
Pleasecall 1-888-430-7870.
Estimated assembly time: 30-40 minutes
Conversion to Natural Gas requires
Conversion Kit #5729581
The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Caldera®; Charcoal2Go®;
Char-Broil®; American Gourmet®;
Bandera®; Brush Hawg®; CB 940®; Char-Diamonds®;
Char-Broil Charcoal/Gas®;
Everybody Grills®; Grill 2 Go®; Grill 2 Go® Express®; Grill Lovers®; infrared
Grilling That's All About U®; Keepers of the Flame®;
Magneto®;
New Braunfels
Smoker Company®; Patio Bistro®; Patio Caddie®; Patio Kitchen®; Pro-Sear®;
RED®; Quantum®; Santa Fe®; Sear and Grill®; Sierra®; Signature Series®; Sure2Burn®;
The Big Easy®; U®; Wild West Tradition®; and the following marks:
®
The following are trademarks
of W.C. Bradley Co.:America's
Legendary Barbeque CompanyTM;
Advantage
SeriesTM; Auto-CleanTM;Chef
TestedTM; Commercial
Series TM;Designer Series TM;;Diamond FlameTM; Double ChefTM; Everybody OutsideTM; FastStartTM ; FlavorMasterTM; Front Avenue TM;Grill 2 Go® AdvantageTM ;
Grill 2 Go® IceTM; Hog and Yard BirdTM; H20 SmokerTM; infrared. Grilling's Juicy Little SecretTM; incredible Taste. infallible ResultsTM; infrared InsideTM;Let's Grill
Something TogetherTM; LonghornTM;; Precision FlameTM; Quick2BurnTM; QuickSetTM; Ready When You AreTM; Season, Set, And SavorTM; Sizzle On The GriIFM:
SureFireTr_; TorchforkTr_; Trentino Tr_; U niversal Grill Parts Tr_; Y ou Bring the Party
TM
TEC TMis a trademark of Tec Infrared Grills.
©2010 Char-Broil,LLC Columbus,GA 31902
Printedin China
Assembly instructions©2010
12/03/10 • G354-001-010801
