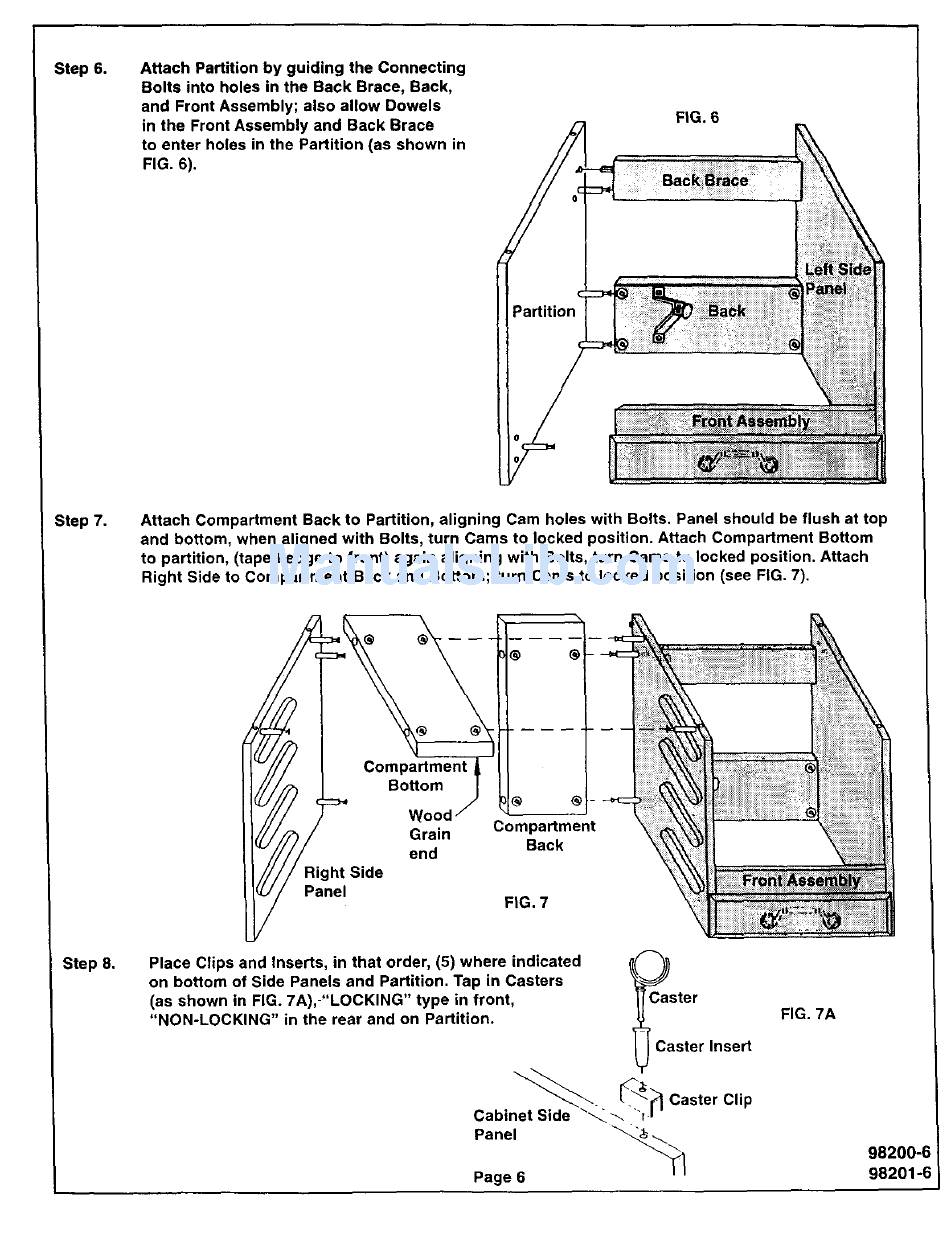

Step6.
AttachPartitionby guidingthe Connecting
Bolts into holesin the BackBrace,Back,
and FrontAssembly; a lsoallow Dowels
in the FrontAssemblyand BackBrace
to enterholesin the Partition(as shownin
FIG.6).
Step7.
AttachCompartment B ackto Partition,aligningCamholeswith Bolts.Panel s houldbeflush attop
andbottom,whenalignedwith Bolts,turn Camsto lockedposition.AttachCompartment Bottom
to partition,(tapededgeto front)againaligningwith Bolts,turn Camsto lockedposition.Attach
RightSideto Compartment Backand
Bottom;
turn Cams to locked position (see FiG. 7).
Step 8.
\ i++
liU
Bo.om )1+ +
W°od/
C_nn artment
II///,_
/
Grain
mp
I tc_J////
end
Back
I I////
Right Side
//
Panel
FIG. 7
Place Clips and Inserts,
in that order, (5) where indicated
on bottom of Side Panels and Partition. Tap in Casters
(as shown in FIG. 7A), "LOCKING"
type in front,
"NON-LOCKING"
in the rear and on Partition.
Caster
FIG. 7A
Caster Insert
_.
_ Caster
C,,p
Cabinet Side
_-\
"'t
Panel
"_1
Page 6
98200-e
98201-6
