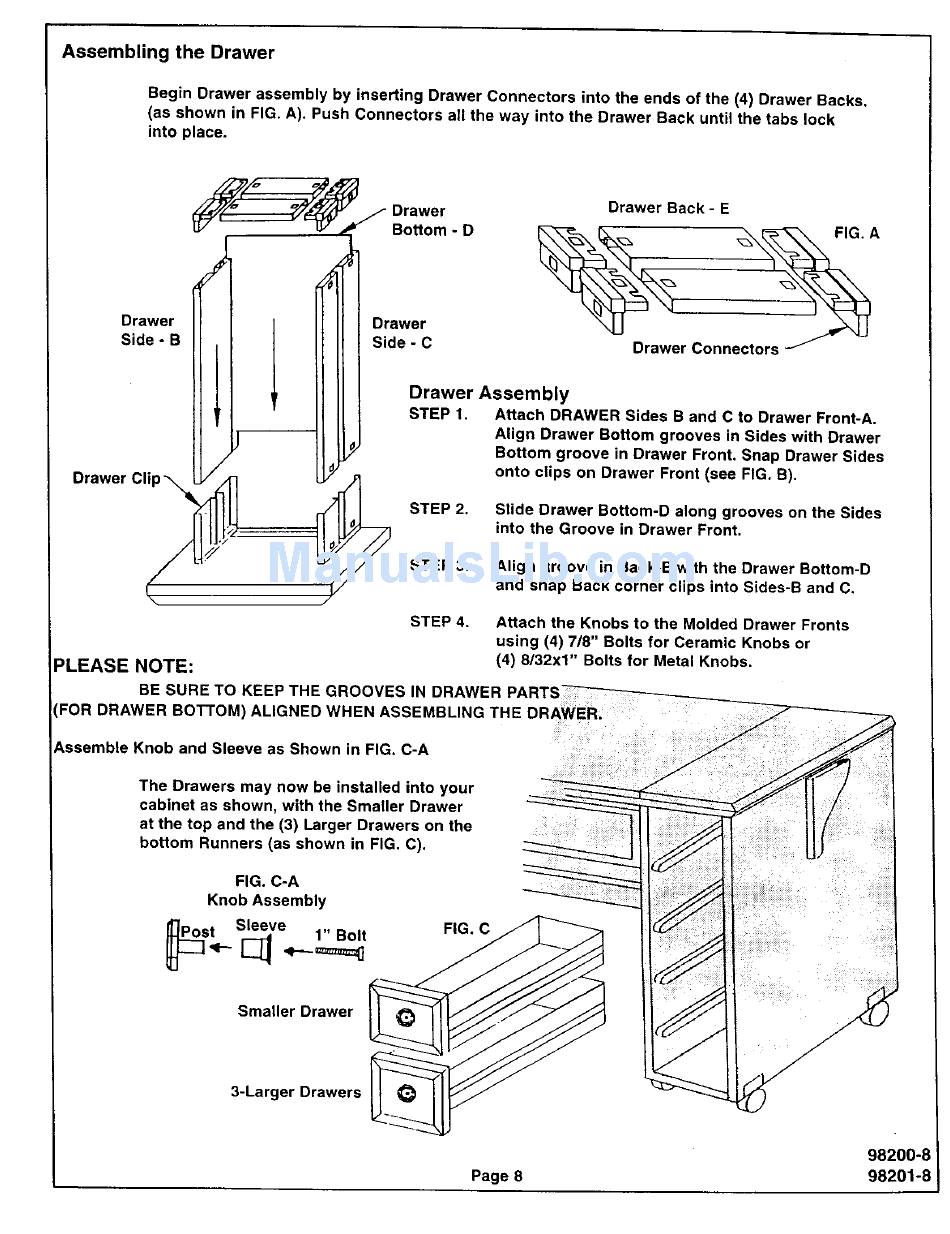

Assembling the Drawer
Begin Drawerassemblyby insertingDrawerConnectorsinto the endsof the (4) DrawerBacks.
(as shownin FIG.A).PushConnectorsall the way into the DrawerBackuntil the tabs lock
into place.
Drawer
Side - B
Drawer
PLEASE NOTE:
BE SURE TO KEEP THE GROOVES IN DRAWER PARTS
(FOR DRAWER BOTTOM) ALIGNED WHEN ASSEMBLING THE DRAWER.
Assemble Knob and Sleeve as Shown in FIG. C-A
" _ D B
F_'_=_::_"_ Dr r rawer ack-E
/ It / Drawer __ _=__ Side - C Drawer Connectors
II | Drawer Assembly
" II | STEP 1. Attach DRAWER Sides B and C to Drawer Front-A.
_1 | Align Drawer Bottom grooves in Sides with Drawer
II _ Bottom groove in Drawer Front. Snap Drawer Sides
L_._ onto clips on Drawer Front (see FiG. B).
rill I
STEP 2. Slide Drawer Bottom-D along grooves on the Sides
L_"J_" STEP 3. Align groove in Back-E with the Drawer Bottom-D
and snap Back corner clips into Sides-B and C.
STEP 4. Attach the Knobs to the Molded Drawer Fronts
using (4) 7/8" Bolts for Ceramic Knobs or
(4) 8/32x1" Bolts for Metal Knobs.
The Drawers may now be installed into your
cabinet as shown, with the Smaller Drawer
at the top and the (3) Larger Drawers on the
bottom Runners (as shown in FiG. C).
FIG. C-A
Knob Assembly
st _ve 1" Bolt FIG. C
Smaller Drawer
3-Larger Drawers
