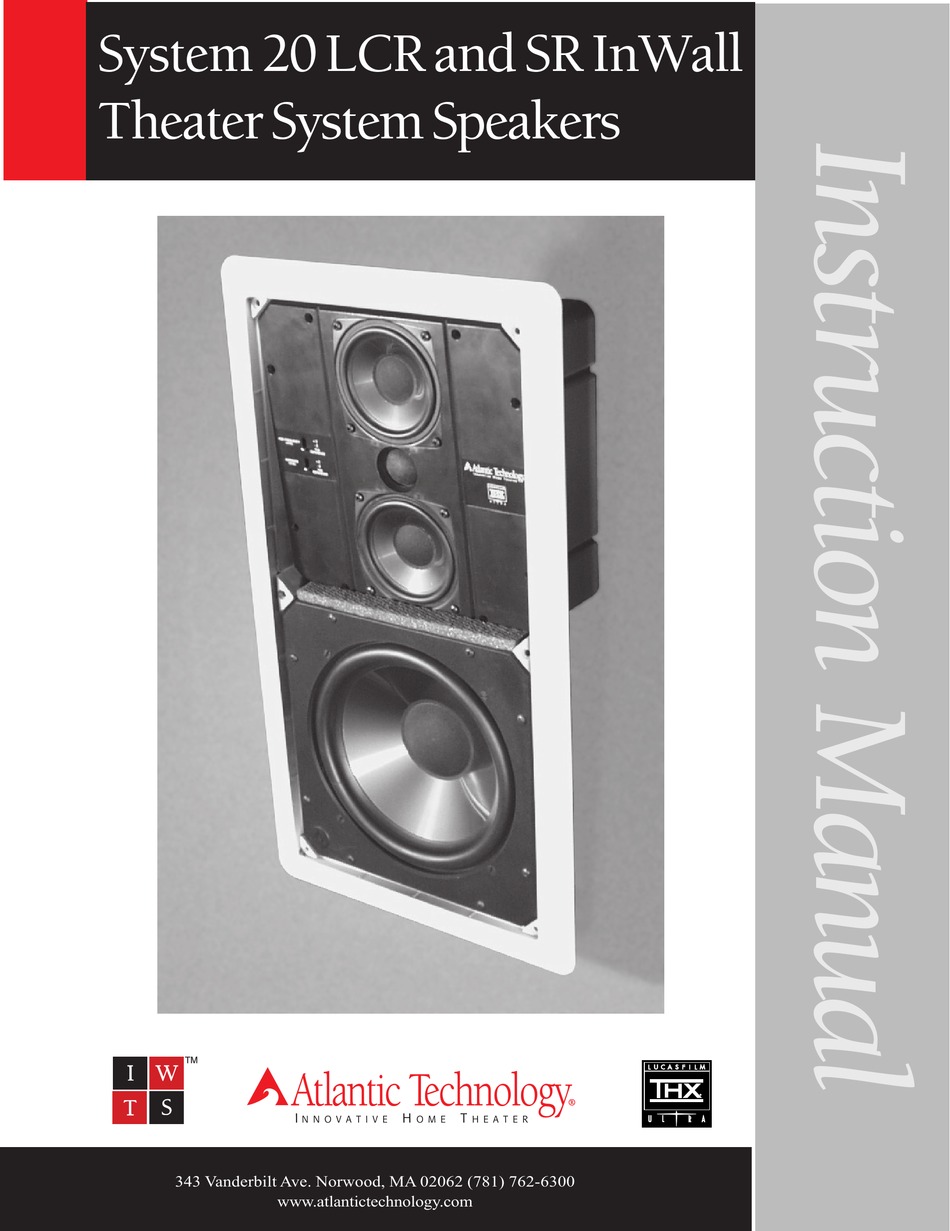

- Page 1 System 20 LCR and SR InWall System 20 LCR and SR InWall Speakers Theater System Speakers G G G G G G G G G G G G G G G G G G G G G G 343 Vanderbilt Ave. Norwood, MA 02062 (781) 762-6300...
- Page 2 Some Surround Issues The System 20 LCR is designed for the front three channels in a THX Ultra certified home theater system or as a high quality music reproducer in a stereo system. Although it could be used as a surround speaker in a home theater system, it doesn’t create the same kind of involving, believable surround field that the System 20 SR...
-
Page 3: Important Considerations Before Installation
Stereo Systems The following applies should you be using the System 20 LCR front speakers in an audio only setting. For stereo music reproduction the speakers are best located with the tweeters at approximately ear level when seated, both on the same wall, facing the prime listening location. - Page 4 TV screen. Ceiling Locations Ceiling mounting of the System 20 LCR is not recommended due to its dispersion characteristics, weight, and size. The System 20 SR may be ceiling mounted, but as outlined below its optimum performance will be realized as a Dipole, placed directly to the sides of the prime listening position.
- Page 5 Installation Bracket mounting, and its use as a rough-in assembly in new construction. The following instructions primarily apply to the final installation of the speaker system (either System 20 LCR or System 20SR) into the already mounted Installation Bracket.
- Page 6 Infrared Eye Repeater Opening There’s a cutout located on the front of the System 20 LCR that’s designed to accept most IR repeater receiv- ers. This cutout is located under the round Atlantic Technology “Wave logo” adjacent to the woofer. To remove the Wave logo simply push it out from behind.
- Page 7 System 20 LCR and SR InWall Speakers IMPORTANT: Exercise extreme care before making any wall cuts to ensure that you will not cut through any wires, pipes, or other items that may be in the wall. You may sometimes, but not always, be able to determine the approximate location of wires and pipes by looking at the locations of nearby outlets and plumbing.
- Page 8 System 20 LCR and SR InWall Speakers Painting the Bezel and the Grille The bezel of the speaker assembly and the metal grille may be left as is or painted to match your décor. You can paint the frame before or after it is installed in the wall. Use the included paint shield to protect against getting any paint on the front of the speaker.
