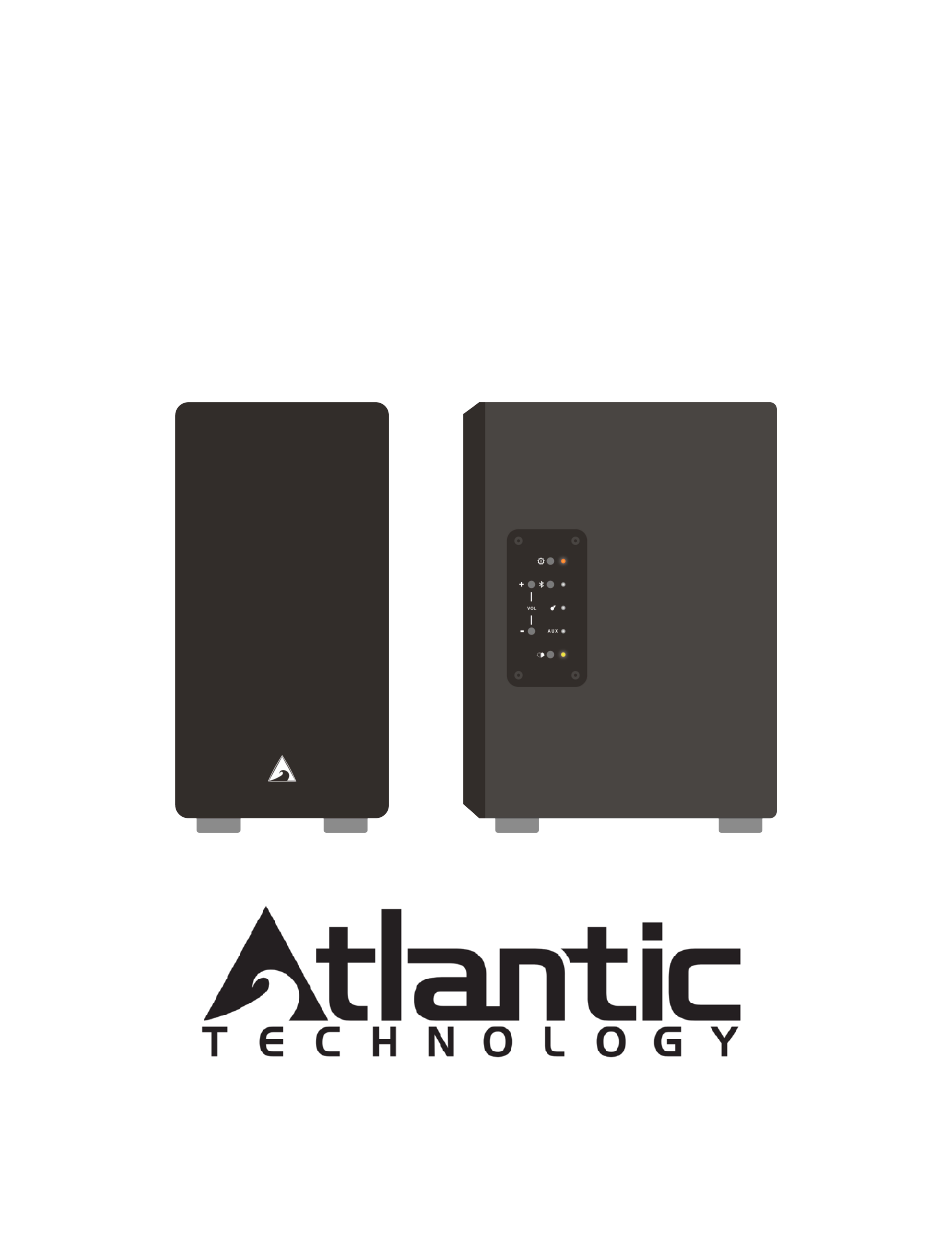

- Page 1 FS-252 WIRELESS BOOKSHELF SPEAKER USER GUIDE 343 Vanderbilt Avenue Norwood, MA 02062 Telephone: (781) 762-6300 Fax: (781) 762-6868...
- Page 2 Important Safety Instructions TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE 12. Use only with the cart, stand, tripod, bracket, or table OR OTHER OUTLET UNLESS THE BLADES CAN BE specified by the manufacturer, or sold with the apparatus. FULLY INSERTED TO PREVENT BLADE EXPOSURE When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
-
Page 3: Table Of Contents
Connecting a Bluetooth Source Using your FS-252 as a SKAA Receiver Using the Line-level Analog Audio Input Using the AUX Input Using Several FS-252 Units Together in a SKAA Network The SKAA cmd App FS-252 Specifications SKAA Trouble Shooting Guide... -
Page 4: Introduction
Introduction 4/18... - Page 5 Introduction 1.Line out Jack See Page 6 for detail 2.Line in Jack See Page 12 for detail 3.AUX Input Jack See Page 12 for detail 4.Left Speaker output See Page 6 for detail 5.main power 100-240vac in 6.main power on/off 7.Left Speaker input See Page 6 for detail 8.Gear Button Click to switch modes Hold to power on/off See Page 7 for detail...
-
Page 6: Initial Setup
The FS-252 supports both active and passive speakers. If you are connecting active speakers (i.e. if your speakers use power cables), connect them to the output labeled "Line out". You have to connect FS-252 Right Speaker to FS-252 Left speaker by cable 6/18... - Page 7 Before attempting to use any buttons on the control plate, ensure that the power switch on the back of your FS-252 is flipped to the "On" position. Next, hold the Gear button for two seconds to power on the unit. Once the power LED is illuminated, click the Gear button to cycle through modes.
-
Page 8: Connecting A Bluetooth Source
Bluetooth LED will be illuminated. Enter pairing mode on the Bluetooth device you want to connect to the FS-252 and select the FS-252 from the discoverable devices list. This diagram represents the Bluetooth behavior of the FS-252 8/18... - Page 9 Initialization begins when the user enters BT Mode or BT Relay Mode from any other mode, by clicking the Gear button. Initialization also begins if the user powers on the FS-252 in either BT Mode or BT Relay mode. Pairing List The Paired List contains up to eight of the most recent hosts which have successfully paired and connected with the FS-252.
- Page 10 Using your FS-252 SKAA Receiver The FS-252 can be used as an SKAA receiver when in SKAA mode. An SKAA receiver receives wireless audio from any SKAA transmitter. For a complete list of SKAA transmitters visit www.skaastore.com/products/ transmitters/ Ensure your SKAA transmitter is powered, and that your host device is playing audio.
-
Page 11: Using Your Fs-252 As A Skaa Receiver
Using your FS-252 as a SKAA Receiver Indicator Bond Button 11/18... -
Page 12: Using The Line-Level Analog Audio Input
LED above AUX will illuminate. Make sure no cables are plugged into the AUX jack located on the back of the FS-252. audio signal from the Line in input on the back. Using the AUX Audio Input Click the Gear button to cycle to AUX mode. When in AUX mode, the yellow LED above AUX will illuminate. -
Page 13: Using Several Fs-252 Units Together In A Skaa Network
Using Several FS-252 Units Together in a SKAA Network Both Bluetooth and AUX modes come equipped with an optional Relay mode. When in either BT Relay or AUX Relay modes, the white Relay LED will be illuminated in addition to the Bluetooth or AUX LEDS. When in one of the Relay modes, your Bluetooth or AUX signal is relayed over SKAA to up to four more SKAA receivers. - Page 14 (Up to 50 m) This will also work with an RCA line level source plugged into the Line In input on the back of the FS-252. In this case, make sure there is nothing plugged into the Audio Input jack on the back.
- Page 15 Google Play. SKAA cmd is great for getting the most out of your FA-252. To use SKAA cmd, throw your FS-252 into SKAA mode, download the app, insert a SKAA transmitter and check out all of the customizable features of SKAA.
-
Page 16: Skaa Trouble Shooting Guide
SKAA Trouble Shooting Guide The purpose of this guide is to provide answers to frequently asked questions when using SKAA products for the first time. Note: SKAA provides a very simple, one-button, one-LED, interface. These two components are called, and will be referred to as, the Bond Button and the SKAA Indicator. At any time, when interacting with SKAA, the user may locate the Bond Button and rapidly click it six times to reset SKAA to its factory settings. - Page 17 SKAA Trouble Shooting Guide 3.What is the difference between Green Mode and Amber Mode and how do I use them? When you power on a SKAA speaker for the first time, it will be in Amber Mode. You can identify a speaker in Amber Mode by the behavior of its SKAA Indicator (if the SKAA Indicator is amber, the speaker is in Amber Mode).
- Page 18 Important Safety Instructions FCC Compliance Statement European Union Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This symbol on the product(s) and / or accompanying documents means 1.
- Page 19 3. SKAA operating frequency is 2403.5MHz-2477.3MHz Simplified EU Declaration of Conformity Hereby, TECH-AUDIO CO., LTD declares that this FS-252 product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. Full text of EU declaration of conformity is available at www.skaa.com/tlc/ BT 3.0 RF Output :1.64dBm...
