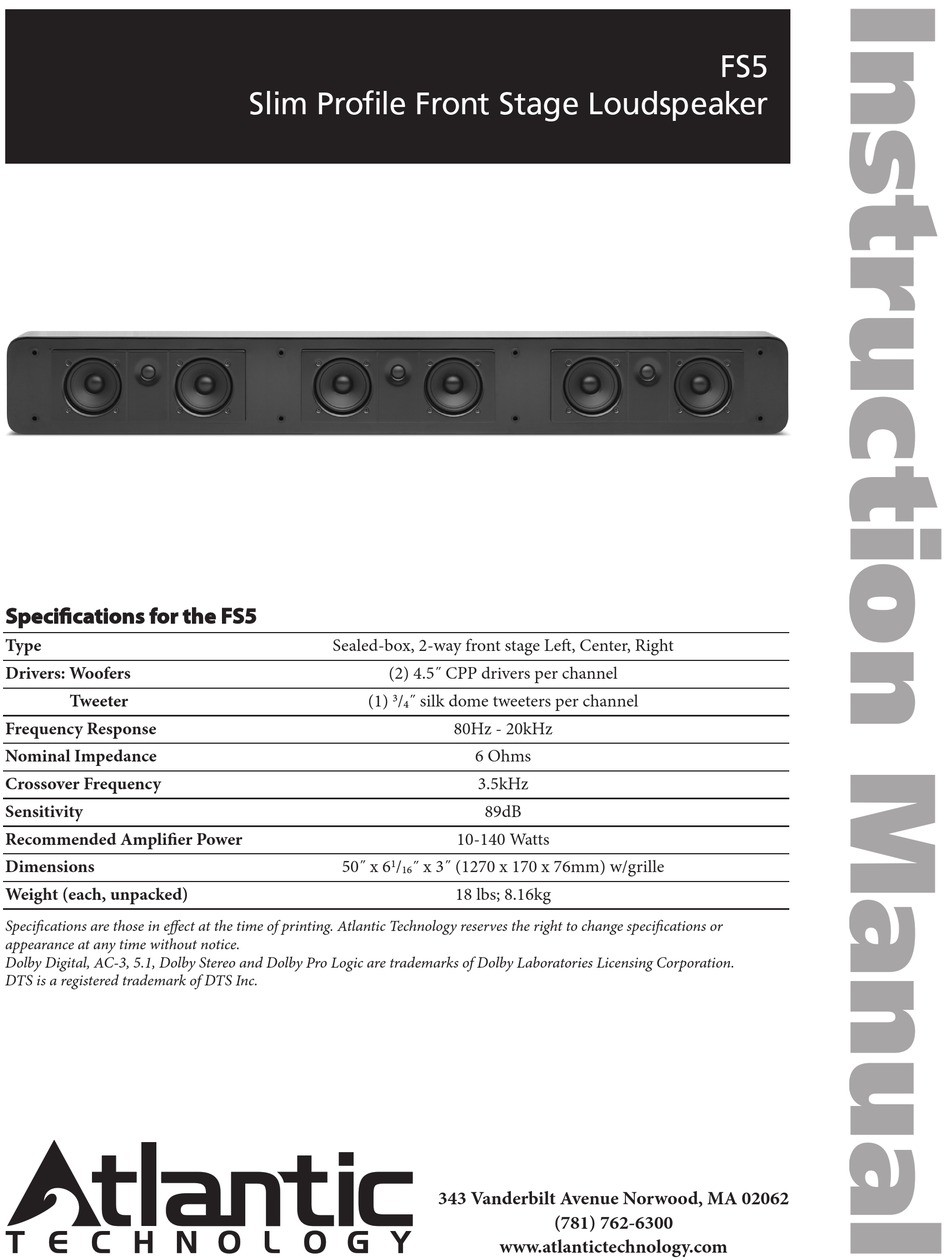

S5
Slim Profile ront Stage Loudspeaker
Specifications for the FS5
Type
Sealed-box, 2-way front stage Le, Center, Right
Drivers: Woofers
(2) 4.5˝ CPP drivers per channel
Tweeter
(1)
3
/
˝ silk dome tweeters per channel
4
Frequency Response
80Hz - 20kHz
Nominal Impedance
6 Ohms
Crossover Frequency
3.5kHz
Sensitivity
89dB
Recommended Amplifier Power
10-140 Watts
Dimensions
50˝ x 6
1
/
˝ x 3˝ (1270 x 170 x 76mm) w/grille
16
Weight (each, unpacked)
18 lbs; 8.16kg
Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or
appearance at any time without notice.
Dolby Digital, AC-3, 5.1, Dolby Stereo and Dolby Pro Logic are trademarks of Dolby Laboratories Licensing Corporation.
DTS is a registered trademark of DTS Inc.
343 Vanderbilt Avenue Norwood, MA 02062
(781) 762-6300
www.atlantictechnology.com
Advertisement
Related Manuals for Atlantic FS5
Summary of Contents for Atlantic FS5
- Page 1 Weight (each, unpacked) 18 lbs; 8.16kg Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or appearance at any time without notice. Dolby Digital, AC-3, 5.1, Dolby Stereo and Dolby Pro Logic are trademarks of Dolby Laboratories Licensing Corporation.
-
Page 2: Connecting Your System
Connect them to the appropriate push terminal, being careful to observe polarity (positive to the e slim profile design of the FS5 allows it to easily blend in when mounted red terminal, negative to the black terminal). above or below a flat panel display. e speaker can be mounted most simply by... - Page 3 To mount your speakers on a wall, we have installed metal key-hole brackets on the back of the FS5 speakers. Be sure to use a strong screw whose head and sha will fit within the keyhole opening and slot. Also be sure to drive the screw well into a...
-
Page 4: Limited Warranty
To obtain Warranty service: Please contact your local Atlantic Technology keep your original Invoice or Bill of Sale for proof of purchase, meet the reseller to determine if they are an Authorized Repair Center for Atlantic stated requirements, and follow the instructions listed within the Warranty.
