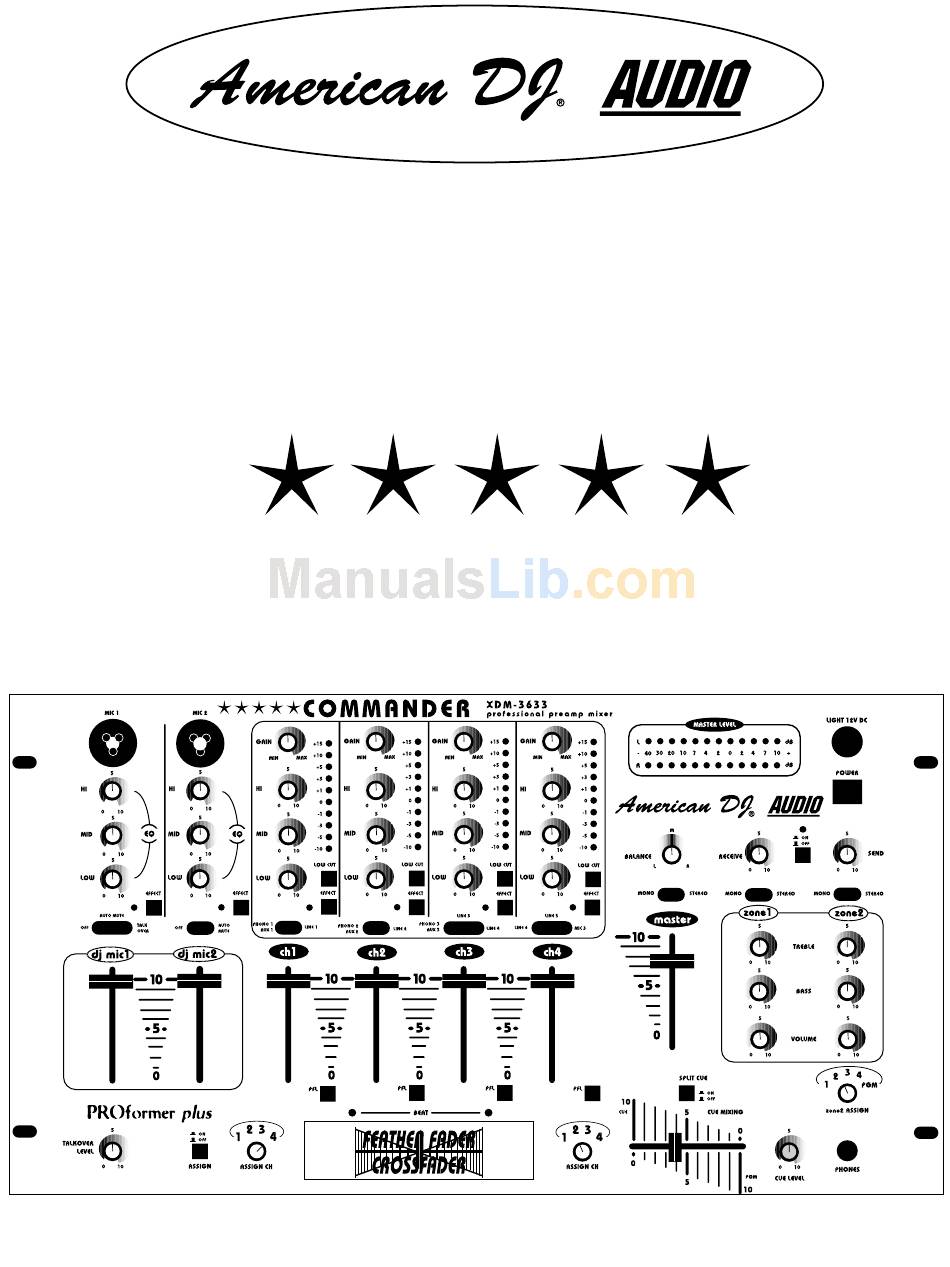

  • Page 1 XDM-3633 “COMMANDER” professional preamp mixer USER INSTRUCTIONS djs wanted.
  • Page 2 (replaceable/Made in Japan) • 2 zones with bass and treble • Auto mute • Talkover level control all selectable at the same time at each end of the rear panel Specifications subject to change without notice. XDM-3633 User Instructions page 2...

  • Page 3: Table Of Contents

    • Technical Specifications...p.7 • Warranty & Service...p.8 Thank you for purchasing this American DJ® product. The XDM-3633 Is ready to be used, there Is no assembly required. Please read the following Instructions before installing or using your new unit. The XDM-3633 has a 2 year limited warranty!

  • Page 4: Operating Determinations

    MASTER FADER (31). • The XDM-3633 features three microphone inputs. MIC 1 and MIC 2 Neutrik™ connector jacks (9) are on the front panel for 1/4 inch (6.3mm) jack plugs or XLR-plugs. With the TALKOVER switch associated with MIC 1 (11), you can attenuate all other signals without affecting the microphone volume.

  • Page 5: Functions (Front Panel)

    (2) LOW / MID / HI CONTROL - Used to increase or decrease the LOWs (bass), MIDs and HIs (treble) of the input signal for each channel. The XDM-3633 features “Rotary Kills” with -30dB to +20dB output control. (3) PHONO / AUX / LINE SWITCH - Used to select the input to be sent to the individual channel. Channels 1 and 2 may be switched PHONO/AUX or LINE, Channel 3 may be switched PHONO/AUX, LINE 3 or LINE 4, and Channel 4 may be switched LINE 5, LINE 6 or MIC 3.
  • Page 6 (33) BALANCE CONTROL - Used to adjust how much of the signal is sent to the left and right MASTER OUT jack (43). (34) MASTER LEVEL DISPLAY - The LEDs show the signal level of the right and left master level output. XDM-3633 User Instructions page 6...
  • Page 7 (50) AC VOLTAGE SELECTOR - Select between 115V/50Hz or 230V/60Hz. Make sure that the selector is set to the proper voltage you are using. LEFT RECEIVE SEND ZONE 2 ZONE 1 MASTER EFFECT OUTPUT XDM-3633 User Instructions page 7 AUX 3 PHONO 3 AUX 2 LIGHT CONTROL LINE 6 LINE 5 LINE 4 LINE 3 PHONO 3...

  • Page 8: Replacing The Crossfader

    12 lbs. / 6.5 kg Warranty & Service The XDM-3633 has a 2-year limited warranty. Mail in warranty card as soon as possible. For Service, contact your local American DJ® Dealer. © American DJ® AUDIO Los Angeles, CA 90058 USA Specifications subject to change without notice.
