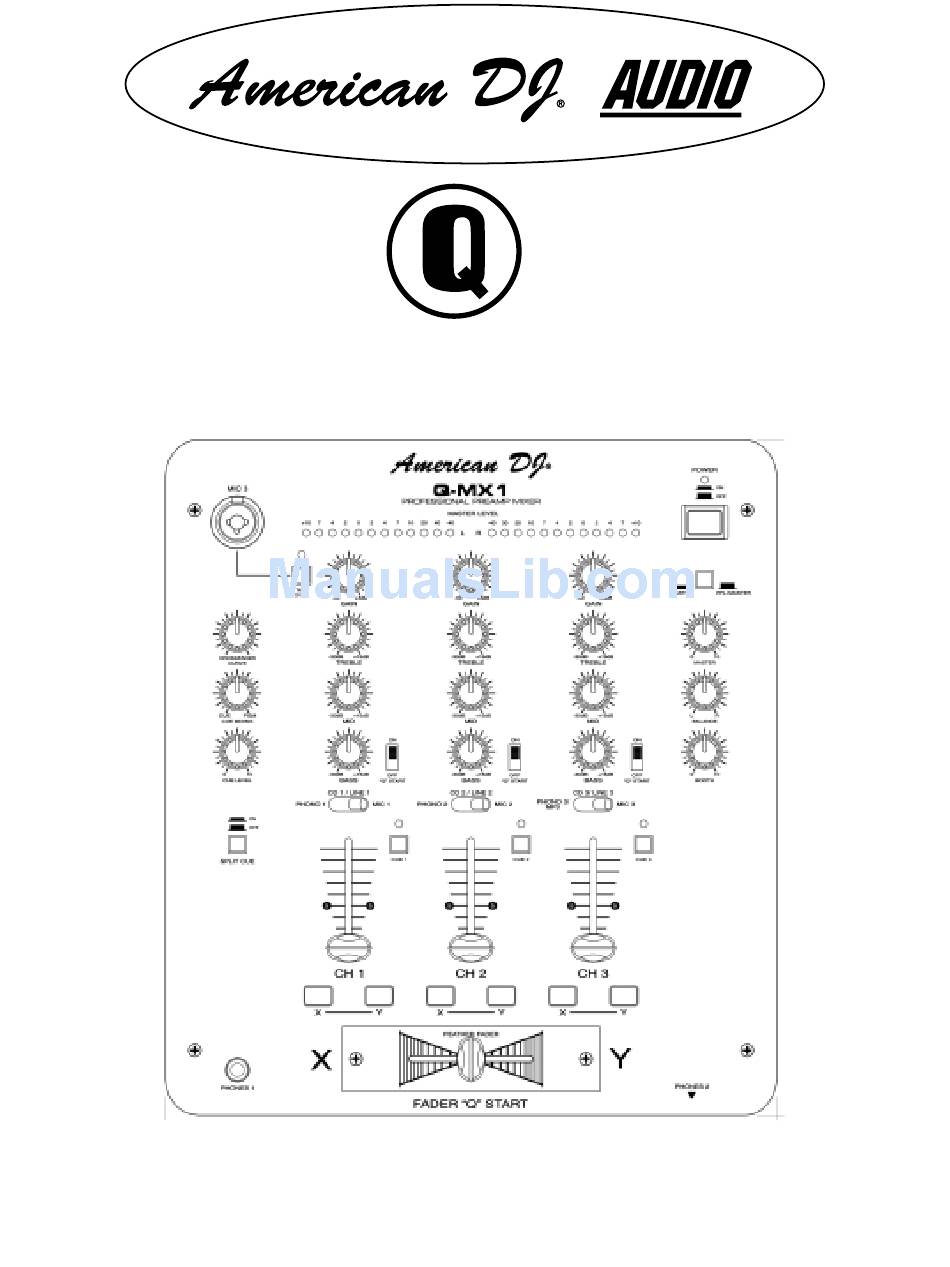

- Page 1 Q-MX1 USER INSTRUCTIONS...
-
Page 2: Main Features
Balanced XLR), Booth (RCA) and REC (RCA) • -30dB Rotary Kills for Treble, Bass & Mids Professional products designed for the working DJ. American DJ AUDIO Los Angeles, CA 90058 USA © ® Specifications subject to change without notice. Q-MX1 User Instructions page 2... -
Page 3: Table Of Contents
This mixer includes several innova- operate your new mixer. Please save all your tive features that pack a big punch! The Q-MX1™ documentation for future reference. comes with a 2 year limited warranty! 3. -
Page 4: Functions (Front Panel)
The "Y" assign works in the same fashion. When a channel is assigned to neither "X" nor "Y" the output volume will only be controlled by the channel's fader level. These button also function as a "TRANS American DJ Supply - www.americandj.com - Q-MX1 User Instructions page 4 © ®... - Page 5 EQ. These controls are used to increase or decrease the LOW's, MID’s, and HI’s of the output signal. The Q-MX1 features "Rotary Kills" with a -30dB to +20dB gain control. Turn the knob counter-clockwise to decrease a value or clockwise to increase a value.
- Page 6 Be sure to turn the Cue Mixing Knob (7) to the cue position to hear the selected channel source. American DJ Supply - www.americandj.com - Q-MX1 User Instructions page 6 © ®...
- Page 7 28. GND (GROUND TERMINAL) - Connect each of your turntable ground leads to this terminal. This will reduce the humming and popping noises associated with magnetic phono cartridges. American DJ Supply - www.americandj.com - Q-MX1 User Instructions page 7 © ®...
- Page 8 "AUX 3" position should be connected to AUX LINE input. The red colored RCA jack represents the right channel input and the white represents the left channel input. American DJ Supply - www.americandj.com - Q-MX1 User Instructions page 8 © ®...
-
Page 9: Set-Up
The Q-MX1 allows you two types of output connectors Balanced XLR (23) and Unbalanced RCA (30, 31, and 32). Use these connection to connect the output signal from a mixer, cross-over or EQ to your Q-MX1 mixer. A balanced connection is recommended for cable runs longer that 10ft. When constructing your own XLR cables follow the pin confi... - Page 10 Turntables can only be connected to the Phono Line Level RCA Jacks (34, 36, and 39). Be sure the Line Level Switches (37) are in the "PHONO" position. American DJ Supply - www.americandj.com - Q-MX1 User Instructions page 10 © ®...
- Page 11 10 feet. Using the balanced jacks will ensure a clean signal through out the entire audio system. American DJ Supply - www.americandj.com - Q-MX1 User Instructions page 11 © ®...
-
Page 12: Operating Instructions
CROSSFADER REPLACEMENT INSTRUCTIONS The crossfader is "Hot Swappable" which means it may be replaced at any time, even when power is applied. Only replace with American Audio Part Feather Fader Plus. Replacing with any other model fader may seriously damage your unit. -
Page 13: Technical Specifications
+13 ± 1dB, -27 ± 2 dB at 13KHz Warranty & Service: The Q-MX1 has a 2-year limited warranty. Please mail in warranty card as soon as possible to validate your warranty. For any service related issues please contact American DJ customer support at (800) 322-6337, Monday through Friday 9:00 am to 5:00 pm Pacific Standard Time, or contact us on the web at support@americandj.com. - Page 14 American DJ World Headquarters: 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 Fax: 323-582-2610 Web: www.americandj.com E-mail: info@americandj.com...
