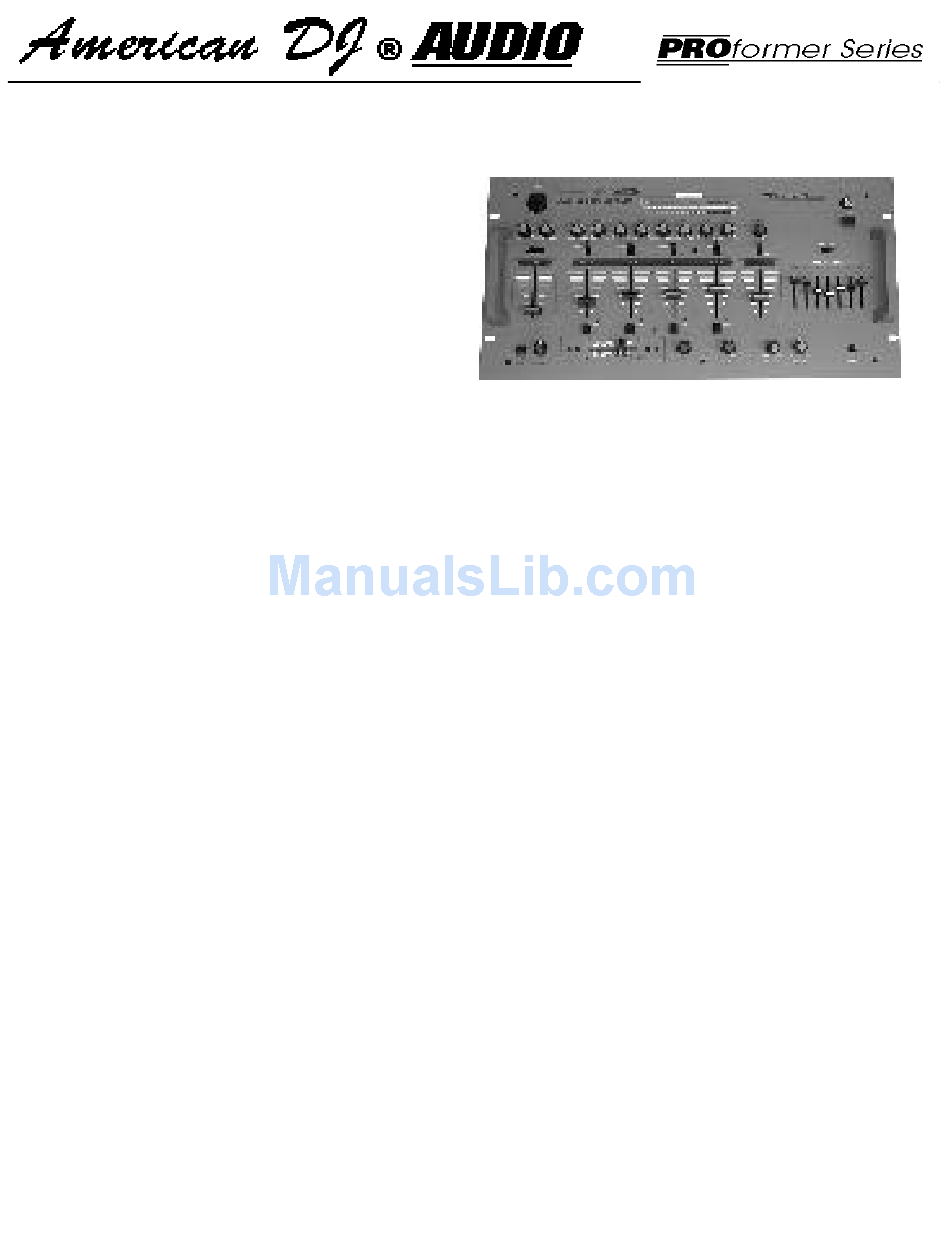

User Instructions

X D M - 3 5 2

PREAMP MIXER

Thank you for purchasing this American DJ® product. The XDM-352 is ready to be used,

there is no assembly required. Please read the following instructions before installing

or using your new unit. The XDM-352 has a 2 year limited warranty!

C A U T I O N ! -

Keep this device away from rain and moisture!

Safety Instructions

Always plug in the power last. Make sure that the Power switch is set to the OFF position before connecting other devices

to the mixer.

Keep away from heaters and other heating sources!

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch on the mixer

immediately. The arising condensation of water might damage your device. Leave the device switched off until it has

reached room temperature.

Never put any liquids on the mixer or close to it. Should any liquid enter the device, disconnect from main power

immediately. Have the device checked by a qualified service technician before operating again. Any damage caused by

liquid entering the device is not subject to warranty!

Never let the AC cord come in contact with other cables! Handle the AC cord and all AC connections with particular care.

Make sure that the available voltage is not higher than stated on the AC voltage selector (25).

Before the device is switched on, all fader and volume controls should be set to 0 or minimum position.

Damages caused by manual modifications to the device or unauthorized operation by unqualified persons are not

subject to warranty.

There are no user serviceable parts inside the mixer. For maintenance and/or service, contact an authorized

American DJ® dealer.

Specifications subject to change without notice. XDM-352 User Instructions page 1

Table of Contents

Do you have a question about the XDM-352 and is the answer not in the manual?

Page 1 X D M - 3 5 2 PREAMP MIXER Thank you for purchasing this American DJ® product. The XDM-352 is ready to be used, there is no assembly required. Please read the following instructions before installing or using your new unit. The XDM-352 has a 2 year limited warranty!
Page 2 (17). You can set the output level with the channel faders (4). • The XDM-352 features two microphone inputs. The Nuetrik™ connector jack (20) on the front panel is for 1/4 inch (6.3mm) jack plugs and XLR-plugs. With the TALKOVER switch (22), you can attenuate all other signals without affecting the microphone volume.
Page 3 (10) BOOTH LEVEL CONTROL - THE XDM-352 features a DJ BOOTH monitor system. Connect your monitor system to the BOOTH OUT jacks (33) on the rear panel. You can adjust the output level with the BOOTH LEVEL knob.
Page 4 (25) MIC 2 JACK - Connect your second microphone with 1/4 inch (6.3mm) jack plug here. (26) (26A) GND (Ground terminals) - The XDM-352 features two convieniently located grounds. Connect the ground lead of the turntable with this terminal. This helps to reduce humming and popping noises.
Page 5 19” W x 9.5” D x 3.25” H 482 x 242 x 108 mm Weight 12 lbs. / 4.5 kg © American DJ® AUDIO Los Angeles, CA 90058 USA Specifications subject to change without notice. XDM-352 User Instructions page 5...
