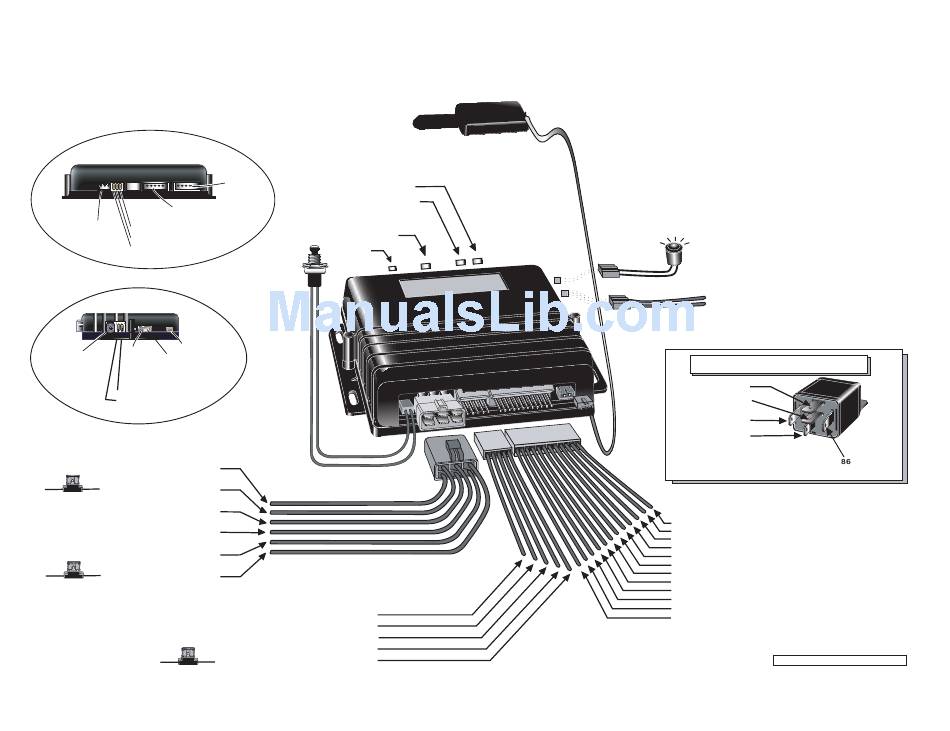

Autostart AS-1727 Wiring Schematic

WIRING SCHEMATIC
REAR VIEW OF MODULE
Data Port (Optional)
INV-200 CONNECTOR
Accessories 2 Jumper
(Door Lock pulse
inverter) Ignition 2 Jumper
Starter 2 Jumper
SIDE VIEW OF MODULE
OO
L.E.D PLUG-IN
CONNECTOR
Programming
L.E.D.
Assistance Button 2. (-) PARKING LIGHTS
(Optional)
1. (-) HORN Output
(Hood Switch
Interrupt)
TACH Threshold: HIGH
TACH Threshold: NORMAL
YELLOW ........... IGNITION
RED ..............12V (Battery)
30 A Fuse
ORANGE ...ACCESSORIES
(Heater Blower Motor)
PURPLE ............. STARTER
GREEN ............ 5 th RELAY
RED ............+12V (Battery)
30 A Fuse
1- BLACK ........................ GROUND (-)
2- PURPLE ........................... TACH (AC)
3- GREY ................. HOOD SWITCH (-)
4- ORANGE ........ BRAKE SWITCH (+)
5- YELLOW ....... PARKING LIGHTS (+)
15 A Fuse
WIRING SCHEMATIC
Optional
programming
port INV-200 Connector
Jumpers for second outputs
(Starter, Ignition, Accessories)
(Optional)
Data Port
Optional
programming
port
PUSH-BUTTON
VALET SWITCH
(Optional on
certain models)
Warning: Use pliers when removing the
L.E.D. connector, do not pull out the cord
as you could tear off the wires from the
connector, leaving the latter inside the
module.
(Optional on certain models)
+2 VOLT L.E.D.
-
2. YELLOW .......... ( ) PARKING LIGHTS
-
1. BLUE/WHITE ... ( ) HORN Output
Optional Starter Kill Relay
87
N/A
87
STARTER WIRE A
(Solenoid Side)
IGNITION (+) 85
30
STARTER WIRE
(Key Side)
Start Kill Output (-)
12- YELLOW .......................... (-) AUX 5 - RIGHT Sliding door output
11- GREY ............................... (-) AUX 4 - LEFT Sliding door output
10- WHITE .............................. (-) GROUND out when running
9- PURPLE ............................ (-) EXT. TRIGGER
8- ORANGE ........................... (-) AUX 2 output
7- WHITE/ORANGE ............... (-) Starter kill output
6- BLUE/WHITE ..................... (-) Priority door output
5- WHITE/GREEN .................. (-) DISARM
4- WHITE/BROWN ................. (-) ARM
3- GREEN .............................. (-) UNLOCK
2- BROWN ............................. (-) LOCK
1- BLUE ................................. (-) AUX 3 output (TRUNK)
V1.00 TL October 9, 2005
