Summary of Contents for Fujitsu Siemens Computers 4612 FA
- Page 1 BETRIEBSANLEITUNG BETRIEBSANLEITUNG BETRIEBSANLEITUNG BETRIEBSANLEITUNG OPERATING MANUAL OPERATING MANUAL OPERATING MANUAL OPERATING MANUAL 4 6 1 2 F A 4 6 1 2 F A 4 6 1 2 F A 4 6 1 2 F A LCD-Bildschirm / Moniteur / Monitor / Skärm / Beeldscherm...
- Page 2 Sie haben ..technische Fragen oder Probleme? Wenden Sie sich bitte an unseren Help Desk (siehe Garantiekarte). Aktuelle Informationen zu unseren Produkten, Tipps, Updates usw. finden Sie im Internet: http://www.fujitsu-siemens.com Is there ..any technical problem or other question you need clarified? Please contact our Help Desk (see Guarantee Card).
- Page 4 Este manual ha sido impreso sobre papel reciclado. Questo manuale è stato stampato su carta da riciclaggio. Denna handbok är tryckt på recyclingpapper. Dit handboek werd op recycling-papier gedrukt. Herausgegeben von/Published by Fujitsu Siemens Computers GmbH A26361-K628-Z100-1-5E19 A26361-K628-Z100-1-5E19 A26361-K628-Z100-1-5E19 A26361-K628-Z100-1-5E19 Bestell-Nr./Order No.:...

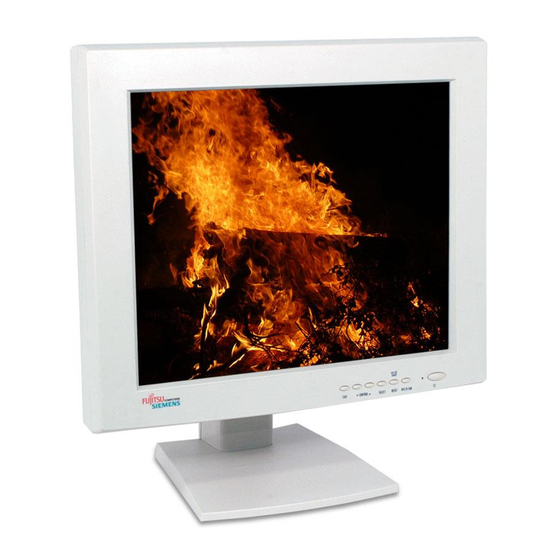

- Page 5 4612 FA LCD-Bildschirm LCD monitor Moniteur LCD Monitor LCD Monitor LCD LCD-skärm LCD-beeldscherm Betriebsanleitung Operating Manual Ausgabe Mai 2000 May 2000 edition Deutsch English Français Español Italiano Svenska Nederlands TCO'99...
- Page 6 Zuwiderhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten, insbesondere für den Fall der Patenterteilung oder GM-Eintragung. Liefermöglichkeiten und technische Änderungen vorbehalten. Copyright ã Fujitsu Siemens Computers GmbH 2000 VESA, DDC and DPMS are registered trademarks of Video Electronics Standards Association. All rights, including rights of translation, reproduction by printing, copying or similar methods, even of parts are reserved.
-
Page 7: Table Of Contents
Contents Introduction...1 Notational conventions Important notes ...2 Safety ...2 Cleaning ...3 Transport ...3 FCC Class B Compliance Statement Declaration of Conformity ...4 Power cable...5 Energy Star Guidelines...6 CE certificate ...6 Disposal and recycling...6 Checking the contents of the consignment Installing an ergonomic video workstation Connecting the monitor...8 Connecting cables to the monitor... -
Page 9: Introduction
A graphics card (screen controller) with VGA interface or a digital graphics card with DVI interface is required to control the 4612 FA LCD monitor. The monitor processes the data supplied to it by the screen controller. The screen controller/the associated driver software is responsible for setting the modes (resolution and refresh rate). -
Page 10: Notational Conventions
Color monitor 4612 FA Notational conventions The meanings of the symbols and fonts used in this manual are as follows: Pay particular attention to texts marked with this symbol. Failure to observe this warning endangers your life, destroys the system, or may lead to loss of data. -
Page 11: Cleaning
Transport the monitor with care and only in its original packaging or another corresponding packaging fit to protect it against knocks and jolts. Never drop the LCD monitor (danger of glass breakage). A26361-K628-Z100-1-5E19 Color monitor 4612 FA "Technical data" chapter. English - 3... -
Page 12: Fcc Class B Compliance Statement
Consult the dealer or an experienced radio/TV technician for help. Fujitsu Siemens Computers GmbH is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Fujitsu Siemens Computers GmbH. The correction of interferences caused by such unauthorized modification, substitution or attachment will be the responsibility of the user. -
Page 13: Power Cable
Size of conductors in cable 18 AWG 16 AWG 14 AWG 18 AWG 17 AWG Earth Neutral Live Color monitor 4612 FA Maximum current rating of the device 10 Amps 12 Amps 12 Amps 10 Amps 12 Amps English - 5... -
Page 14: Energy Star Guidelines
20 million tons of carbon dioxide into the atmosphere – the equivalent of 5 million automobiles. As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product meets the Energy Star guidelines for energy efficiency. -
Page 15: Checking The Contents Of The Consignment
Should you discover that the delivery does not correspond to the delivery note, notify your local sales outlet immediately. It is recommended not to throw away the original packing material. Keep it for future transportation. A26361-K628-Z100-1-5E19 Color monitor 4612 FA English - 7... -
Page 16: Installing An Ergonomic Video Workstation
Color monitor 4612 FA Installing an ergonomic video workstation Before you set up your equipment you should select a suitable position for working at the monitor. Please observe the following advices when installing a video workstation. Avoid direct and reflected glare. Avoid glare from electric preferable viewing sector 0°... -
Page 17: Connecting Cables To The Monitor
Connect the connector of the power cable to the power connector (4) of the monitor and ensure a secure connection. Ê Mount the cover over the connections again. A26361-K628-Z100-1-5E19 3 = DVI connector 4 = Power connector DVI connector D-SUB connector Color monitor 4612 FA English - 9... -
Page 18: Connecting Cables To The Computer
Color monitor 4612 FA Connecting cables to the computer Information on the computer connections and interfaces is contained in the operating manual for your computer. If your computer has two monitor ports ("onboard" screen controller and separate graphics card), the monitor port for the separate graphics card is usually active. -
Page 19: Switching The Monitor On/Off
If your computer has a power management function (energy-saving mode), you should read the "Notes on power A26361-K628-Z100-1-5E19 1 = ON/OFF switch 2 = Power indicator 3 = Buttons for the OSD menu (On-Screen-Display) management" of the monitor in this chapter. Color monitor 4612 FA English - 11... -
Page 20: Notes On Power Management
Color monitor 4612 FA Notes on power management If your computer is equipped with power management, the monitor can support this function fully. Here the monitor does not distinguish between the individual energy-saving modes of the computer (standby mode, suspend mode and OFF mode), as it is capable of immediately switching into the mode with the highest energy-saving effect. - Page 21 With the the marking down and view the menu items on the second page. With the move the marking up. Ê Ê Color monitor 4612 FA RESET DVI / D-SUB button you can move button you can If necessary, use the mark another option, e.
- Page 22 Color monitor 4612 FA Depending on the menu item (in this case Position), a setting window is offered with different functions. Using the SELECT button you can activate the functions in the setting window one after the other. POSITION LEFT / RIGHT...
- Page 23 Set mode for the optimum display of texts. Normal Mode Set mode for the optimum display of texts and graphics/images. Graphic Mode Set mode for the optimum display of graphics and images. A26361-K628-Z100-1-5E19 Color monitor 4612 FA English - 15...
- Page 24 Color monitor 4612 FA Switching full-screen mode on or off (Expansion Mode) If your graphic card is only capable of displaying a resolution lower than 1280 x 1024, the scaling process of the monitor can display up to 1280 x 1024 pixels by determining intermediate values (with interpolation).
- Page 25 Under Display Mode you find information on the display mode currently set. Displaying monitor data (Monitor Information) You will find the model designation and the serial number of the monitor under Monitor Information. A26361-K628-Z100-1-5E19 Color monitor 4612 FA "Technical data". English - 17...
-
Page 26: Notes On Ergonomic Color Adjustment
Color monitor 4612 FA Notes on ergonomic color adjustment If you select colors for the display in your application programs, take note of the information below. The primary colors blue and red on a dark background do not produce the minimum required contrast of 3:1 and are therefore not suitable for continuous text and data entry. -
Page 27: Technical Data
220 V -240 V, 50 Hz - 60 Hz < 65 W (ON, Normal mode) < 5 W in the energy-saving mode (standby mode, suspend mode and OFF mode) Color monitor 4612 FA 3 Hz, 0.6 A 3 Hz, 0.3 A English - 19... -
Page 28: Vesa-Ddc-Compatible Vga Interface
VGA interface, it can automatically read the data for ensuring optimum operation from your monitor and select the appropriate settings. If the monitor 4612 FA is not yet displayed in the list of monitors, you can select the following monitor instead:... -
Page 29: Pin Assignment D-Sub
Video input red Video input green Video input blue Ground Ground Red video ground Green video ground Blue video ground A26361-K628-Z100-1-5E19 Color monitor 4612 FA Meaning +5 V (DDC) Sync. ground Ground DDC-Data H. sync V. sync DDC Clock English - 21... -
Page 30: Monitor Port Dvi
Color monitor 4612 FA Monitor port DVI Meaning TMDS Data2- TMDS Data2+ TMDS Data 2/4 Shield TMDS Data4- TMDS Data4+ DDC Clock DDC Data Analog Vertical Sync TMDS Data1- TMDS Data1+ Error handling Should an error occur, first check the following points. If the distortion is still not eliminated, the monitor should, if possible, be checked on another computer and/or with another data cable. - Page 31 This phenomenon is not due to a monitor defect but to the technology used (IPS display with large viewing angle, IPS = In Plane Switching). A26361-K628-Z100-1-5E19 Color monitor 4612 FA English - 23...
