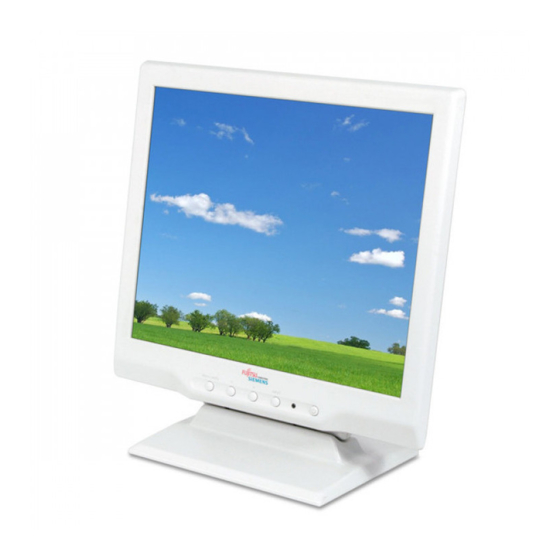

- Page 1 MONITOR .com Betriebsanleitung / Operating Manual 463V FA Deutsch - English...
- Page 2 ... technische Fragen oder Probleme? Wenden Sie sich bitte an unseren Help Desk (siehe Garantieheft). Aktuelle Informationen zu unseren Produkten, Tipps, Updates usw. finden Sie im Internet: http://www.fujitsu-siemens.com Are there ..any technical problems or other questions you need clarified? Please contact our Help Desk (see Warranty Booklet).
- Page 4 Este manual ha sido impreso sobre papel reciclado. Questo manuale è stato stampato su carta da riciclaggio. Denna handbok är tryckt på recyclingpapper. Dit handboek werd op recycling-papier gedrukt. Herausgegeben von/Published by Fujitsu Siemens Computers GmbH A26361-K864-Z100-1-5E19 Bestell-Nr./Order No.: Printed in Taiwan AG 0502...
-
Page 5: Lcd Monitor
463V FA LCD-Bildschirm LCD monitor Betriebsanleitung Operating Manual Ausgabe Mai 2002 May 2002 edition Deutsch English... - Page 6 Dieses Handbuch wurde erstellt von cognitas. Gesellschaft für Technik-Dokumentation mbH www.cognitas.de Copyright ã Fujitsu Siemens Computers GmbH 2002 VESA, DDC and DPMS are registered trademarks of Video Electronics Standards Association. All rights, including rights of translation, reproduction by printing, copying or similar methods, even of parts are reserved.
-
Page 7: Table Of Contents
Contents Introduction...1 Notational conventions ...2 Important notes...2 Safety ...2 Cleaning ...3 Transport ...3 Energy Star Guidelines ...4 CE marking...4 FCC Class B Compliance Statement ...4 Declaration of Conformity ...5 Power cable...5 Disposal and recycling...6 Checking the contents of the consignment ...6 Installing an ergonomic video workstation...7 Connecting the monitor...7 Connecting cables to the monitor...8... -
Page 9: Introduction
A graphics card (screen controller) with VGA interface or a digital graphics card with DVI interface is required to control the 463V FA LCD monitor. The monitor processes the data supplied to it by the screen controller. The screen controller/the associated driver software is responsible for setting the modes (resolution and refresh rate). -
Page 10: Notational Conventions
Colour monitor 463V FA Notational conventions The meanings of the symbols and fonts used in this manual are as follows: Pay particular attention to text marked with this symbol. Failure to observe this warning endangers your life, destroys the device, or may lead to loss of data. -
Page 11: Cleaning
Transport the monitor with care and only in its original packaging or another corresponding packaging fit to protect it against knocks and jolts. · Never drop the LCD monitor (danger of glass breakage). A26361-K864-Z100-1-5E19 Colour monitor 463V FA English - 3... -
Page 12: Energy Star Guidelines
20 million tons of carbon dioxide into the atmosphere - the equivalent of 5 million automobiles. As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product meets the Energy Star guidelines for energy efficiency. -
Page 13: Declaration Of Conformity
U.S.A. Reiner Johannis (408) 571-6051 (408) 571-6196 Maximum current rating of the device 18 AWG 16 AWG 14 AWG 18 AWG 17 AWG Colour monitor 463V FA 10 Amps 12 Amps 12 Amps 10 Amps 12 Amps English - 5... -
Page 14: Disposal And Recycling
Colour monitor 463V FA Disposal and recycling This device has been manufactured to the highest possible degree from materials which can be recycled or disposed of in a manner that is not environmentally damaging. The device may be taken back after use to be recycled, provided that it is returned in a condition that is the result of normal use. -
Page 15: Installing An Ergonomic Video Workstation
The computer power plug must be pulled out! Ê Be sure that the monitor and the computer are switched off. A26361-K864-Z100-1-5E19 lighting. Keep ventilated areas clear. Colour monitor 463V FA edge of desk permissible permissible reaching sector reaching sector 600 mm... -
Page 16: Connecting Cables To The Monitor
Colour monitor 463V FA Connecting cables to the monitor The monitor ports are protected by a cover. 1 = Cover 2 = Connector for the power supply Ê Remove the cover (1). The data cables provided have plugs for the D-SUB connector or the DVI-D connector on the monitor. -
Page 17: Connecting Cables To The Computer
The monitor offers the following possibilities that enable it to be optimally adjusted for the respective user and the respective situation. Adjusting rake and rotation A26361-K864-Z100-1-5E19 Colour monitor 463V FA The rake of the monitor can be adjusted by –5° (forward) and +20° (back) from its vertical position. -
Page 18: Switching The Monitor On/Off
Colour monitor 463V FA Switching the monitor on/off The ON/OFF switch (3) is used for switching the monitor on and off. The power indicator (2) glows green when the monitor and computer are switched on. The power indicator glows orange when the monitor does not receive a video signal or is in the energy-saving mode. -
Page 19: Changing The Monitor Settings
(On-Screen-Display) Use the buttons of the control panel to make the following monitor settings directly while the OSD menu is switched off. A26361-K864-Z100-1-5E19 AUTO INPUT 2 = Power indicator 3 = Power button Colour monitor 463V FA English - 11... -
Page 20: Monitor Settings Using The Osd Menu
Colour monitor 463V FA Performing auto-adjustment of the monitor Ê Press the MENU \ AUTO button for approx. 1 second while the OSD menu is switched off. The Auto Processing message is displayed. Picture quality and position are set to optimum values for your system. - Page 21 A26361-K864-Z100-1-5E19 Colour monitor 463V FA The first symbol (Auto Image Adjust) is highlighted. At the bottom of the OSD menu each button's function is displayed.
- Page 22 Colour monitor 463V FA Performing auto-adjustment Performing auto-adjustment (Auto Image Adjust) The Auto Processing message is displayed. Adjusting the brightness and contrast Calling the Contrast / Brightness / Backlight setting window. Setting the contrast of the display (Contrast) This function allows you to modify the contrast of bright colour tones.
- Page 23 This function allows you to set the sharpness of the interpolation filter. Thus the display can be optimised for pictures or texts. Displaying the monitor information (Information) This function allows you to display e.g. the current resolution and refresh rate. A26361-K864-Z100-1-5E19 Colour monitor 463V FA English - 15...
- Page 24 Colour monitor 463V FA Setting functions in the "Setup Menu" menu Calling the Setup Menu setting window Selecting input signal (Input Select) The monitor can be operated with analogue or digital signals. With this function you can (depending on the graphics card you use) switch over between the analogue and the digital mode.
-
Page 25: Notes On Ergonomic Colour Adjustment
Colour combination very suitable Colour combination not suitable because colour locations are too close together, thin characters are not identifiable or rigorous focusing is demanded of the human eye. A26361-K864-Z100-1-5E19 Characters purple blue cyan green Colour monitor 463V FA yellow English - 17... -
Page 26: Removing The Monitor Base
Colour monitor 463V FA Removing the monitor base Before you can use a swivel arm or a wall bracket, you must remove the monitor base: The monitor surface is susceptible to scratching! Ê Switch off the monitor and pull the power plug out of the power socket. -
Page 27: Vesa-Ddc-Compatible Vga Interface
VGA interface, it can automatically read the data for ensuring optimum operation from your monitor and select the appropriate settings. If the monitor 463V FA is not yet displayed in the list of monitors, you can select the following monitor instead:... -
Page 28: Preset Operating Modes
Colour monitor 463V FA Preset operating modes The picture position and size have been set to optimum values at the factory for the operating modes listed above. Depending on the screen controller used, it may be necessary to adjust the display position and size. In this case, you can change and save the settings (see "Operation of the monitor"). -
Page 29: Monitor Port Dvi-D
Check whether the monitor is switched on. Ê Check whether the power cable on the monitor is connected correctly. Ê Check whether the computer is switched Colour monitor 463V FA Styl Meaning TMDS Data0- TMDS Data0+ TMDS Data 0/5 Shield... - Page 30 Colour monitor 463V FA Having this problem? No display (power indicator lights) Picture position is not correct Picture is shaking 22 - English Check the following points: Ê Check whether the computer is switched Ê Check whether the data cable for the monitor is correctly attached to the monitor port on the computer.
- Page 31 Picture disturbances (horizontal lines, picture noise) The screen becomes darker Image of last screen display still visible A26361-K864-Z100-1-5E19 Colour monitor 463V FA Check the following points: Ê Press the AUTO \ AUTO button to perform the auto-adjustment of the screen.
- Page 32 Colour monitor 463V FA Permanently unlit or lit pixels 24 - English The standard of production techniques today cannot guarantee an absolutely fault-free screen display. A few isolated constant lit or unlit pixels may be present. The maximum permitted number of pixels faults is stipulated in the stringent international standard ISO 13406-2 (Class II).
