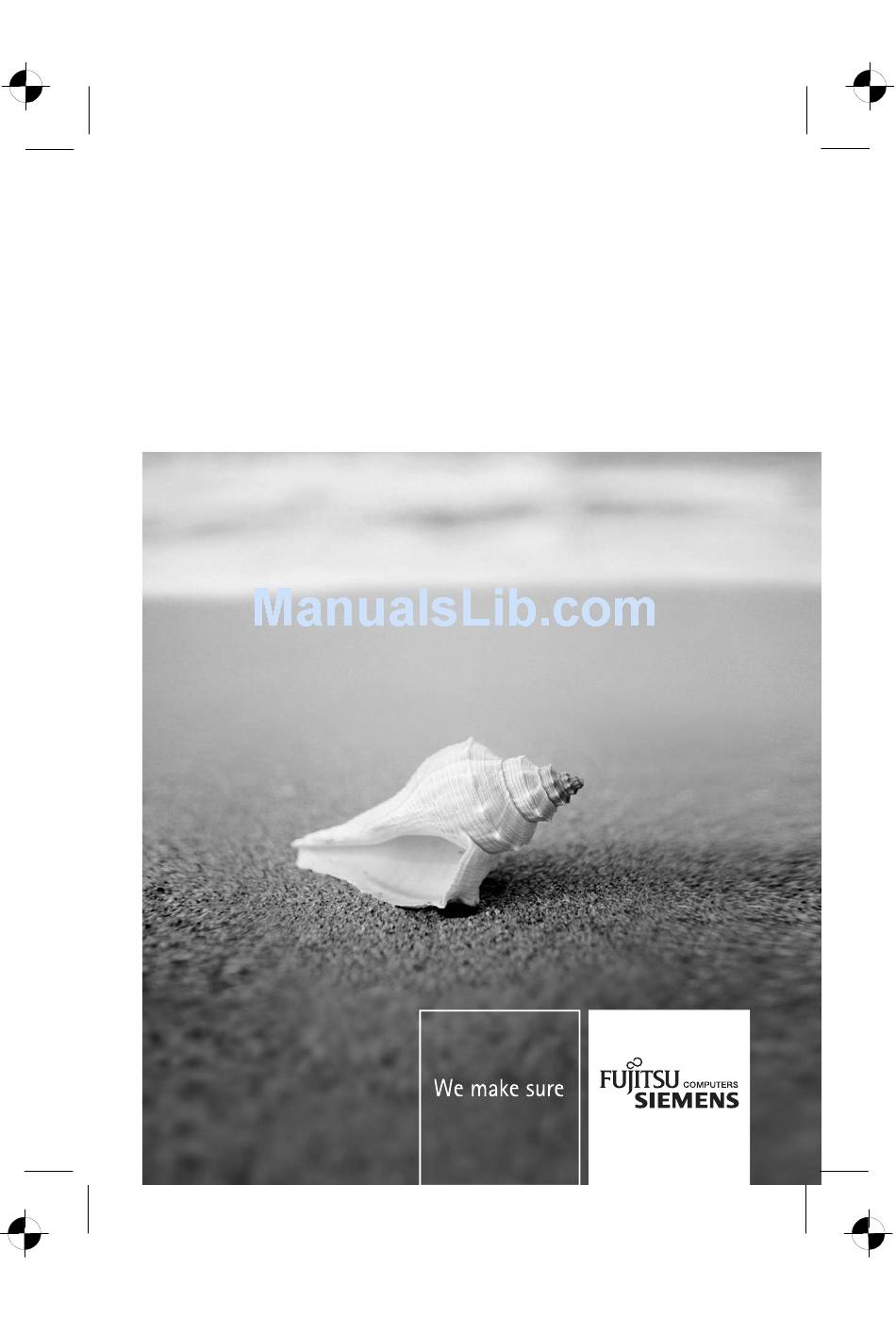

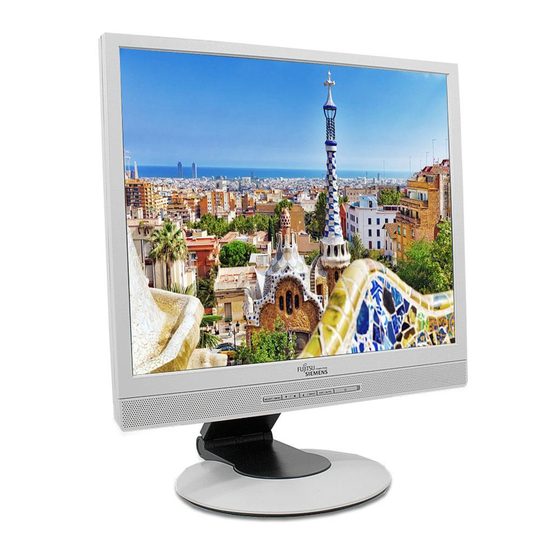

- Page 1 Monitor Deutsch, English, Français, Español, Português, Erste Schritte / Getting Started Italiano, Svenska, Nederlands, Dansk, Suomi, Pycckий, Norsk, Eesti keel, Ελληνικά, Lietuviškas, Latviski, Polski, Slovensko, Slovenský, Česky, Magyar SCALEOVIEW L17-6...
- Page 2 Sie haben ..technische Fragen oder Probleme? Wenden Sie sich bitte an unseren Help Desk (siehe Garantieheft). Aktuelle Informationen zu unseren Produkten, Tipps, Updates usw. finden Sie im Internet: http://www.fujitsu-siemens.com Are there ..any technical problems or other questions you need clarified? Please contact our Help Desk (see Warranty Booklet).
-
Page 3: Technical Data
SCALEOVIEW L17-6 ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Technical data Dimensions and weight (LCD monitor) Visible diagonals: 43 cm (17”) Screen size : 338 mm x 270 mm Dimensions (W x H x D) incl. monitor base : 377 mm x 392 mm x 170 mm... - Page 6 Dieses Handbuch wurde erstellt von cognitas. Gesellschaft für Technik-Dokumentation mbH – www.cognitas.de Herausgegeben von/Published by Fujitsu Siemens Computers GmbH Printed in Taiwan AG 0107 01/07 Ausgabe/Edition 1 Bestell-Nr./Order No.: A26361-K1169-Z200-1-M119 Edition 1...
- Page 7 Deutsch Magyar Русский English Norsk Français WEEE SCALEOVIEW Eesti keeles L17-6 Español Ελληνικά Português Lietuviškas Italiano Erste Schritte Latviski Getting Started Svenska Polski Nederlands Slovensko Dansk Slovenský Suomi Česky Ausgabe Januar 2007 January 2007 edition...
- Page 8 Alle Rechte vorbehalten, insbesondere für den Fall der Patenterteilung oder GM-Eintragung. Liefermöglichkeiten und technische Änderungen vorbehalten. Keine Haftung für Inhalt und Druckfehler. Copyright © Fujitsu Siemens Computers GmbH 2005 VESA, DDC and DPMS are registered trademarks of Video Electronics Standards Association.
-
Page 9: Table Of Contents
Contents Introduction............................1 Additional information........................1 Important notes............................. 2 Safety notes..........................2 Power cable..........................3 Transport ............................3 Cleaning ............................4 CE marking........................... 4 Checking the contents of the consignment................... 4 Connecting the monitor ........................5 Operation of the monitor........................6 Troubleshooting............................ -
Page 11: Introduction
Introduction This manual contains important information for correct set-up of your LCD monitor. A screen controller with VGA interface is required to control the LCD monitor. The monitor processes the data supplied to it by the screen controller. The screen controller/the associated driver software is responsible for setting the modes (resolution and refresh rate). -
Page 12: Important Notes
LCD monitor Important notes In this chapter you will find information regarding safety which is essential to take note of with your monitor. Safety notes This device complies with the relevant safety regulations for data processing equipment, including electronic office machines for use in an office environment. If you have any questions, contact your sales outlet or our help desk. -
Page 13: Power Cable
LCD monitor ● The monitor must be disposed of in accordance with the local regulations for disposal of special waste. The screen background lighting contains mercury. You must observe the applicable handling and disposal safety regulations for fluorescent tubes. ● Only qualified technicians should repair the device. -
Page 14: Cleaning
LCD monitor Cleaning ● Always pull out the power plug before you clean the monitor. ● Do not clean any interior parts yourself, leave this job to a service technician. ● Do not use any cleaning agents that contain abrasives or may corrode plastic. ●... -
Page 15: Connecting The Monitor
LCD monitor Connecting the monitor Please take note of the safety information in the "Important notes" chapter. CE conformance and optimum picture quality are guaranteed only if you use the data cable supplied. Do not cover the ventilation openings of the monitor. The computer power plug must be pulled out! ►... -
Page 16: Operation Of The Monitor
LCD monitor Plug the power connector of the computer into a properly grounded mains outlet. When you start working with your monitor for the first time you should install the appropriate graphics drivers for your application software. Details of how to do this are provided in the documentation on your screen controller/the associated driver software. -
Page 17: Troubleshooting
LCD monitor ► :Choose the next OSD MENU page. ► AUTO :Act as AUTO adjustment hot key when OSD is not displayed. Troubleshooting Should an error occur, first check the following points. If the distortion is still not eliminated, the monitor should, if possible, be checked on another computer. - Page 18 LCD monitor Having this problem? Check the following points: Picture is shaking ► Check whether the data cable for the monitor is correctly attached to the monitor port on the computer. ► Carry out the auto-adjustment of the monitor (with the AUTO button - if present - or via the OSD menu).
-
Page 19: Assembling The Monitor Base
LCD monitor Assembling the monitor base The display surface of the LCD monitor is sensitive to pressure and scratches. Therefore, lay the monitor on a soft surface when mounting or removing the monitor base. edition 1...
