58_0497_02.fm Page 2 Tuesday, July 10, 2001 2:18 PM
ASSEMBLING THE ANTENNA COVER KIT
Note: This section is applicable only to antenna cover model
FMW42RC1 only; the FMW42CR2 model is pre-assembled.
The radio antenna cover kit consists of the following parts:
Plastic Hood
Plastic Base
Two screws (M2.5 x 8 mm long, finish:black zinc)
One tapping screw (Model FMW42RC1 only)
To assemble the radio antenna cover, place the hood atop the
base as illustrated in Figure 1. Make sure the positioning tab
is on the inside of the hood. Secure the two pieces with the
tapping screw by inserting it through the hole in the base
into the standoff inside the hood.
Standoff
Base

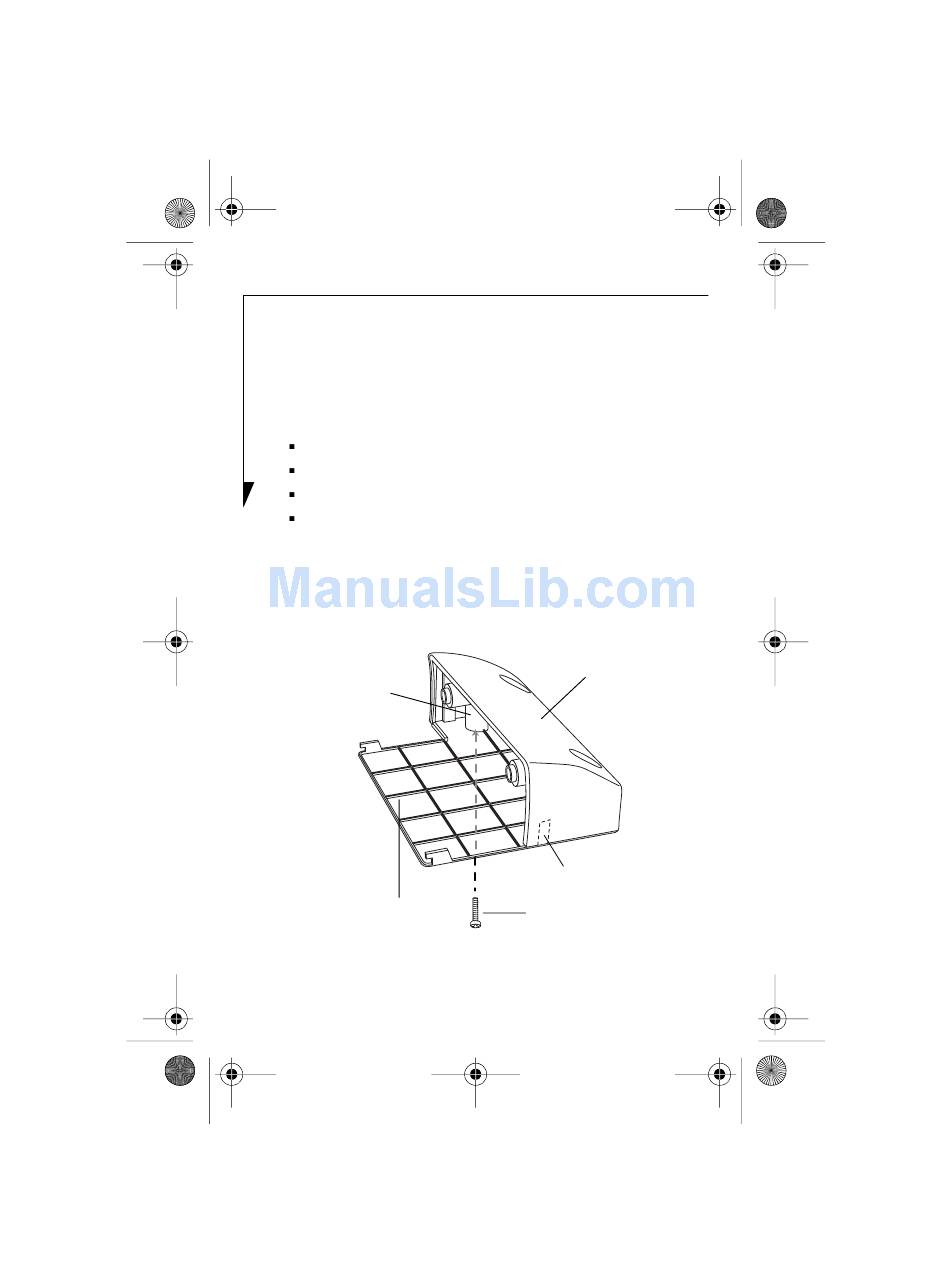

Figure 1. Assembling the Radio Antenna Cover
2
Hood
Positioning
Tab (inside)
Tapping Screw
