GE PZS25KSESS Dimensions And Installation Information page 2

PZS25KSE
GE Profile Series 24.6 Cu. Ft. Counter-Depth Side-By-Side Refrigerator
™

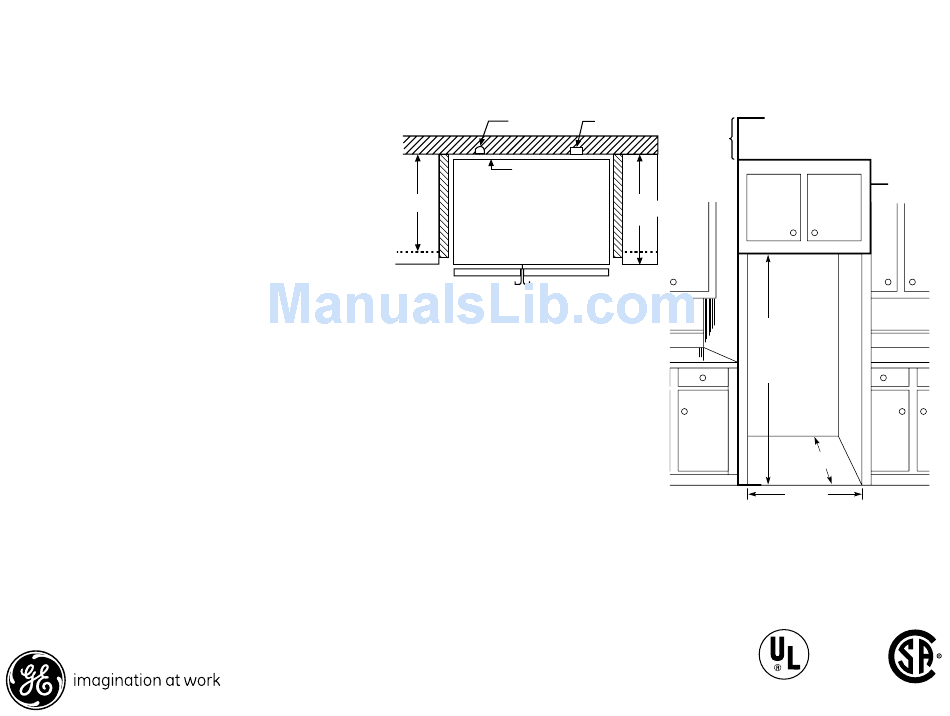

Rough-In Dimensions and Installation Information (in inches)
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner's manual)
* The rough-in dimensions of 70" for 23 cu. ft. models and 72-1/2"
for 25 cu. ft. models are minimum and measured from the
finished floor to top of opening (or the underside of the overhead
cabinets). For Models with Trim Kit: If frameless style cabinets
are planned for above the refrigerator, you may need to consider
adding a maximum of 1/4" (70-1/4") to height of opening for 23
cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow for
additional clearance between the cabinet doors and the top of
refrigerator trim when the cabinet doors are in open position.
24"
Cabinet
For answers to your Monogram or GE appliance
®
questions, visit our website at geappliances.com or
call GE Answer Center service, 800.626.2000.
®
FOR 24 CUBIC FOOT MODELS
Water Electrical
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
25"
Counter
Top
Fig 2A eps
*The rough-in dimensions of 70" for 23 cu. ft. models and 72-1/2" for 25 cu. ft.
models are minimum and measured from the finished floor to top of opening
(or the underside of the overhead cabinets). For Models with Trim Kit:
If frameless style cabinets are planned for above the refridgerator, you may
need to consider adding a maximum of 1/4" (70-1/4") to height of opening
for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow additional
clearance between cabinet doors and top of refridgerator trim when cabinet
doors are in open position.
†Model PSDW3YGX is 71-3/4".
Collar Trim In. w/ceiling
8' Ceiling Water
12"
Soffit
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
70"*
23 cu. ft. models
72-1/2"*
25 cu. ft. models
24-1/2"
36-1/8"
Listed by
Underwriters
Laboratories
Specification Revised 9/13
Electrical
13" to 14"
Cabinet
25"
Counter
Top
Trim
210322
