Fujitsu PRIMERGY TX100 S1 Specifications

System configurator and order-information guide
Hide thumbs

Advertisement

PRIMERGY TX100 S1
System configurator and order-information guide
July 2010
Contents
Instructions
Configuration diagram
Configurator
0 System software
I
Basic unit
II
IV Graphics
V
VIII Communikation/Network
X
PRIMERGY Server

Advertisement

loading

  Summary of Contents for Fujitsu PRIMERGY TX100 S1

  • Page 1: Table Of Contents

    PRIMERGY TX100 S1 System configurator and order-information guide July 2010 Contents Instructions Configuration diagram Configurator 0 System software Basic unit Processor III Memory IV Graphics Accessible drives VI RAID Controller VII Hard disk drives VIII Communikation/Network IX Miscellaneous Country specific power cords...
  • Page 2 This document contains basic product and configuration information that will enable you to configure your system via PC-/ System-Architect. Only these tools will ensure a fast and proper configuration of your PRIMERGY server or your complete PRIMERGY Rack system. You can configure your individual PRIMERGY server in order to adjust your specific requirements.
  • Page 3: Processor

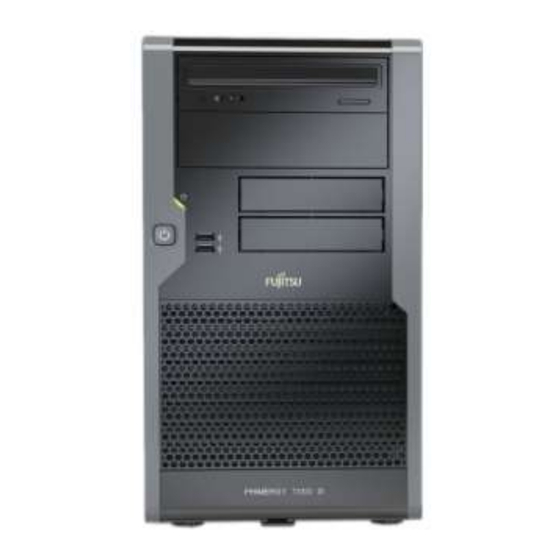

    Configuration diagram PRIMERGY TX100 S1 FRONT VIEW Standard Power supply 5.25" x 1.6" CD / DVD drive 5.25"x1.6" Accessible drives (V) Hard disks ( VI ) 2 or 4 HDD Bays depending on Base unit. SATA - 3.5"x1" SATA - 3.5"x1"...
  • Page 4 You'll find single software configurators and release lists (OS-matrix / system management / security) under following addresses: for internal users: for partners: Continue with PRIMERGY HW configurator Fujitsu Technology Solutions x86 PRIMERGY Server System configurator and order-information guide PRIMERGY TX100 S1 without OEM-Software for PRIMERGY Server...
  • Page 5 You'll find single software configurators and release lists (OS-matrix / system management / security) under following addresses: for internal users: for partners: Continue with PRIMERGY HW configurator Fujitsu Technology Solutions x86 PRIMERGY Server System configurator and order-information guide PRIMERGY TX100 S1 without OEM-Software for PRIMERGY Server...
  • Page 6 1x VGA (15 pins) 10x USB 2.0 ( 2x frontside, 6x on rearside, 2x released internal USB Interfaces for backup devices) 1x LAN RJ45 Fujitsu Technology Solutions x86 PRIMERGY Server System configurator and order-information guide PRIMERGY TX100 S1 Status 2010-06-30...
  • Page 7 S26361-F3436-E4 no TPM Disable function for Trusted Platform Use according to import restrictions max. 1x per system Fujitsu Technology Solutions x86 PRIMERGY Server System configurator and order-information guide PRIMERGY TX100 S1 S26361-K1326-V121 SATA basic unit Floorstand without CPU and Memory...
  • Page 8 Dual head + fully 3-D supported for Windows OS not supported for Linux OS (native) full height bracket max. 1x per system Fujitsu Technology Solutions x86 PRIMERGY Server System configurator and order-information guide PRIMERGY TX100 S1 S26361-F3582-E520 S26361-F3582-E540 S26361-F3582-E630...
  • Page 9 1.6 x 5.25", black bezel max. 1x per system Fujitsu Technology Solutions x86 PRIMERGY Server System configurator and order-information guide There are 2 drive bays (2x 5,25") for accessible drives. While stock lasts a FDD may be used in Projects only.
  • Page 10: Raid Controller

    S26361-F3334-E250 HD 250GB 7.2krpm 3.5" 7200rpm,<9.0 ms, 8MB Cache BC-SATA 3Gb/s non hot plug max. 4x per system Fujitsu Technology Solutions x86 PRIMERGY Server System configurator and order-information guide S26361-F3334-E500 S26361-F3334-E750 HD 500GB 7.2krpm 3.5" HD 750GB 7.2krpm 3.5" 7200rpm,<9.0 ms, 8MB Cache 7200rpm,<9.0 ms, 8MB Cache...
  • Page 11 Eth Ctrl 1x1Gbit PCIe Gigabit CT DT Cu Intel® Gigabit CT Desktop Adapter PCIe x1 ext: for RJ45-connector, Cat 5 max. 2x per system Fujitsu Technology Solutions x86 PRIMERGY Server System configurator and order-information guide PRIMERGY TX100 S1 S26361-F3228-E1 (Redwater)
  • Page 12: Miscellaneous

    For other options, refer to SystemArchitect and Pricelist. These options are supplied lose with the shipment. For suitable peripherals for this product, please refer to SystemArcitect. End PRIMERGY TX100 S1 Fujitsu Technology Solutions x86 PRIMERGY Server KBPC SX, standard keyboard USA / international...
  • Page 13: Change Report

    New Order Codes for CPUs E5200 and E7400 2009-08-17 S26361-F2542-E323 Key Lock Option changed to BLACK => new Order Code 2009-06-30 First Release Fujitsu Technology Solutions x86 PRIMERGY Server System configurator and order-information guide PRIMERGY TX100 S1 Status 2010-06-30 13 of 13...
