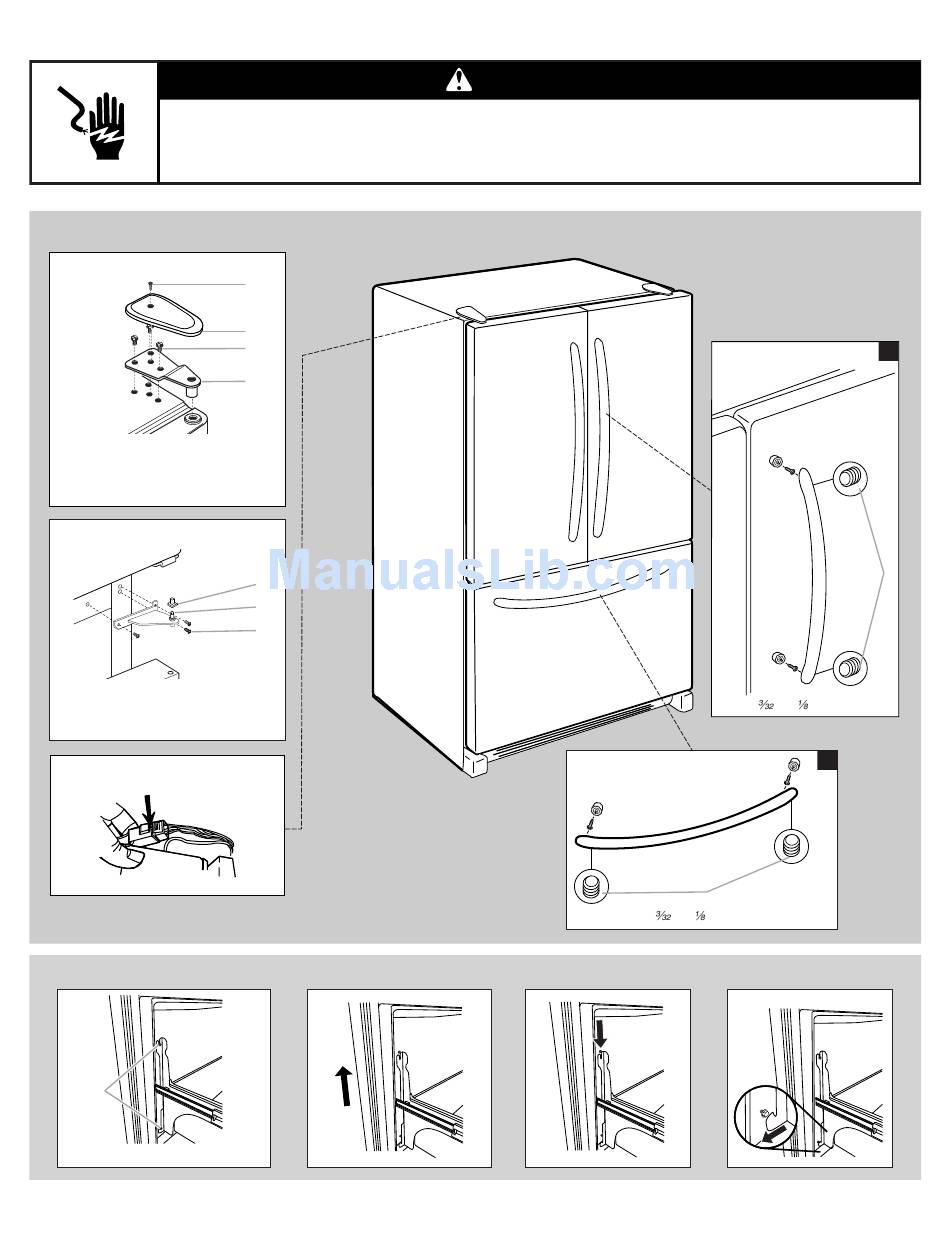

French Doors
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
Top Hinges
A. Hinge Cover Screw
B. Top Hinge Cover
C.
5
/
" Hex Head Hinge Screws
16
D. Top Hinge
Bottom Hinges
A. Hinge Pin Cover
B. Bottom Hinge
C. Hinge Screws
Wiring Plug
Drawer Front Removal
A
A. Loosen 4 Door Bracket Screws
Door Removal and Replacement
A
B
C
D
A
B
C
WARNING
Electrical Shock Hazard
Drawer Front Replacement
A.
" or
" Setscrew
A
A.
" or
" Setscrew
1
A
2
11
