Panasonic ET-PKE2000 - Mounting Kit For Projector Manual

S F
P E C I L
Ceiling mount bracket for high ceilings

Description

This ceiling mount bracket is to be used when mounting home cinema projectors to the ceiling.

Specifications

Vertical correction angle:
Horizontal slant correction angle:
Horizontal turn correction angle:
Dimensions (W x H x D):
Weight:

Parts

Attachment plate
Projector mount bracket . . . . . . . . . . . . . . . . . . 1
Adjuster pole A
Adjuster pole B
Angle adjuster A . . . . . . . . . . . . . . . . . . . . . . . . 1
Angle adjuster B
Safety fitting A . . . . . . . . . . . . . . . . . . . . . . . . . 1
C a u t i o n :
• All mounting work must be done by a qualified technician.
• Ensure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions carefully before starting the mounting procedure.
• When the system is no longer to be used, have a qualified technician promptly remove and dispose of it.
• Do not use a power screwdriver or impact screwdriver to tighten screws. A torque screwdriver or similar tool
should be used.

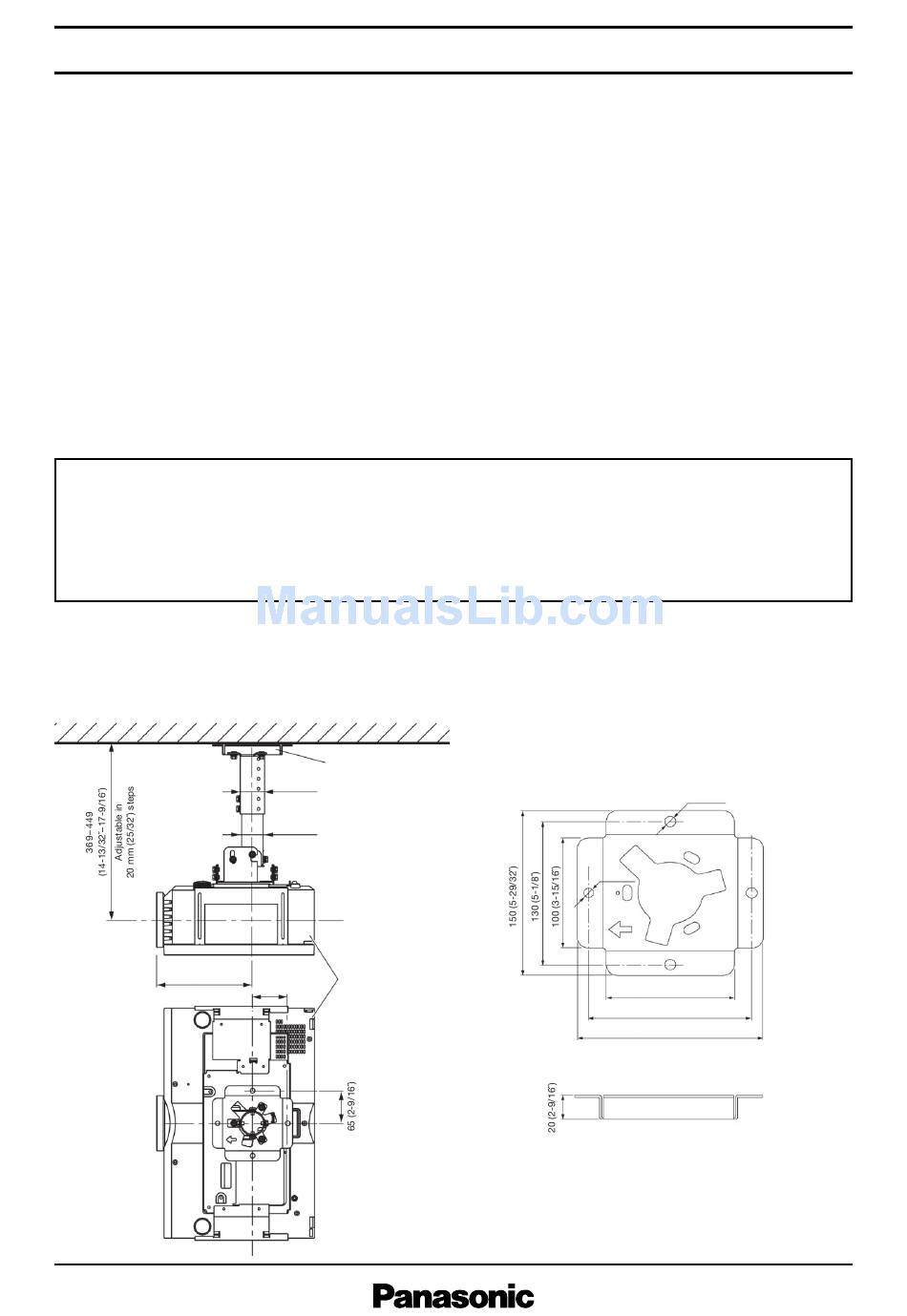

Dimensions

Illustration shows the ET-PKE2000 attached
to the PT-AE2000.
191
(7-1/16˝)
As of September 2007
E
+5°, -20°
±10°
±5°
468 x 418 – 498 x 195 mm
(18-7/16˝ x 16-16/32˝–19-19/32˝ x 7-11/16˝)
3.0 kg (6.6 lbs)
Weights and dimensions shown are approximate. Specifications subject to change without notice.
. . . . . . . . . . . . . . . . . . . . . . . 1
. . . . . . . . . . . . . . . . . . . . . . . . 1
. . . . . . . . . . . . . . . . . . . . . . . . 1
. . . . . . . . . . . . . . . . . . . . . . . 1
Attachement
plate
Ø49
(1-15/16˝)
Ø43
(1-11/16˝)
70
PT-AE2000
(2-3/4˝)
ET-PKE2000
Safety fitting B . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety fitting C . . . . . . . . . . . . . . . . . . . . . . . . . 1
Washer-fitted hexagonal bolts (M6 x 12) . . . . 19
Washer-fitted screws (M4 x 10)
Wire rope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Flat wire clip . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Clamp tube . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Attachment plate
Ø8.5
(11/32˝)
110 (4-11/32˝)
140 (5-1/2˝)
160 (6-5/16˝)
NOTE: This illustration is not drawn to scale.
. . . . . . . . . . . 10
Ø9.5 (3/8˝)
unit : mm (inch)
< 1 >
