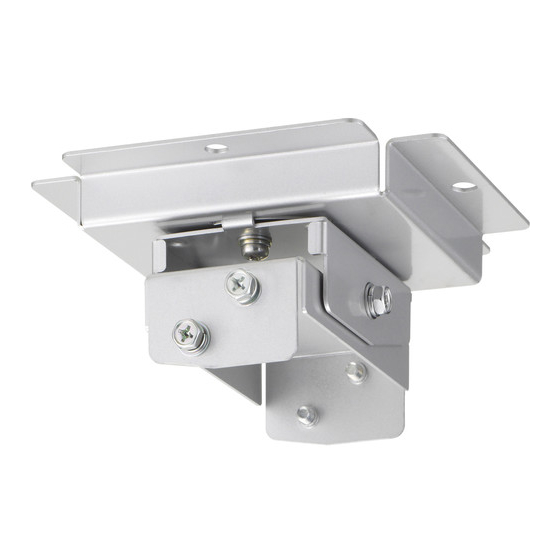

* The figure above shows a combination of this product and the separately sold ceiling mount bracket (for low
ceilings) ET-PKL100S.
Thank you for purchasing this Panasonic Product.
To customers
J
The "Installation Instructions" is intended for use by installation personnel. Be sure to employ certified
personnel to perform the installation. After installation, have the installation personnel return this "Installation
Instructions" to you, and save it for future use. When moving or removing the projector, give this "Installation
Instructions" to the installation personnel and have them perform the procedure.
To installation personnel
J
Carefully read the "Installation Instructions" and install this product correctly and safely.
Be sure to read through the section entitled "Read this first!" (page 3) before proceeding with the installation.
After installation, return this "Installation Instructions" to the customer.
Installation Instructions
Model No.
Projector Mount Bracket
ET-PKL430B
ENGLISH
TQZJ602-3
Advertisement
Table of Contents
Related Manuals for Panasonic ET-PKL430B ET-PKL100S
Summary of Contents for Panasonic ET-PKL430B ET-PKL100S
- Page 1 * The figure above shows a combination of this product and the separately sold ceiling mount bracket (for low ceilings) ET-PKL100S. Thank you for purchasing this Panasonic Product. To customers The “Installation Instructions” is intended for use by installation personnel. Be sure to employ certified personnel to perform the installation.
-
Page 2: Table Of Contents
Contents Read this first! ....................3 Product description ................... 4 Standard installation dimensions ..............5 Installation ......................7 Setting up the screen ......................7 Screws tightening torques ....................7 Installing the bracket to the projector .................. 7 Attaching the projector drop-prevention kit ................. 8 Specifications .................... -
Page 3: Read This First
Electric shocks may result from contact with any metal objects inside the ceiling. r Panasonic Connect Co., Ltd. takes no responsibility for any accident or damage caused by the installation of the ceiling mount bracket using methods that are not described or methods that do not use the parts specified in these Installation Instructions. -
Page 4: Product Description
Product description This is a projector mount bracket for installing projectors. ■ Applicable ceiling mount brackets ET-PKL100S (for low ceilings) / ET-PKL100H (for high ceilings) ■ Structural components Parts name Form (number of parts) Applications This is used to install the projector Projector mount itself. -
Page 5: Standard Installation Dimensions
Standard installation dimensions The dimensional relationship between the screen and projection is shown below. Establish the dimensions after assessing the area possible for installation. ■ Dimensional relationship diagram <When using the ceiling mount bracket ET-PKL100S (for low ceilings)> * The thickness of the attachment plate is included. - Page 6 Standard installation dimensions (continued) Note z This illustration assumes that the projector will be installed so that the projected image fills the screen and prop- erly aligned with it. z This drawing is not in exact scale. Height of the projection area Projection distance Distance from the center of lens to the image Width of the projection area...
-
Page 7: Installation
Installation After checking the height, width and structure of the installation location while referring to the “Dimensional rela- tionship diagram” in the “Standard installation dimensions” (pages 5-6) and “Dimensional relationship” in the Ap- pendix, determine the appropriate positions for setting up the screen and installing the projector. Setting up the screen Set up the screen according to the specified method in a position which takes into account the projection distance and angle and the type of screen being used. -
Page 8: Attaching The Projector Drop-Prevention Kit
Installation (continued) Attaching the projector drop-prevention kit Install the wire rope to the projector (sold separately). As shown in the figure on the left, secure the one end (round crimping terminal) of the supplied wire rope to Wire rope the A on the projector by using the 1 supplied captive washer screw (M4 x 12). -
Page 9: Specifications
Specifications Range of Horizontal tilt ± 10 ° adjustment correction angle* Width: 300 mm (11-13/16") External dimensions Height: 55 mm (2-5/32") Depth: 242 mm (9-17/32") Weight Approx. 0.8 kg (1.76 lbs) *1 When using the ceiling mount bracket ET-PKL100S (for low ceilings) or the ceiling mount bracket ET-PKL100H (for high ceilings). - Page 10 Panasonic Connect Co., Ltd. SS0514JZ3042 -ST Web Site : https://panasonic.net/cns/projector/ Printed in Japan © Panasonic Connect Co., Ltd. 2022...
