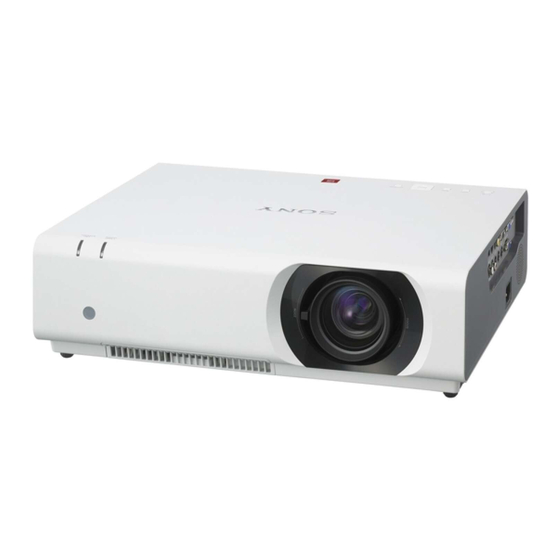

Sony VPL-CW275 Operating Instructions Manual

User manual (operating instructions - vpl-cx275 / vpl-cw275)
Hide thumbs Also See for VPL-CW275:
Table of Contents

Advertisement

Quick Links

See also: Quick Reference Manual
Data
Projector

Operating Instructions

Before operating the unit, please read this manual and supplied Quick Reference Manual
thoroughly and retain it for future reference.
VPL-CX275
VPL-CW275
Not all models are available in all countries and area. Please check
with your local Sony Authorized Dealer.
© 2012 Sony Corporation
4-446-956-11 (1)

Advertisement

Table of Contents
loading

Related Manuals for Sony VPL-CW275

Summary of Contents for Sony VPL-CW275

  • Page 1: Operating Instructions

    Before operating the unit, please read this manual and supplied Quick Reference Manual thoroughly and retain it for future reference. VPL-CX275 VPL-CW275 Not all models are available in all countries and area. Please check with your local Sony Authorized Dealer. © 2012 Sony Corporation...

  • Page 2: Table Of Contents

    Table of Contents Overview Network Location and Function of Controls ..3 Using Network Features ....30 Main unit ........3 Displaying the Control Window of the Projector with a Web Connector Panel ......4 Browser ........30 Remote Commander and Control Confirming the Information Panel ..........

  • Page 3: Location And Function Of Controls

    B Overview Location and Function of Controls Main unit i LAMP/COVER indicator (page 33) j Control panel (page 5) k Connector panel (page 4) l Remote control detector m Front feet (adjustable) (page 14) n Speaker o Security lock Connects to an optional security cable manufactured by Kensington.

  • Page 4: Connector Panel

    Connector Panel VPL-CX275/VPL-CW275 Input (pages 7, 8) Note This connector outputs the projected image or a INPUT A audio. The image is output as a computer signal Video: RGB/YP input connector input from the RGB input connector (INPUT (RGB/Y PB PR) A/INPUT B) or a video signal input from the Audio: Audio input connector (AUDIO) input connector (INPUT A).

  • Page 5: Remote Commander And Control Panel

    Remote Commander and Control Panel Remote Commander d Adjusting the image (page 12) ASPECT key KEYSTONE key PATTERN key INPUT ECO MODE APA (Auto Pixel Alignment) key MENU RESET Note Use this key when inputting a computer signal via the RGB input connector ENTER (INPUT A/INPUT B).
  • Page 6 For details on ECO Mode settings, see f Setting the energy–saving mode “Lamp Mode” (page 27) and “Standby easily Mode” (page 28) on the INSTALL ECO MODE key SETTING menu and “With No Input” Energy-saving mode can be set easily. (page 24), “With Static Signal”...

  • Page 7: Connecting The Projector

    B Preparation Connecting the Projector Notes • Make sure all the equipment is powered off when connecting the projector. • Use the proper cables for each connection. • Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or cause a malfunction.

  • Page 8: Connecting A Video Equipment

    Connecting a Video equipment Connections with a VHS video deck, DVD player, or BD player are explained for each input signal. S VIDEO IN For connecting video equipment with an S-video output connector. S video cable (not supplied) S video output connector Video equipment Audio output...
  • Page 9 INPUT C For connecting video equipment with an HDMI output connector. HDMI cable HDMI output (not supplied) connector Video equipment Notes • Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them. • The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

  • Page 10: Connecting An External Monitor And Audio Equipment

    Connecting an External Monitor and Audio Equipment OUTPUT Projected images and input audio can be output to display equipment such as a monitor and audio equipment such as speakers with a built-in amplifier. When an audio cable is connected to the audio output connector, no sound will be heard from the built-in speaker. Display equipment Mini D-sub 15-pin RGB input...

  • Page 11: Projecting/Adjusting An Image

    B Projecting/Adjusting an Image Projecting an Image The size of a projected image depends on the distance between the projector and screen. Install the projector so that the projected image fits the screen size. For details on projection distances “Projection Distance and Lens Shift Range” (page 45) and projected image sizes, see Computer Projector...

  • Page 12: Adjusting The Projected Image

    Adjusting the Projected image Focus Size (Zoom) Position (Lens shift) V shift screw Focus ring Zoom lever H shift screw Projecting an Image...
  • Page 13 Adjusting the tilt of the projector by lens shift You can adjust the position of the projected image by turning the screws for lens shift (V shift screw and H shift screw). Lens shift cover 1 Lift up the lower end of the lens shift cover with your finger to remove it.
  • Page 14 Adjusting the tilt of the projector with the front feet (adjustable) You can adjust the height of the projector pushing the side button on this unit. By changing the slope of the projector with front feet (adjustable), you can adjust the position of the projected image.
  • Page 15 When the projected image a trapezoid, tapering to the right or left 1 Press KEYSTONE on the remote 2 Use V/v/B/b to set the value. The higher commander twice or select H Keystone in the setting, the narrower the right part of the INSTALL SETTING menu.
  • Page 16 3 The cursor will disappear if the Example of cursor display: adjustment range limit is reached. You can adjust in all directions. You can adjust only to the left/ right or downwards. Correcting deflection 1-The right/left edges of the image 1 Move the s by using V/v/B/b to select the corner you want to correct.
  • Page 17 3 The cursor will disappear if the Example of cursor display: adjustment range limit is reached. You can adjust in all directions. You can adjust only upwards/ downwards or to the right. Correcting deflection 2-The top/bottom edges of the image 1 Move the s by using V/v/B/b to select the corner you want to correct.

  • Page 18: Turning Off The Power

    3 The cursor will disappear if the Example of cursor display: adjustment range limit is reached. You can adjust in all directions. You can adjust only to the left/ right or downwards. Automatically adjusts Phase, Pitch and Shift of projected image while a signal is input from a computer (APA (Auto Pixel Alignment)) Press APA on the remote commander.

  • Page 19: Using A Menu

    B Adjustments and Settings Using a Menu Using a MENU Note The menu displays used for the explanation below may be different depending on the model you are using. factory preset value, press the RESET Press the MENU key to display the key during setting or adjusting.

  • Page 20: The Picture Setting Menu

    The PICTURE SETTING Menu For adjusting the picture for each input signal. Items Item descriptions Picture Mode Dynamic: Emphasizes the contrast to produce a “dynamic and vivid” picture. Standard: Makes the picture be natural and well balanced. Presentation : Makes the picture bright to suit for a presentation. Adjust Picture...

  • Page 21: The Input Setting Menu

    The INPUT SETTING Menu For adjusting the size, position, and aspect ratio of the projected image for each input signal. Items Item descriptions Adjust Signal Adjusts the image of computer signal. Use this item if the edge of the image is cut and reception is bad.
  • Page 22 Aspect VPL-CX275 *1: If you select “Normal,” the image is projected in the same resolution as the input signal without changing the aspect Input signal Recommended setting value and ratio of the original image. projected image (4:3) (Full1) *2: If you select “Full2,” the image is projected to fit the projected image size, regardless of the aspect ratio of the image.
  • Page 23 VPL-CW275 *1: If you select “Normal,” the image is projected in the same resolution as the input signal without changing the aspect Input signal Recommended setting value and ratio of the original image. projected image *1 *2 *3 (4:3) (Full1) *2: If you select “Full2,”...

  • Page 24: The Set Setting Menu

    The SET SETTING Menu The SET SETTING menu is used for setting various functions of the projector. Items Item descriptions AUTO POWER You can make various power reduction settings. SAVING With No Input Lamp Cutoff: The lamp turns off automatically and power consumption is reduced if no signal is input for 10 minutes.
  • Page 25 Items Item descriptions CC1/CC2/CC3/CC4/Text1/Text2/Text3/Text4: Select the closed CC Display caption service (Captions or Text). Off: Closed caption does not appear. Network Setting IP Address Setup Auto (DHCP): The IP address is assigned automatically from the DHCP server such as a router. Manual: To specify the IP Address manually.

  • Page 26: The Menu Setting Menu

    The MENU SETTING Menu The MENU SETTING menu is used for setting for the operations by using the menu or the Remote Commander. Items Item descriptions Status On: All on-screen statuses are enabled. Off: Turn off the on-screen displays except for the menus, warning and confirmation messages.

  • Page 27: The Install Setting Menu

    The INSTALL SETTING Menu The INSTALL SETTING menu is used for installing the projector. Items Item descriptions Screen Fitting HV Keystone/ Warping: You can choose how to correct image twist. *1*5 V Keystone This is displayed when “HV Keystone” is selected in the “Screen Fitting.” Auto: The Keystone adjustment is done automatically.
  • Page 28 *2: When “High Altitude Mode” is set to “On,” the speed of the fan increases, and the fan noise becomes slightly louder. *3: You will not be able to use the projector if you forget your password. If you call qualified Sony personnel because you have forgotten the password, you will be asked to verify the projector’s serial number and your identity.

  • Page 29: The Information Menu

    The INFORMATION Menu The INFORMATION menu enables you to confirm various information on the projector, such as the total usage hours of a lamp. Items Item descriptions Model Name Displays the model name. Serial No. Displays the serial number. Displays the horizontal frequency of the current input signal. Displays the vertical frequency of the current input signal.

  • Page 30: Using Network Features

    B Network Using Network Features Connection to the network allows you to operate the following features: • Checking the current status of the projector via a Web browser. • Remotely controlling the projector via a Web browser. • Receiving the e-mail report for the projector. •...

  • Page 31: Confirming The Information Regarding The Projector

    Computer You can control the projector from the Note computer on the Control page. If you forget your password, consult with qualified Sony personnel. Setting the location Location: Input information on where the projector is installed. Operation area The functions of the keys shown in the operation area are the same as those of the keys on the supplied Remote Commander.

  • Page 32: Using The E-Mail Report Function

    Send the test mail. Using the e-mail report Check on the Send test mail check box Function then click on [Apply] to send your test mail to the e-mail address you set. Set the e-mail report function on the Mail Report page.

  • Page 33: Indicators

    Flashes in red The projector is in abnormal status. Symptoms are indicated by number of flashes. Address the problem in accordance with the following. If the symptom is shown again, consult with qualified Sony personnel. Flashes twice The internal temperature is unusually high. Check the items below.

  • Page 34: Messages List

    Messages List When any of the messages listed below appears on the projected image, address the problem in accordance with the table below. Message Meaning/Remedy Page High temp.! Lamp off in Check the items below. 3, 39 1 min. • Check to see if nothing is blocking the ventilation holes. •...

  • Page 35: Troubleshooting

    Troubleshooting Before asking to have the projector repaired, try to diagnose the problem, following the instructions below. Symptom Remedy Page The power is not turned Check if the AC power cord is firmly connected. – When the “Panel Key Lock” is set to “On,” you cannot turn on the projector using the ?/1 key on the projector.
  • Page 36 Symptom Remedy Page The image is noisy. Check if the connecting cable is connected to external equipment properly. No sound. Check that the connecting cables between the projector and external video or audio equipment are securely connected. Check if the output setting of connected external audio –...

  • Page 37: Replacing The Lamp

    Do not put your hands into the slot. Notes • If the lamp breaks, contact qualified Sony personnel. Do not replace the lamp yourself. • When removing the lamp, be sure to pull it out straight, by holding the designated location.
  • Page 38 Loosen the 3 screws on the lamp then Reset the lamp timer for notification of pull out the lamp by its grab. the next replacement time. Select “Lamp Timer Reset” on the SET SETTING menu then press the ENTER key. When a message appears, select “Yes”...

  • Page 39: Cleaning The Air Filter

    When a message appears on the projected image, clean the air filter (page 34). If the dust cannot be removed from the air filter even after cleaning, replace the air filter with a new one. For details on a new air filter, consult with qualified Sony personnel. Caution If you neglect to clean the air filter, dust may accumulate, clogging it.

  • Page 40: Specifications

    Specifications Item Description Model VPL-CX275/VPL-CW275 Projection system 3 LCD system Display device Effective display VPL-CX275: 0.79-inch (20.1 mm), 3 plate, Aspect ratio size VPL-CW275: 0.75-inch (19.1 mm), 3 plate, Aspect ratio 16:10 Effective picture VPL-CX275: 2,359,296 pixels (1024 × 768 pixels, 3 elements plate panels) VPL-CW275: 3,072,000 pixels (1280 ×...
  • Page 41 Item Description Model VPL-CX275/VPL-CW275 INPUT OUTPUT INPUT A RGB/YP input connector: Mini D-sub 15 pin (Computer/video) female, G with sync/Y: 1 Vp-p ± 2 dB, sync negative, 75 ohms terminated, RGB/P : 0.7 Vp-p ± 2 dB, 75 ohms terminated, Sync signal: TTL level high impedance, positive/negative Audio input connector: Stereo mini jack, rated input 500 mVrms, input impedance more than 47 kohms...
  • Page 42 Design and specifications of the unit, including the optional accessories, are subject to change without notice. Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO,...
  • Page 43 Pin assignment RGB input connector (Mini D-sub 15-pin, female) Video input Power supply (red) R input for DDC Video input (green) G Video input (blue) B DDC/SDA RESERVE Horizontal sync signal GND (R) Vertical sync signal GND (G) DDC/SCL GND (B) RS-232C connector (D-Sub 9-pin, female) RXDA...
  • Page 44 Input connector Acceptable Input Signals fH [kHz]/ Resolution fV [Hz] HDMI Computer signal 1440 × 900 55.9/60 Input connector fH [kHz]/ Resolution 1280 × 800 49.7/60 fV [Hz] HDMI 1600 × 1200 75/60 640 × 350 31.5/70 1920 × 1200 74.0/59.95 37.9/85 640 ×...

  • Page 45: Projection Distance And Lens Shift Range

    Caution Never mount the projector on the ceiling or move it by yourself. Be sure to consult with qualified Sony personnel (charged). Floor Installation/Ceiling Installation (Top side parallel to ceiling) Projection distance L...
  • Page 46 The lens shift range represents the distance in percent (%) by which the lens can be shifted from the initial position of the projected image, with full width or full height of the projected image regarded as 100%. Projected image Lens shift range Center of the Center of the...
  • Page 47 Expression#1 Unit: m (inches) Projection Distance L (min.) Projection Distance L (max.) L=0.027010 × D – 0.0490 L=0.039363 × D – 0.0482 (L=1.063369 × D – 1.9300) (L=1.549709 × D – 1.8982) Expression#2 Height H from lens center to bottom of screen H=-0.00165 ×...

  • Page 48: Lens Shift Range

    Lens shift range VPL-CX275 VPL-CW275 3.3% 5.0% 2.5% 2.5% 3.0% 3.0% 3.3% 5.0% =3.3[%] =5.0[%] =2.5[%] =3.0[%] Projection Distance and Lens Shift Range...

  • Page 49: Dimensions

    Dimensions Front Center of the lens 406.0 (15 104.5 (4 Unit: mm (inches) Side 330.5 (13) Unit: mm (inches) Dimensions...
  • Page 50 Bottom Edge of the lens Center of the lens 19.0 ( 368.0 (14 45.3 (1 13.9 ( 102.7 (4 46.1 (1 199.5 (7 88.4 (3 203.1 (8) Unit: mm (inches) Dimensions...

  • Page 51: Index

    Focus ring ..........3 Index Freeze ............5 Front feet (adjustable) ......3, 14 fV ............29 AC IN ............4 Acceptable input signal ......44 Gamma Mode ......... 20 Adjust Signal ...........21 Adjusting lens shift ........13 Air filter ...........39 H Size ............21 Air filter cover/Ventilation holes High Altitude Mode ........
  • Page 52 ON/STANDBY indicator ....3, 33 Warping ..........15, 27 Output ............4 With No Input ..........24 Over Scan ..........21 With Static Signal ........24 Panel Key Lock ........24 Zoom ............12 Picture mode ........... 20 Zoom lever ..........3 Picture muting ........... 5 PICTURE SETTING menu ....
  • Page 53 About Trademarks • Adobe Acrobat is a trademark of Adobe Systems Incorporated. • Kensington is a registered trademark of Kensington Technology Group. • The terms HDMI and HDMI High- Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
  • Page 54 Sony Corporation...
