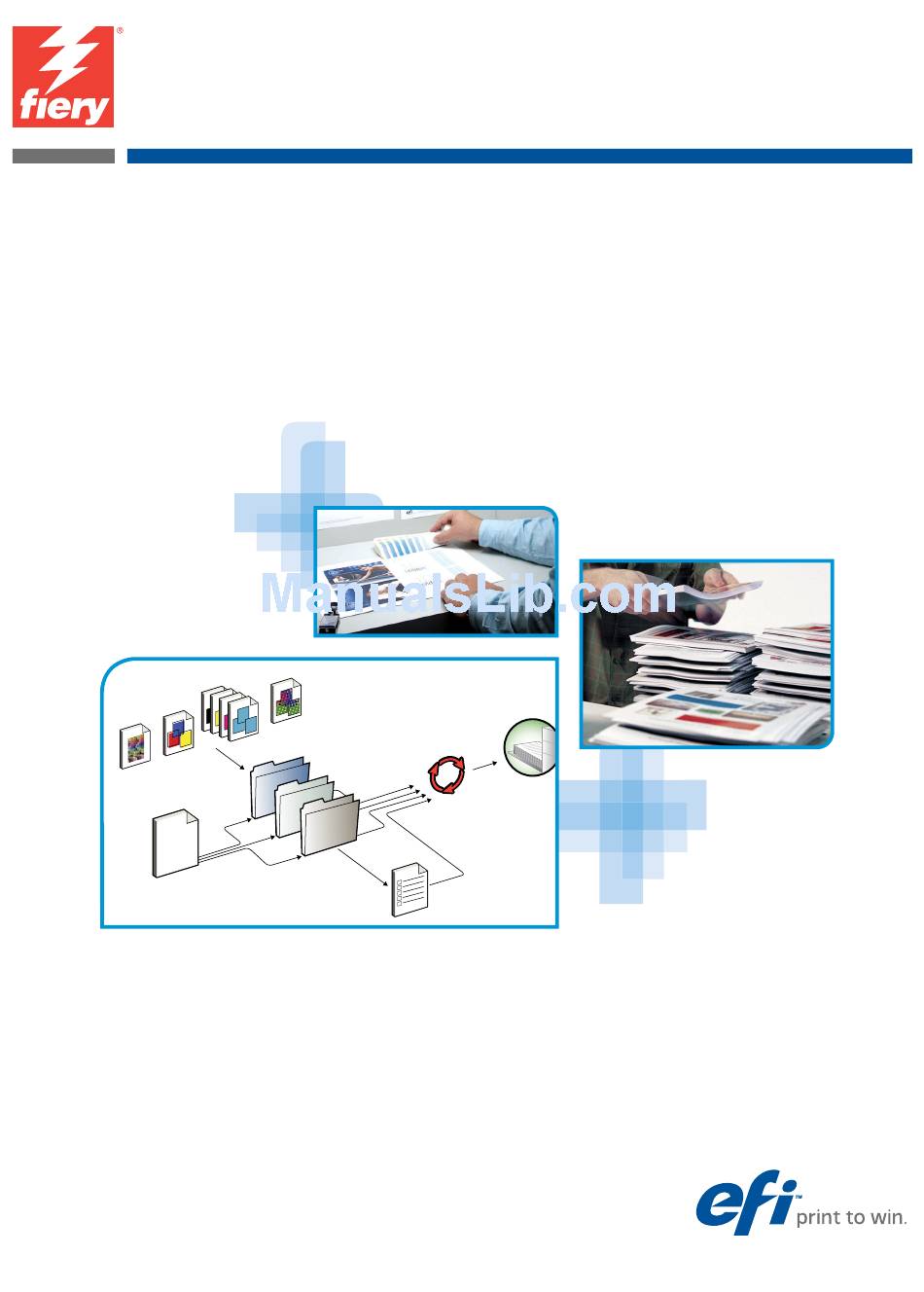

- Page 1 Fiery ® E100 Color Server Welcome...
- Page 2 © 2011 Electronics For Imaging, Inc. The information in this publication is covered under Legal Notices for this product. 45098226 27 June 2011...
-
Page 3: Terminology And Conventions
ELCOME ELCOME This Welcome document provides system requirements and an overview of how to set up the Fiery E100 Color Server so that you can begin printing. It describes the initial tasks you must perform and points you to sections in the user documentation where the procedures are described in detail. -
Page 4: About The Documentation
ELCOME About the documentation This document is part of a set provided to users and system administrators of the E100 on the User Documentation CD, in PDF (Portable Document Format). These files can be viewed online from your computer or printed using Adobe Reader. When viewed online, these files contain links and cross-references that allow you to quickly and easily locate needed information. -
Page 5: About & Help
ELCOME Installing user documentation You can install user documentation directly from the User Documentation CD. You can view user documentation from the CD or copy the language folder that you want to your desktop. If you copy the files to your computer, keep all the files in the language folder. Do not rename the files, or the cross-reference links will not work properly. - Page 6 ELCOME ASIC TEPS TO RINT The following section includes a basic workflow for setting up your E100 in order to print documents. It takes you from configuring Setup to installing printer drivers to print a job. Detailed instructions for all of these procedures are found in other documents in the documentation set.
- Page 7 ELCOME Step 1 Print a Configuration page from the copier touch panel Print the Configuration page and note the available Setup options. You will define the E100 name and IP address in “Step 2” on page 8. When you perform E100 Setup and install the printer driver, you will need to reference this information.
- Page 8 ELCOME Step 2 Set up the E100 1 Press the Application button on the copier. 2 On the copier touch panel, press Fiery. 3 Make sure that the E100 is Idle. If Printing or RIPping appears, the E100 is processing, and you must wait until the system finishes and reaches Idle.
- Page 9 ELCOME Step 3 Install PostScript printer drivers on user computers for TCP/IP printing From a user’s Windows XP computer: 1 Click Start and choose Printer and Faxes. 2 Click Add a printer. 3 Click Next. 4 Select “Local printer attached to this computer” and click Next. 5 Select Create a new port, choose Standard TCP/IP Port, and then click Next.
- Page 10 ELCOME 7 Type the IP address or the E100 DNS name and click Next. 8 Make sure that Generic Network Card is selected as Standard for Device Type and click Next. 9 Click Finish. 10 Click Have Disk in the dialog box displaying lists of manufacturers and printers. 11 Insert the User Software DVD into your computer.
-
Page 11: Installed Options
ELCOME Step 4 Configure the printer driver to include E100 and copier- installed options From a user’s Windows XP computer: 1 Click Start and choose Printers and Faxes. 2 In the Printers window, select the E100 printer driver icon. 3 Choose Properties from the File menu. 4 Click the Installable Options tab. -
Page 12: Print A Job
ELCOME Step 5 Print a job From a user’s Windows XP computer: 1 From your application, choose Print from the File menu. 2 Select the E100 printer driver and click Properties. 3 Specify E100 job options, such as Copies and finishing options, and then click OK. 4 Click OK again. - Page 13 ELCOME System requirements for user computers and mobile devices To install the E100 user software on a Windows or Mac OS computer, the computer must be equipped with a built-in or external DVD-ROM drive. The following table lists the minimum system requirements. Minimum requirements for Windows Mac OS...
- Page 14 ELCOME Minimum requirements for Windows Mac OS WebTools Java-enabled Web browser: • Mac OS X: Safari v5.0, Firefox v3.5 • Windows: Internet Explorer 6, 7, and 8, Firefox v3.5 Frequent Java updates may affect Configure. Because support cannot be guaranteed for all versions, use the version specified for best results.
-
Page 15: Starting, Shutting Down, Rebooting, And Restarting The E100
ELCOME Minimum requirements for Mobile device Direct Mobile Printing Direct Mobile Printing supports the following Apple iOS 4.2 or later mobile devices with print functionality: • iPad • iPhone (3GS, 4G) • iPod touch (3rd generation or later) Starting, shutting down, rebooting, and restarting the E100 This section describes how to start, shut down, reboot, and restart the E100 when necessary.
